BCHistogramFitter Class Reference

A class for fitting histograms with functions. More...

#include <BCHistogramFitter.h>

Inheritance diagram for BCHistogramFitter:
Inheritance graph
[legend]

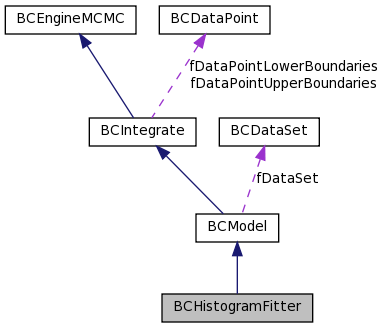

Collaboration diagram for BCHistogramFitter:
Collaboration graph
[legend]

List of all members.

Public Member Functions

Constructors and destructors

 BCHistogramFitter ()
 BCHistogramFitter (TH1D *hist, TF1 *func)
 ~BCHistogramFitter ()
Member functions (get)

TH1D * GetHistogram ()
TH1D * GetHistogramExpected ()
TF1 * GetFitFunction ()
TGraph * GetErrorBand ()
TGraph * GetGraphFitFunction ()
Member functions (set)

int SetHistogram (TH1D *hist)
int SetHistogramExpected (const std::vector< double > &parameters)
int SetFitFunction (TF1 *func)
void SetFlagIntegration (bool flag)
Member functions (miscellaneous methods)

virtual double LogAPrioriProbability (std::vector< double > parameters)
virtual double LogLikelihood (std::vector< double > parameters)
double FitFunction (std::vector< double > x, std::vector< double > parameters)
int Fit ()
int Fit (TH1D *hist, TF1 *func)
void DrawFit (const char *options="", bool flaglegend=false)
int CalculatePValueFast (std::vector< double > par, double &pvalue, int nIterations=100000)
int CalculatePValueLikelihood (std::vector< double > par, double &pvalue)
int CalculatePValueLeastSquares (std::vector< double > par, double &pvalue, bool weightExpect=true)
int CalculatePValueKolmogorov (std::vector< double > par, double &pvalue)
double CDF (const std::vector< double > &parameters, int index, bool lower=false)

Private Attributes

TGraph * fErrorBand
TF1 * fFitFunction
bool fFlagIntegration
TGraph * fGraphFitFunction
TH1D * fHistogram
TH1D * fHistogramExpected

Detailed Description

A class for fitting histograms with functions.

Author:
Daniel Kollar
Kevin Kröninger
Version:
1.0
Date:
11.2008 This class allows fitting of a TH1D histogram using a TF1 function.

Definition at line 34 of file BCHistogramFitter.h.

Constructor & Destructor Documentation

BCHistogramFitter::BCHistogramFitter (  )

The default constructor.

Definition at line 30 of file BCHistogramFitter.cxx.

                                     :
   BCModel("HistogramFitter")
{
   fHistogram = 0;
   fFitFunction = 0;

   // set default options and values
   this -> MCMCSetNIterationsRun(2000);
   this -> SetFillErrorBand();
   fFlagIntegration = true;
   flag_discrete = true;
}

BCHistogramFitter::BCHistogramFitter ( TH1D *  hist,
TF1 *  func
)

A constructor.

Parameters:
hist The histogram (TH1D).
func The fit function.

Definition at line 45 of file BCHistogramFitter.cxx.

                                                            :
   BCModel("HistogramFitter")
{
   fHistogram = 0;
   fFitFunction = 0;

   this -> SetHistogram(hist);
   this -> SetFitFunction(func);

   this -> MCMCSetNIterationsRun(2000);
   this -> SetFillErrorBand();
   fFlagIntegration = true;
   flag_discrete = true;

   fHistogramExpected = 0;
}

BCHistogramFitter::~BCHistogramFitter (  )

The default destructor.

Definition at line 218 of file BCHistogramFitter.cxx.

{
   delete fHistogramExpected;
}

Member Function Documentation

int BCHistogramFitter::CalculatePValueFast ( std::vector< double >  par,
double &  pvalue,
int  nIterations = 100000
)

Calculate the p-value using fast-MCMC.

Parameters:
par A set of parameter values
pvalue The pvalue
nIterations number of pseudo experiments generated by the Markov chain
Returns:
An error code

Definition at line 415 of file BCHistogramFitter.cxx.

{
   // check size of parameter vector
   if (par.size() != this -> GetNParameters()) {
      BCLog::Out(
            BCLog::warning,
            BCLog::warning,
            "BCHistogramFitter::CalculatePValueFast() : Number of parameters is inconsistent.");
      return 0;
   }

   // check if histogram exists
   if (!fHistogram) {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::CalculatePValueFast() : Histogram not defined.");
      return 0;
   }

   // define temporary variables
   int nbins = fHistogram -> GetNbinsX();

   std::vector<int> histogram;
   std::vector<double> expectation;
   histogram.assign(nbins, 0);
   expectation.assign(nbins, 0);

   double logp = 0;
   double logp_start = 0;
   int counter_pvalue = 0;

   //update the expected number of events for all bins
   this -> SetHistogramExpected(par);

   // define starting distribution as histogram with most likely entries
   for (int ibin = 0; ibin < nbins; ++ibin) {

     // get the number of expected events
     double yexp = fHistogramExpected -> GetBinContent(ibin +1);

     //most likely observed value = int(expected value)
      histogram[ibin] = int(yexp);
      expectation[ibin] = yexp;

      // calculate test statistic (= likelihood of entire histogram) for starting distr.
      logp += BCMath::LogPoisson(double(int(yexp)), yexp);
      //statistic of the observed data set
      logp_start += BCMath::LogPoisson(fHistogram -> GetBinContent(ibin + 1),
            yexp);
   }

   // loop over iterations
   for (int iiter = 0; iiter < nIterations; ++iiter) {
      // loop over bins
      for (int ibin = 0; ibin < nbins; ++ibin) {
         // random step up or down in statistics for this bin
         double ptest = fRandom -> Rndm() - 0.5;

         // increase statistics by 1
         if (ptest > 0) {
            // calculate factor of probability
            double r = expectation.at(ibin) / double(histogram.at(ibin) + 1);

            // walk, or don't (this is the Metropolis part)
            if (fRandom -> Rndm() < r) {
               histogram[ibin] = histogram.at(ibin) + 1;
               logp += log(r);
            }
         }

         // decrease statistics by 1
         else if (ptest <= 0 && histogram[ibin] > 0) {
            // calculate factor of probability
            double r = double(histogram.at(ibin)) / expectation.at(ibin);

            // walk, or don't (this is the Metropolis part)
            if (fRandom -> Rndm() < r) {
               histogram[ibin] = histogram.at(ibin) - 1;
               logp += log(r);
            }
         }
      } // end of looping over bins

      // increase counter
      if (logp < logp_start)
         counter_pvalue++;

   } // end of looping over iterations

   // calculate p-value
   pvalue = double(counter_pvalue) / double(nIterations);

   // no error
   return 1;
}

int BCHistogramFitter::CalculatePValueKolmogorov ( std::vector< double >  par,
double &  pvalue
)

Calculate the p-value using Kolmogorov-Smirnov test. Note that the reference distribution is known only asymptotically. Some explanation is given in http://root.cern.ch/root/htmldoc/TMath.html

Parameters:
par The set of parameter values used in the model, usually the best fit parameters
pvalue The pvalue
Returns:
An error code

Definition at line 590 of file BCHistogramFitter.cxx.

{
   if (!fHistogramExpected || !fHistogram){
      BCLog::OutError("BCHistogramFitter::CalculatePValueKolmogorov: "
            "Please define the reference distribution by calling \n"
            "BCHistogramFitter::SetHistogramExpected() first!");
      return 0;
   }

   //update expected counts with current parameters
   this -> SetHistogramExpected(par);

   //perform the test
   pvalue = fHistogramExpected -> KolmogorovTest(fHistogram);

   fPValue = pvalue;

   // no error
   return 1;
}

int BCHistogramFitter::CalculatePValueLeastSquares ( std::vector< double >  par,
double &  pvalue,
bool  weightExpect = true
)

Calculate the p-value using approximate chi^2 distribution of squared difference for conventional weights. Approximation is valid for bin contents >5 and not as as good for little data as CalculatePValueLikelihood, see eq. (32.13), PDG: Statistics, Monte Carlo, Group Theory. Physics Letters B 667, 316-339(2008).

Parameters:
par The set of parameter values used in the model, usually the best fit parameters
pvalue The pvalue
weight use the variance from the expected counts (true) or the measured counts (false)
Returns:
An error code

Definition at line 551 of file BCHistogramFitter.cxx.

{
   // initialize test statistic chi^2
   double chi2 = 0.0;

   //Calculate expected counts to compare with
   this -> SetHistogramExpected(par);

   for (int ibin = 1; ibin <= fHistogram->GetNbinsX(); ++ibin) {

      // get the number of observed events
      double y = fHistogram -> GetBinContent(ibin);

      // get the number of expected events
      double yexp = fHistogramExpected -> GetBinContent(ibin);

      //convert 1/0.0 into 1 for weighted sum
      double weight;
      if (weightExpect)
         weight = (yexp > 0) ? yexp : 1.0;
      else
         weight = (y > 0) ? y : 1.0;

      // get the contribution from this datapoint
      chi2 += (y - yexp) * (y - yexp) / weight;
   }

   // compute degrees of freedom for Poisson case
   int nDoF = this->GetNDataPoints() - this->GetNParameters();

   // p value from chi^2 distribution, returns zero if logLambda < 0
   fPValueNDoF = TMath::Prob(chi2, nDoF);
   pvalue = fPValueNDoF;

   // no error
   return 1;
}

int BCHistogramFitter::CalculatePValueLikelihood ( std::vector< double >  par,
double &  pvalue
)

Calculate the p-value using approximate chi^2 distribution of scaled likelihood. Approximation is valid for bin contents >5, see eq. (32.12), PDG: Statistics, Monte Carlo, Group Theory. Physics Letters B 667, 316-339(2008).

Parameters:
par The set of parameter values used in the model, usually the best fit parameters
pvalue The pvalue
Returns:
An error code

Definition at line 513 of file BCHistogramFitter.cxx.

{
   // initialize test statistic -2*lambda
   double logLambda = 0.0;

   //Calculate expected counts to compare with
   this -> SetHistogramExpected(par);

   for (int ibin = 1; ibin <= fHistogram->GetNbinsX(); ++ibin) {

      // get the number of observed events
      double y = fHistogram -> GetBinContent(ibin);

      // get the number of expected events
      double yexp = fHistogramExpected -> GetBinContent(ibin);

      // get the contribution from this datapoint
      if (y == 0)
         logLambda += yexp;
      else
         logLambda += yexp - y + y * log(y / yexp);
   }

   // rescale
   logLambda *= 2.0;

   // compute degrees of freedom for Poisson case
   int nDoF = this->GetNDataPoints() - this->GetNParameters();

   //p value from chi^2 distribution, returns zero if logLambda < 0
   fPValueNDoF = TMath::Prob(logLambda, nDoF);
   pvalue = fPValueNDoF;

   // no error
   return 1;
}

double BCHistogramFitter::CDF ( const std::vector< double > &  ,
int  ,
bool  = false
) [virtual]

1dim cumulative distribution function of the probability to get the data f(x_i|param) for a single measurement, assumed to be of identical functional form for all measurements

Parameters:
parameters The parameter values at which point to compute the cdf
index The data point index starting at 0,1...N-1
lower only needed for discrete distributions! Return the CDF for the count one less than actually observed, e.g. in Poisson process, if 3 actually observed, then CDF(2) is returned

Reimplemented from BCModel.

Definition at line 611 of file BCHistogramFitter.cxx.

{

   if (parameters.empty())
      BCLog::OutWarning("BCHistogramFitter::CDF: parameter vector empty!");
   //histogram stores underflow in bin 0, so datapoint 0 is in bin 1
   index++;

   // get the number of observed events (should be integer)
   double yObs = fHistogram -> GetBinContent(index);

   // if(double( (unsigned int)yObs)==yObs)
   //    BCLog::OutWarning(Form(
   //          "BCHistogramFitter::CDF: using bin count %f that  is not an integer!",yObs));

   // get function value of lower bin edge
   double edgeLow = fHistogram -> GetBinLowEdge(index);
   double edgeHigh = edgeLow + fHistogram -> GetBinWidth(index);

   // expectation value of this bin
   double yExp = 0.0;

   // use ROOT's TH1D::Integral method
   if (fFlagIntegration)
      yExp = fFitFunction -> Integral(edgeLow, edgeHigh, &parameters[0]);

   // use linear interpolation
   else {
      double dx = fHistogram -> GetBinWidth(index);
      double fEdgeLow = fFitFunction -> Eval(edgeLow);
      double fEdgeHigh = fFitFunction -> Eval(edgeHigh);
      yExp = fEdgeLow * dx + (fEdgeHigh - fEdgeLow) * dx / 2.;
   }

   // usually Poisson bins do not agree with fixed probability bins
   // so choose where it should belong

   if (lower) {
      if ((int) yObs >= 1)
         return ROOT::Math::poisson_cdf((unsigned int) (yObs - 1), yExp);
      else
         return 0.0;
   }
   // what if yObs as double doesn't reprepsent a whole number? exceptioN?
   if ((double) (unsigned int) yObs != yObs){
      BCLog::OutWarning(Form(
            "BCHistogramFitter::CDF: Histogram values should be integer!\n"
               " Bin %d = %f", index, yObs));

      //convert randomly to integer
      // ex. yObs = 9.785 =>
//      yObs --> 10 with P = 78.5%
//      yObs --> 9  with P = 21.5%
      double U = fRandom -> Rndm() ;
      double yObsLower = (unsigned int)yObs;
      if( U > (yObs - yObsLower) )
         yObs = yObsLower;
      else
         yObs = yObsLower + 1;
   }

// BCLog::OutDebug(Form("yExp= %f yObs= %f par2=%",yExp, yObs,parameters.at(2)));
// BCLog::Out(TString::Format("yExp= %f yObs= %f par2=%",yExp, yObs,parameters.at(2)));

   return ROOT::Math::poisson_cdf((unsigned int)yObs, yExp);
}

void BCHistogramFitter::DrawFit ( const char *  options = "",
bool  flaglegend = false
)

Draw the fit in the current pad.

Definition at line 357 of file BCHistogramFitter.cxx.

{
   if (!fHistogram) {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::DrawFit() : Histogram not defined.");
      return;
   }

   if (!fFitFunction) {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::DrawFit() : Fit function not defined.");
      return;
   }

   if (!fErrorBandXY || fBestFitParameters.empty() ) {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::DrawFit() : Fit not performed yet.");
      return;
   }

   // check wheather options contain "same"
   TString opt = options;
   opt.ToLower();

   // if not same, draw the histogram first to get the axes
   if (!opt.Contains("same"))
      fHistogram -> Draw(opt.Data());

   // draw the error band as central 68% probability interval
   fErrorBand = this -> GetErrorBandGraph(0.16, 0.84);
   fErrorBand -> Draw("f same");

   // now draw the histogram again since it was covered by the band
   fHistogram -> Draw(TString::Format("%ssame", opt.Data()));

   // draw the fit function on top
   fGraphFitFunction
         = this -> GetFitFunctionGraph(this->GetBestFitParameters());
   fGraphFitFunction -> SetLineColor(kRed);
   fGraphFitFunction -> SetLineWidth(2);
   fGraphFitFunction -> Draw("l same");

   // draw legend
   if (flaglegend) {
      TLegend * legend = new TLegend(0.25, 0.75, 0.55, 0.95);
      legend -> SetBorderSize(0);
      legend -> SetFillColor(kWhite);
      legend -> AddEntry(fHistogram, "Data", "L");
      legend -> AddEntry(fGraphFitFunction, "Best fit", "L");
      legend -> AddEntry(fErrorBand, "Error band", "F");
      legend -> Draw();
   }

   gPad -> RedrawAxis();
}

int BCHistogramFitter::Fit (  )  [inline]

Performs the fit.

Returns:
An error code.

Definition at line 150 of file BCHistogramFitter.h.

         { return this -> Fit(fHistogram, fFitFunction); };

int BCHistogramFitter::Fit ( TH1D *  hist,
TF1 *  func
)

Performs the fit.

Parameters:
hist The histogram (TH1D).
func The fit function.
Returns:
An error code.

Definition at line 313 of file BCHistogramFitter.cxx.

{
   // set histogram
   if (hist)
      this -> SetHistogram(hist);
   else {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::Fit() : Histogram not defined.");
      return 0;
   }

   // set function
   if (func)
      this -> SetFitFunction(func);
   else {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::Fit() : Fit function not defined.");
      return 0;
   }

   // perform marginalization
   this -> MarginalizeAll();

   // maximize posterior probability, using the best-fit values close
   // to the global maximum from the MCMC
   this -> FindModeMinuit(this -> GetBestFitParameters(), -1);

   // calculate the p-value using the fast MCMC algorithm
   double pvalue;
   if (this -> CalculatePValueFast(this -> GetBestFitParameters(), pvalue))
      fPValue = pvalue;
   else
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::Fit() : Could not use the fast p-value evaluation.");

   // print summary to screen
   this -> PrintShortFitSummary();

   // no error
   return 1;
}

double BCHistogramFitter::FitFunction ( std::vector< double >  x,
std::vector< double >  parameters
) [virtual]

Plots the histogram

Parameters:
options Options for plotting.
filename Name of the file which the histogram is printed into. The following options are available:
F : plots the fit function on top of the data E0 : plots the fit function and the 68% prob. uncertainty band of the fit function on top of the data E1 : plots the expectation from the fit function and the uncertainty bin-by-bin as error bars. Returns the y-value of the 1-dimensional fit function at an x and for a set of parameters.
x A vector with the x-value.
parameters A set of parameters.

Reimplemented from BCIntegrate.

Definition at line 301 of file BCHistogramFitter.cxx.

{
   // set the parameters of the function
   fFitFunction -> SetParameters(&params[0]);

   return fFitFunction -> Eval(x[0]) * fHistogram -> GetBinWidth(
         fHistogram -> FindBin(x[0]));
}

TGraph* BCHistogramFitter::GetErrorBand (  )  [inline]
Returns:
pointer to the error band

Definition at line 78 of file BCHistogramFitter.h.

         { return fErrorBand; };

TF1* BCHistogramFitter::GetFitFunction (  )  [inline]
Returns:
The fit function

Definition at line 73 of file BCHistogramFitter.h.

         { return fFitFunction; };

TGraph* BCHistogramFitter::GetGraphFitFunction (  )  [inline]
Returns:
pointer to a graph for the fit function

Definition at line 83 of file BCHistogramFitter.h.

         { return fGraphFitFunction; };

TH1D* BCHistogramFitter::GetHistogram (  )  [inline]
Returns:
The data histogram

Definition at line 62 of file BCHistogramFitter.h.

         { return fHistogram; };

TH1D* BCHistogramFitter::GetHistogramExpected (  )  [inline]
Returns:
The histogram of expected counts

Definition at line 67 of file BCHistogramFitter.h.

         { return fHistogramExpected; };

double BCHistogramFitter::LogAPrioriProbability ( std::vector< double >  parameters  )  [virtual]

The log of the prior probability. Overloaded from BCModel.

Parameters:
parameters A vector of doubles containing the parameter values.

Reimplemented from BCModel.

Definition at line 225 of file BCHistogramFitter.cxx.

{
   // using flat probability in all parameters
   double logprob = 0.;
   for (unsigned int i = 0; i < this -> GetNParameters(); i++)
      logprob -= log(this -> GetParameter(i) -> GetRangeWidth());

   return logprob;
}

double BCHistogramFitter::LogLikelihood ( std::vector< double >  parameters  )  [virtual]

The log of the conditional probability. Overloaded from BCModel.

Parameters:
parameters A vector of doubles containing the parameter values.

Reimplemented from BCModel.

Definition at line 237 of file BCHistogramFitter.cxx.

{
   // initialize probability
   double loglikelihood = 0;

   // set the parameters of the function
   fFitFunction -> SetParameters(&params[0]);

   // get the number of bins
   int nbins = fHistogram -> GetNbinsX();

   // get bin width
   double dx = fHistogram -> GetBinWidth(1);

   // get function value of lower bin edge
   double fedgelow = fFitFunction -> Eval(fHistogram -> GetBinLowEdge(1));

   // loop over all bins
   for (int ibin = 1; ibin <= nbins; ++ibin) {
      // get upper bin edge
      double xedgehi = fHistogram -> GetBinLowEdge(ibin) + dx;

      // get function value at upper bin edge
      double fedgehi = fFitFunction -> Eval(xedgehi);

      // get the number of observed events
      double y = fHistogram -> GetBinContent(ibin);

      double yexp = 0.;

      // use ROOT's TH1D::Integral method
      if (fFlagIntegration)
         yexp = fFitFunction -> Integral(xedgehi - dx, xedgehi);

      // use linear interpolation
      else {
         yexp = fedgelow * dx + (fedgehi - fedgelow) * dx / 2.;

         // make the upper edge the lower edge for the next iteration
         fedgelow = fedgehi;
      }

      // get the value of the Poisson distribution
      loglikelihood += BCMath::LogPoisson(y, yexp);
   }

   // // get bin boundaries
   // double xmin = fHistogram -> GetBinLowEdge(ibin);
   // double xmax = fHistogram -> GetBinLowEdge(ibin+1);

   // // get the number of observed events
   // double y = fHistogram -> GetBinContent(ibin);

   // // get the number of expected events
   // double yexp = fFitFunction -> Integral(xmin, xmax);

   // // get the value of the Poisson distribution
   // loglikelihood += BCMath::LogPoisson(y, yexp);

   return loglikelihood;
}

int BCHistogramFitter::SetFitFunction ( TF1 *  func  )
Parameters:
func The fit function @ return An error code (1:pass, 0:fail).

Definition at line 180 of file BCHistogramFitter.cxx.

{
   // check if function exists
   if (!func) {
      BCLog::Out(BCLog::error, BCLog::error,
            "BCHistogramFitter::SetFitFunction() : TF1 not created.");
      return 0;
   }

   // set the function
   fFitFunction = func;

   // update the model name to contain the function name
   this -> SetName(TString::Format("HistogramFitter with %s",
         fFitFunction->GetName()));

   // reset parameters
   fParameterSet -> clear();

   // get the new number of parameters
   int n = func -> GetNpar();

   // add parameters
   for (int i = 0; i < n; ++i) {
      double xmin;
      double xmax;

      func -> GetParLimits(i, xmin, xmax);

      this -> AddParameter(func->GetParName(i), xmin, xmax);
   }

   // no error
   return 1;
}

void BCHistogramFitter::SetFlagIntegration ( bool  flag  )  [inline]

Sets the flag for integration.
true: use ROOT's TH1D::Integrate()
false: use linear interpolation

Definition at line 113 of file BCHistogramFitter.h.

         { fFlagIntegration = flag; };

int BCHistogramFitter::SetHistogram ( TH1D *  hist  )
Parameters:
hist The histogram containing the data @ return An error code (1:pass, 0:fail).

Definition at line 64 of file BCHistogramFitter.cxx.

{
   // check if histogram exists
   if (!hist) {
      BCLog::Out(BCLog::error, BCLog::error,
            "BCHistogramFitter::SetHistogram() : TH1D not created.");
      return 0;
   }

   // set pointer to histogram
   fHistogram = hist;

   // create a data set. this is necessary in order to calculate the
   // error band. the data set contains as many data points as there
   // are bins.
   BCDataSet * ds = new BCDataSet();

   // create data points and add them to the data set.
   // the x value is the lower edge of the bin, and
   // the y value is the bin count
   int nbins = fHistogram -> GetNbinsX();
   for (int i = 0; i < nbins; ++i) {
      BCDataPoint* dp = new BCDataPoint(2);
      dp ->SetValue(0, fHistogram -> GetBinLowEdge(i+1));
      dp ->SetValue(1, fHistogram -> GetBinContent(i+1));
      ds -> AddDataPoint(dp);
   }

   // set the new data set.
   this -> SetDataSet(ds);

   // calculate the lower and upper edge in x.
   double xmin = hist -> GetBinLowEdge(1);
   double xmax = hist -> GetBinLowEdge(nbins + 1);

   // calculate the minimum and maximum range in y.
   double histymin = hist -> GetMinimum();
   double histymax = hist -> GetMaximum();

   // calculate the minimum and maximum of the function value based on
   // the minimum and maximum value in y.
   double ymin = TMath::Max(0., histymin - 5. * sqrt(histymin));
   double ymax = histymax + 5. * sqrt(histymax);

   // set the data boundaries for x and y values.
   this -> SetDataBoundaries(0, xmin, xmax);
   this -> SetDataBoundaries(1, ymin, ymax);

   // set the indeces for fitting.
   this -> SetFitFunctionIndices(0, 1);

   // no error
   return 1;
}

int BCHistogramFitter::SetHistogramExpected ( const std::vector< double > &  parameters  )
Parameters:
hist The histogram with the expected counts (typically non-integer values!) @ return An error code (1:pass, 0:fail).

Definition at line 121 of file BCHistogramFitter.cxx.

{
   //clear up previous memory
   if(fHistogramExpected){
      delete fHistogramExpected;
   }
   //copy all properties from the data histogram
   fHistogramExpected = new TH1D(*fHistogram);

   // get the number of bins
   int nBins = fHistogramExpected -> GetNbinsX();

   // get bin width
   double dx = fHistogramExpected -> GetBinWidth(1);

   //set the parameters of fit function
   fFitFunction -> SetParameters(&parameters[0]);

   // get function value of lower bin edge
   double fedgelow = fFitFunction -> Eval(fHistogramExpected -> GetBinLowEdge(1));

   // loop over all bins, skip underflow
   for (int ibin = 1; ibin <= nBins; ++ibin) {
      // get upper bin edge
      double xedgehi = fHistogramExpected -> GetBinLowEdge(ibin) + dx;

      //expected count
      double yexp = 0.;

      // use ROOT's TH1D::Integral method
      if (fFlagIntegration)
         yexp = fFitFunction -> Integral(xedgehi - dx, xedgehi);

      // use linear interpolation
      else {
         // get function value at upper bin edge
         double fedgehi = fFitFunction -> Eval(xedgehi);
         yexp = fedgelow * dx + (fedgehi - fedgelow) * dx / 2.;

         // make the upper edge the lower edge for the next iteration
         fedgelow = fedgehi;
      }

      //write the expectation for the bin
      fHistogramExpected -> SetBinContent(ibin, yexp);

      //avoid automatic error as sqrt(yexp), used e.g. in Kolmogorov correction factor
      fHistogramExpected -> SetBinError(ibin, 0.0);

      // but the data under this model have that sqrt(yexp) uncertainty
      fHistogram -> SetBinError(ibin, sqrt(yexp));


   }
   return 1;
}

Member Data Documentation

TGraph* BCHistogramFitter::fErrorBand [private]

Pointer to the error band (for legend)

Definition at line 225 of file BCHistogramFitter.h.

TF1* BCHistogramFitter::fFitFunction [private]

The fit function

Definition at line 216 of file BCHistogramFitter.h.

bool BCHistogramFitter::fFlagIntegration [private]

Flag for using the ROOT TH1D::Integral method (true), or linear interpolation (false)

Definition at line 221 of file BCHistogramFitter.h.

TGraph* BCHistogramFitter::fGraphFitFunction [private]

Pointer to a graph for displaying the fit function

Definition at line 229 of file BCHistogramFitter.h.

TH1D* BCHistogramFitter::fHistogram [private]

The histogram containing the data.

Definition at line 212 of file BCHistogramFitter.h.

TH1D* BCHistogramFitter::fHistogramExpected [private]

The histogram containing the expected data.

Definition at line 234 of file BCHistogramFitter.h.

The documentation for this class was generated from the following files:
Generated on Mon Aug 30 2010 22:14:55 for Bayesian Analysis Toolkit by  doxygen 1.7.1
