BCEfficiencyFitter Class Reference

A class for fitting histograms with functions. More...

#include <BCEfficiencyFitter.h>

Inheritance diagram for BCEfficiencyFitter:
Inheritance graph
[legend]

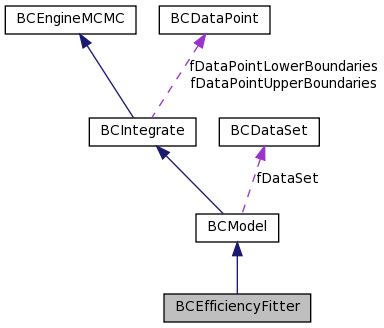

Collaboration diagram for BCEfficiencyFitter:
Collaboration graph
[legend]

List of all members.

Public Member Functions

Constructors and destructors

 BCEfficiencyFitter ()
 BCEfficiencyFitter (TH1D *hist1, TH1D *hist2, TF1 *func)
 ~BCEfficiencyFitter ()
Member functions (get)

TH1D * GetHistogram1 ()
TH1D * GetHistogram2 ()
TGraphAsymmErrors * GetHistogramRatio ()
TF1 * GetFitFunction ()
TGraph * GetErrorBand ()
TGraph * GetGraphFitFunction ()
int GetUncertainties (int n, int k, double p, double &xmin, double &xmax)
Member functions (set)

int SetHistograms (TH1D *hist1, TH1D *hist2)
int SetFitFunction (TF1 *func)
void SetFlagIntegration (bool flag)
Member functions (miscellaneous methods)

virtual double LogAPrioriProbability (std::vector< double > parameters)
virtual double LogLikelihood (std::vector< double > parameters)
double FitFunction (std::vector< double > x, std::vector< double > parameters)
int Fit ()
int Fit (TH1D *hist1, TH1D *hist2, TF1 *func)
void DrawFit (const char *options="", bool flaglegend=false)
int CalculatePValueFast (std::vector< double > par, double &pvalue)

Private Attributes

TGraph * fErrorBand
TF1 * fFitFunction
bool fFlagIntegration
TGraph * fGraphFitFunction
TH1D * fHistogram1
TH1D * fHistogram2
TH1D * fHistogramBinomial
TGraphAsymmErrors * fHistogramRatio

Detailed Description

A class for fitting histograms with functions.

Author:
Daniel Kollar
Kevin Kröninger
Version:
1.0
Date:
11.2008 This class allows fitting of efficiencies defined as a ratio of two TH1D histograms using a TF1 function. It uses binomial probabilities calculated based on the number of entries in histograms. This is only applicable if the numerator is a subset of the denominator.

Definition at line 38 of file BCEfficiencyFitter.h.

Constructor & Destructor Documentation

BCEfficiencyFitter::BCEfficiencyFitter (  )

The default constructor.

Definition at line 30 of file BCEfficiencyFitter.cxx.

                                       : BCModel("EfficiencyFitter")
{
   fHistogram1 = 0;
   fHistogram2 = 0;
   fHistogramBinomial = 0;
   fHistogramRatio = 0;
   fFitFunction = 0;

   // set default options and values
   this -> MCMCSetNIterationsRun(2000);
   this -> MCMCSetRValueCriterion(0.01);
   this -> SetFillErrorBand();
   fFlagIntegration = false;
}

BCEfficiencyFitter::BCEfficiencyFitter ( TH1D *  hist1,
TH1D *  hist2,
TF1 *  func
)

A constructor.

Parameters:
hist1 The histogram with the larger numbers
hist2 The histogram with the smaller numbers
func The fit function.

Definition at line 47 of file BCEfficiencyFitter.cxx.

                                                                             : BCModel("EfficiencyFitter")
{
   fHistogram1 = 0;
   fHistogram2 = 0;
   fHistogramBinomial = 0;
   fHistogramRatio = 0;
   fFitFunction = 0;

   this -> SetHistograms(hist1, hist2);
   this -> SetFitFunction(func);

   this -> MCMCSetNIterationsRun(2000);
   this -> MCMCSetRValueCriterion(0.01);
   this -> SetFillErrorBand();
   fFlagIntegration = false;
}

BCEfficiencyFitter::~BCEfficiencyFitter (  )

The default destructor.

Definition at line 229 of file BCEfficiencyFitter.cxx.

{
   if (fHistogram1)
      delete fHistogram1;

   if (fHistogram2)
      delete fHistogram2;

   if (fHistogramBinomial)
      delete fHistogramBinomial;

   if (fHistogramRatio)
      delete fHistogramRatio;
}

Member Function Documentation

int BCEfficiencyFitter::CalculatePValueFast ( std::vector< double >  par,
double &  pvalue
)

Calculate the p-value using fast-MCMC.

Parameters:
par A set of parameter values
pvalue The pvalue
Returns:
An error code

Definition at line 419 of file BCEfficiencyFitter.cxx.

{
   // check size of parameter vector
   if (par.size() != this -> GetNParameters())
   {
      BCLog::Out(BCLog::warning, BCLog::warning,"BCEfficiencyFitter::CalculatePValueFast() : Number of parameters is inconsistent.");
      return 0;
   }

   // check if histogram exists
   if (!fHistogram1 || !fHistogram2)
   {
      BCLog::Out(BCLog::warning, BCLog::warning,"BCEfficiencyFitter::CalculatePValueFast() : Histogram not defined.");
      return 0;
   }

   // define temporary variables
   int nbins = fHistogram1 -> GetNbinsX();

   std::vector <int> histogram;
   std::vector <double> expectation;
   histogram.assign(nbins, 0);
   expectation.assign(nbins, 0);

   double logp = 0;
   double logp_start = 0;
   int counter_pvalue = 0;

   // define starting distribution
   for (int ibin = 0; ibin < nbins; ++ibin)
   {
      // get bin boundaries
      double xmin = fHistogram1 -> GetBinLowEdge(ibin+1);
      double xmax = fHistogram1 -> GetBinLowEdge(ibin+2);

      // get the number of expected events
      double yexp = fFitFunction -> Integral(xmin, xmax);

      // get n
      int n = int(fHistogram1 -> GetBinContent(ibin));

      // get k
      int k = int(fHistogram2 -> GetBinContent(ibin));

      histogram[ibin]   = k;
      expectation[ibin] = n * yexp;

      // calculate p;
      logp += BCMath::LogApproxBinomial(n, k, yexp);
   }
   logp_start = logp;

   int niter = 100000;

   // loop over iterations
   for (int iiter = 0; iiter < niter; ++iiter)
   {
      // loop over bins
      for (int ibin = 0; ibin < nbins; ++ibin)
      {
         // get n
         int n = int(fHistogram1 -> GetBinContent(ibin));

         // get k
         int k = histogram.at(ibin);

         // get expectation
         double yexp = 0;
         if (n > 0)
            yexp = expectation.at(ibin)/n;

         // random step up or down in statistics for this bin
         double ptest = fRandom -> Rndm() - 0.5;

         // continue, if efficiency is at limit
         if (!(yexp > 0. || yexp < 1.0))
            continue;

         // increase statistics by 1
         if (ptest > 0 && (k < n))
         {
            // calculate factor of probability
            double r = (double(n)-double(k))/(double(k)+1.) * yexp / (1. - yexp);

            // walk, or don't (this is the Metropolis part)
            if (fRandom -> Rndm() < r)
            {
               histogram[ibin] = k + 1;
               logp += log(r);
            }
         }

         // decrease statistics by 1
         else if (ptest <= 0 && (k > 0))
         {
            // calculate factor of probability
            double r = double(k) / (double(n)-(double(k)-1)) * (1-yexp)/yexp;

            // walk, or don't (this is the Metropolis part)
            if (fRandom -> Rndm() < r)
            {
               histogram[ibin] = k - 1;
               logp += log(r);
            }
         }

      } // end of looping over bins

      // increase counter
      if (logp < logp_start)
         counter_pvalue++;

   } // end of looping over iterations

   // calculate p-value
   pvalue = double(counter_pvalue) / double(niter);

   // no error
   return 1;
}

void BCEfficiencyFitter::DrawFit ( const char *  options = "",
bool  flaglegend = false
)

Draw the fit in the current pad.

Definition at line 357 of file BCEfficiencyFitter.cxx.

{
   if (!fHistogram1 || !fHistogram2 || !fHistogramRatio)
   {
      BCLog::Out(BCLog::warning, BCLog::warning,"BCEfficiencyFitter::DrawFit() : Histogram(s) not defined.");
      return;
   }

   if (!fFitFunction)
   {
      BCLog::Out(BCLog::warning, BCLog::warning,"BCEfficiencyFitter::DrawFit() : Fit function not defined.");
      return;
   }

   // check wheather options contain "same"
   TString opt = options;
   opt.ToLower();

   // if not same, draw the histogram first to get the axes
   if(!opt.Contains("same"))
   {
      // create new histogram
      TH2D * hist_axes = new TH2D("hist_axes",
            Form(";%s;ratio", fHistogram1 -> GetXaxis() -> GetTitle()),
            fHistogram1 -> GetNbinsX(),
            fHistogram1 -> GetXaxis() -> GetBinLowEdge(1),
            fHistogram1 -> GetXaxis() -> GetBinLowEdge(fHistogram1 -> GetNbinsX()+1),
            1, 0., 1.);
      hist_axes -> SetStats(kFALSE);
      hist_axes -> Draw();

      fHistogramRatio -> Draw(TString::Format("%sp",opt.Data()));
   }

   // draw the error band as central 68% probability interval
   fErrorBand = this -> GetErrorBandGraph(0.16, 0.84);
   fErrorBand -> Draw("f same");

   // now draw the histogram again since it was covered by the band
   fHistogramRatio -> Draw(TString::Format("%ssamep",opt.Data()));

   // draw the fit function on top
   fGraphFitFunction = this -> GetFitFunctionGraph( this->GetBestFitParameters() );
   fGraphFitFunction -> SetLineColor(kRed);
   fGraphFitFunction -> SetLineWidth(2);
   fGraphFitFunction -> Draw("l same");

   // draw legend
   if (flaglegend)
   {
      TLegend * legend = new TLegend(0.25, 0.75, 0.55, 0.95);
      legend -> SetBorderSize(0);
      legend -> SetFillColor(kWhite);
      legend -> AddEntry(fHistogramRatio, "Data", "L");
      legend -> AddEntry(fGraphFitFunction, "Best fit", "L");
      legend -> AddEntry(fErrorBand, "Error band", "F");
      legend -> Draw();
   }
   gPad -> RedrawAxis();
}

int BCEfficiencyFitter::Fit (  )  [inline]

Performs the fit.

Returns:
An error code.

Definition at line 150 of file BCEfficiencyFitter.h.

         { return this -> Fit(fHistogram1, fHistogram2, fFitFunction); };

int BCEfficiencyFitter::Fit ( TH1D *  hist1,
TH1D *  hist2,
TF1 *  func
)

Performs the fit.

Parameters:
hist1 The histogram with the larger number.
hist2 The histogram with the smaller number.
func The fit function.
Returns:
An error code.

Definition at line 314 of file BCEfficiencyFitter.cxx.

{
   // set histogram
   if (hist1 && hist2)
      this -> SetHistograms(hist1, hist2);
   else
   {
      BCLog::Out(BCLog::warning, BCLog::warning,"BCEfficiencyFitter::Fit() : Histogram(s) not defined.");
      return 0;
   }

   // set function
   if (func)
      this -> SetFitFunction(func);
   else
   {
      BCLog::Out(BCLog::warning, BCLog::warning,"BCEfficiencyFitter::Fit() : Fit function not defined.");
      return 0;
   }

   // perform marginalization
   this -> MarginalizeAll();

   // maximize posterior probability, using the best-fit values close
   // to the global maximum from the MCMC
   this -> FindModeMinuit( this -> GetBestFitParameters() , -1);

   // calculate the p-value using the fast MCMC algorithm
   double pvalue;
   if (this -> CalculatePValueFast(this -> GetBestFitParameters(), pvalue))
         fPValue = pvalue;
   else
      BCLog::Out(BCLog::warning, BCLog::warning,"BCEfficiencyFitter::Fit() : Could not use the fast p-value evaluation.");

   // print summary to screen
   this -> PrintShortFitSummary();

   // no error
   return 1;
}

double BCEfficiencyFitter::FitFunction ( std::vector< double >  x,
std::vector< double >  parameters
) [virtual]

Returns the y-value of the 1-dimensional fit function at an x and for a set of parameters.

Parameters:
x A vector with the x-value.
parameters A set of parameters.

Reimplemented from BCIntegrate.

Definition at line 304 of file BCEfficiencyFitter.cxx.

{
   // set the parameters of the function
   fFitFunction -> SetParameters(&params[0]);

   return fFitFunction -> Eval(x[0]);
}

TGraph* BCEfficiencyFitter::GetErrorBand (  )  [inline]
Returns:
pointer to the error band

Definition at line 86 of file BCEfficiencyFitter.h.

         { return fErrorBand; };

TF1* BCEfficiencyFitter::GetFitFunction (  )  [inline]
Returns:
The fit function

Definition at line 81 of file BCEfficiencyFitter.h.

         { return fFitFunction; };

TGraph* BCEfficiencyFitter::GetGraphFitFunction (  )  [inline]
Returns:
pointer to a graph for the fit function

Definition at line 91 of file BCEfficiencyFitter.h.

         { return fGraphFitFunction; };

TH1D* BCEfficiencyFitter::GetHistogram1 (  )  [inline]
Returns:
The histogram 1

Definition at line 66 of file BCEfficiencyFitter.h.

         { return fHistogram1; };

TH1D* BCEfficiencyFitter::GetHistogram2 (  )  [inline]
Returns:
The histogram 2

Definition at line 71 of file BCEfficiencyFitter.h.

         { return fHistogram2; };

TGraphAsymmErrors* BCEfficiencyFitter::GetHistogramRatio (  )  [inline]
Returns:
The histogram ratio

Definition at line 76 of file BCEfficiencyFitter.h.

         { return fHistogramRatio; };

int BCEfficiencyFitter::GetUncertainties ( int  n,
int  k,
double  p,
double &  xmin,
double &  xmax
)

Calculates the lower and upper limits for a given probability.

Parameters:
n n for the binomial.
k k for the binomial.
p The central probability defining the limits.
xmin The lower limit.
xmax The upper limit.
Returns:
A flag (=1 plot point, !=1 do not plot point).

Definition at line 541 of file BCEfficiencyFitter.cxx.

{
   // create a histogram with binomial distribution
   if (fHistogramBinomial)
      fHistogramBinomial -> Reset();
   else
      fHistogramBinomial = new TH1D("hist_binomial", "", 1000, 0., 1.);

   // loop over bins and fill histogram
   for (int i = 1; i <= 1000; ++i)
   {
      double x   = fHistogramBinomial -> GetBinCenter(i);
      double val = TMath::Binomial(n, k) * TMath::Power(x, double(k)) * TMath::Power(1-x, double(n-k));
      fHistogramBinomial -> SetBinContent(i, val);
   }

   // normalize
   fHistogramBinomial -> Scale(1.0 / fHistogramBinomial -> Integral());

   // calculate quantiles
   int nprobSum = 4;
   double q[4];
   double probSum[4];
   probSum[0] = (1.-p)/2.;
   probSum[1] = 1.-(1.-p)/2.;
   probSum[2] = 0.05;
   probSum[3] = 0.95;

   fHistogramBinomial -> GetQuantiles(nprobSum, q, probSum);

   double xexp = double(k)/double(n);

   // calculate uncertainties
   if (n == 0)
   {
      xmin = 0.0;
      xmax = 0.0;
      return -3;
   }
   else if (xexp < q[0])
   {
      xmin = 0;
      xmax = q[3];
      return -2;
   }

   else if (xexp > q[1])
   {
      xmin = q[2];
      xmax = 1.0;
      return -1;
   }
   else
   {
      xmin = q[0];
      xmax = q[1];
      return 1;
   }

}

double BCEfficiencyFitter::LogAPrioriProbability ( std::vector< double >  parameters  )  [virtual]

The log of the prior probability. Overloaded from BCModel.

Parameters:
parameters A vector of doubles containing the parameter values.

Reimplemented from BCModel.

Definition at line 246 of file BCEfficiencyFitter.cxx.

{
   // using flat probability in all parameters
   double logprob = 0.;
   for(unsigned int i=0; i < this -> GetNParameters(); i++)
      logprob -= log(this -> GetParameter(i) -> GetRangeWidth());

   return logprob;
}

double BCEfficiencyFitter::LogLikelihood ( std::vector< double >  parameters  )  [virtual]

The log of the conditional probability. Overloaded from BCModel.

Parameters:
parameters A vector of doubles containing the parameter values.

Reimplemented from BCModel.

Definition at line 258 of file BCEfficiencyFitter.cxx.

{

   // initialize probability
   double loglikelihood = 0;

   // set the parameters of the function
   fFitFunction -> SetParameters(&params[0]);

   // get the number of bins
   int nbins = fHistogram1 -> GetNbinsX();

   // get bin width
   double dx = fHistogram1 -> GetXaxis() -> GetBinWidth(0);

   // loop over all bins
   for (int ibin = 1; ibin <= nbins; ++ibin)
   {
      // get n
      int n = int(fHistogram1 -> GetBinContent(ibin));

      // get k
      int k = int(fHistogram2 -> GetBinContent(ibin));

      // get x
      double x = fHistogram1 -> GetBinCenter(ibin);

      double eff = 0;

      // use ROOT's TH1D::Integral method
      if (fFlagIntegration)
         eff = fFitFunction -> Integral(x - dx/2., x + dx/2.) / dx;

      // use linear interpolation
      else
         eff = (fFitFunction -> Eval(x + dx/2.) + fFitFunction -> Eval(x - dx/2.)) / 2.;

      // get the value of the Poisson distribution
      loglikelihood += BCMath::LogApproxBinomial(n, k, eff);
   }

   return loglikelihood;
}

int BCEfficiencyFitter::SetFitFunction ( TF1 *  func  )
Parameters:
func The fit function @ return An error code (1:pass, 0:fail).

Definition at line 191 of file BCEfficiencyFitter.cxx.

{
   // check if function exists
   if(!func)
   {
      BCLog::Out(BCLog::error,BCLog::error,"BCEfficiencyFitter::SetFitFunction() : TF1 not created.");
      return 0;
   }

   // set the function
   fFitFunction = func;

   // update the model name to contain the function name
   this -> SetName(TString::Format("BCEfficiencyFitter with %s",fFitFunction->GetName()));

   // reset parameters
   fParameterSet -> clear();

   // get the new number of parameters
   int n = func -> GetNpar();

   // add parameters
   for (int i = 0; i < n; ++i)
   {
      double xmin;
      double xmax;

      func -> GetParLimits(i, xmin, xmax);

      this -> AddParameter(func->GetParName(i), xmin, xmax);
   }

   // no error
   return 1;
}

void BCEfficiencyFitter::SetFlagIntegration ( bool  flag  )  [inline]

Sets the flag for integration.
true: use ROOT's TH1D::Integrate()
false: use linear interpolation

Definition at line 123 of file BCEfficiencyFitter.h.

         { fFlagIntegration = flag; };

int BCEfficiencyFitter::SetHistograms ( TH1D *  hist1,
TH1D *  hist2
)
Parameters:
hist The histogram 1
hist The histogram 2 @ return An error code (1:pass, 0:fail).

Definition at line 66 of file BCEfficiencyFitter.cxx.

{
   // check if histogram exists
   if (!hist1 || !hist2)
   {
      BCLog::Out(BCLog::error,BCLog::error,"BCEfficiencyFitter::SetHistograms() : TH1D not created.");
      return 0;
   }

   // check compatibility of both histograms : number of bins
   if (hist1 -> GetNbinsX() != hist2 -> GetNbinsX())
   {
      BCLog::Out(BCLog::error,BCLog::error,"BCEfficiencyFitter::SetHistograms() : Histograms do not have the same number of bins.");
      return 0;
   }

   // check compatibility of both histograms : bin content
   for (int i = 1; i <= hist1 -> GetNbinsX(); ++i)
   {
      if (hist1 -> GetBinContent(i) < hist2 -> GetBinContent(i))
      {
         BCLog::Out(BCLog::error,BCLog::error,"BCEfficiencyFitter::SetHistograms() : Histogram 1 has fewer entries than histogram 2.");
         return 0;
      }
   }

   // set pointer to histograms
   fHistogram1 = hist1;
   fHistogram2 = hist2;

   // create efficiency histogram
   if (fHistogramRatio)
      delete fHistogramRatio;

   fHistogramRatio = new TGraphAsymmErrors();
   fHistogramRatio -> SetMarkerStyle(20);
   fHistogramRatio -> SetMarkerSize(1.5);

   int npoints = 0;

   // set points
   for (int i = 1; i <= hist1 -> GetNbinsX(); ++i)
   {
      // calculate uncertainties
      double xmin;
      double xmax;
      int flag = this -> GetUncertainties(
            int(hist1 -> GetBinContent(i)),
            int(hist2 -> GetBinContent(i)),
            0.68, xmin, xmax);

      if (flag == 1)
      {
         fHistogramRatio -> SetPoint(
               npoints,
               hist1 -> GetBinCenter(i),
               hist2 -> GetBinContent(i) / hist1 -> GetBinContent(i));
         // set uncertainties
         fHistogramRatio -> SetPointEXhigh(npoints, 0.);
         fHistogramRatio -> SetPointEXlow(npoints, 0.);
         fHistogramRatio -> SetPointEYhigh(npoints, xmax - hist2 -> GetBinContent(i) / hist1 -> GetBinContent(i));
         fHistogramRatio -> SetPointEYlow(npoints++, hist2 -> GetBinContent(i) / hist1 -> GetBinContent(i) - xmin);
      }
      else if (flag == -2)
      {
         fHistogramRatio -> SetPoint(npoints, hist1 -> GetBinCenter(i), 0.);
         // set uncertainties
         fHistogramRatio -> SetPointEXhigh(npoints, 0.);
         fHistogramRatio -> SetPointEXlow(npoints, 0.);
         fHistogramRatio -> SetPointEYhigh(npoints, xmax);
         fHistogramRatio -> SetPointEYlow(npoints++, 0.);
      }
      else if (flag == -1)
      {
         fHistogramRatio -> SetPoint(npoints, hist1 -> GetBinCenter(i), 1.);
         // set uncertainties
         fHistogramRatio -> SetPointEXhigh(npoints, 0.);
         fHistogramRatio -> SetPointEXlow(npoints, 0.);
         fHistogramRatio -> SetPointEYhigh(npoints, 0.);
         fHistogramRatio -> SetPointEYlow(npoints++, 1.-xmin);
      }
   }

   // create a data set. this is necessary in order to calculate the
   // error band. the data set contains as many data points as there
   // are bins. for now, the data points are empty.
   BCDataSet * ds = new BCDataSet();

   // create data points and add them to the data set.
   int nbins = fHistogram1 -> GetNbinsX();
   for (int i = 0; i < nbins; ++i)
   {
      BCDataPoint* dp = new BCDataPoint(2);
      ds -> AddDataPoint(dp);
   }

   // set the new data set.
   this -> SetDataSet(ds);

   // calculate the lower and upper edge in x.
   double xmin = hist1 -> GetBinLowEdge(1);
   double xmax = hist1 -> GetBinLowEdge(nbins+1);

// // calculate the minimum and maximum range in y.
// double histymin = hist2 -> GetMinimum();
// double histymax = hist1 -> GetMaximum();

// // calculate the minimum and maximum of the function value based on
// // the minimum and maximum value in y.
// double ymin = TMath::Max(0., histymin - 5.*sqrt(histymin));
// double ymax = histymax + 5.*sqrt(histymax);

   // set the data boundaries for x and y values.
   this -> SetDataBoundaries(0, xmin, xmax);
   this -> SetDataBoundaries(1, 0.0, 1.0);

   // set the indeces for fitting.
   this -> SetFitFunctionIndices(0, 1);

   // no error
   return 1;
}

Member Data Documentation

TGraph* BCEfficiencyFitter::fErrorBand [private]

Pointer to the error band (for legend)

Definition at line 199 of file BCEfficiencyFitter.h.

TF1* BCEfficiencyFitter::fFitFunction [private]

The fit function

Definition at line 190 of file BCEfficiencyFitter.h.

bool BCEfficiencyFitter::fFlagIntegration [private]

Flag for using the ROOT TH1D::Integral method (true), or linear interpolation (false)

Definition at line 195 of file BCEfficiencyFitter.h.

TGraph* BCEfficiencyFitter::fGraphFitFunction [private]

Pointer to a graph for displaying the fit function

Definition at line 203 of file BCEfficiencyFitter.h.

TH1D* BCEfficiencyFitter::fHistogram1 [private]

The histogram containing the larger numbers.

Definition at line 178 of file BCEfficiencyFitter.h.

TH1D* BCEfficiencyFitter::fHistogram2 [private]

The histogram containing the smaller numbers.

Definition at line 182 of file BCEfficiencyFitter.h.

TH1D* BCEfficiencyFitter::fHistogramBinomial [private]

Temporary histogram for calculating the binomial qunatiles

Definition at line 207 of file BCEfficiencyFitter.h.

TGraphAsymmErrors* BCEfficiencyFitter::fHistogramRatio [private]

The efficiency histogram.

Definition at line 186 of file BCEfficiencyFitter.h.

The documentation for this class was generated from the following files:
Generated on Mon Aug 30 2010 22:14:54 for Bayesian Analysis Toolkit by  doxygen 1.7.1
