A class for creating an (ROOT) output file. More...

#include <BCModelOutput.h>

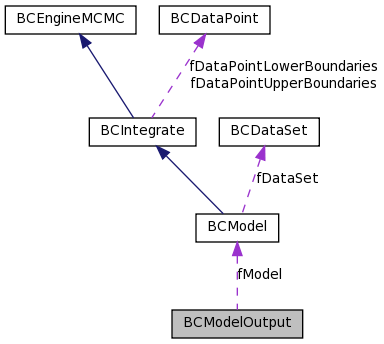

Collaboration diagram for BCModelOutput:

Public Member Functions
Constructors and destructors

	BCModelOutput ()
	BCModelOutput (BCModel model, const char filenname)
	BCModelOutput (const BCModelOutput &modeloutput)
virtual	~BCModelOutput ()
Assignment operators

BCModelOutput &	operator= (const BCModelOutput &modeloutput)
Getters

TTree *	GetAnalysisTree ()
TFile *	GetFile ()
Setters

void	SetModel (BCModel *model)
void	SetFile (const char *filename)
Member functions (miscellaneous methods)

void	WriteMarkovChain (bool flag=true)
void	FillAnalysisTree ()
void	WriteMarginalizedDistributions ()
void	WriteErrorBand ()
void	Write (TObject *o)
void	Close ()
Private Member Functions
void	Copy (BCModelOutput &modeloutput) const
void	Init ()
void	InitializeAnalysisTree ()
void	InitializeSATree ()
Private Attributes
TTree *	fAnalysisTree
char *	fFileName
int	fIndex
std::vector< TTree * >	fMarkovChainTrees
double	fMean_marginalized [MAXNPARAMETERS]
double	fMedian_marginalized [MAXNPARAMETERS]
double	fMode_global [MAXNPARAMETERS]
double	fMode_marginalized [MAXNPARAMETERS]
BCModel *	fModel
unsigned int	fNParameters
TFile *	fOutputFile
double	fProbability_aposteriori
double	fProbability_apriori
double	fQuantile_05 [MAXNPARAMETERS]
double	fQuantile_10 [MAXNPARAMETERS]
double	fQuantile_16 [MAXNPARAMETERS]
double	fQuantile_84 [MAXNPARAMETERS]
double	fQuantile_90 [MAXNPARAMETERS]
double	fQuantile_95 [MAXNPARAMETERS]
TTree *	fTreeSA

Detailed Description

A class for creating an (ROOT) output file.

Author:: Daniel Kollar; Kevin Kröninger

Version:: 1.0

Date:: 08.2008 This class defines an output interface for the analysis. It creates a ROOT file which can contain summary information, histograms and Markov chains.

Definition at line 39 of file BCModelOutput.h.

Constructor & Destructor Documentation

BCModelOutput::BCModelOutput ( )

The default constructor.

Definition at line 29 of file BCModelOutput.cxx.

{
   Init();
}

BCModelOutput::BCModelOutput	(	BCModel *	model,
		const char *	filenname
	)

A constructor.

Parameters:

	model	The model to which this output class is assigned.
	filename	Name of the output file.

Definition at line 35 of file BCModelOutput.cxx.

{
   Init();
   SetModel(model);
   SetFile(filename);
}

BCModelOutput::BCModelOutput ( const BCModelOutput & modeloutput )

The default copy constructor.

Definition at line 52 of file BCModelOutput.cxx.

{
   modeloutput.Copy(* this);
}

BCModelOutput::~BCModelOutput ( ) [virtual]

The default destructor.

Definition at line 43 of file BCModelOutput.cxx.

{
   if (fOutputFile) {
      fOutputFile -> Close();
      delete fOutputFile;
   }
}

Member Function Documentation

void BCModelOutput::Close ( )

Closes the TFile.

Definition at line 254 of file BCModelOutput.cxx.

{
   // remember current directory
   TDirectory * dir = gDirectory;

   // change to file
   fOutputFile -> cd();

   // write analysis tree to file
   if (fAnalysisTree -> GetEntries() > 0)
      fAnalysisTree -> Write();

   // write markov chain tree to file
   for (int i = 0; i < fModel->MCMCGetNChains(); ++i)
      if (fModel->MCMCGetMarkovChainTree(i)->GetEntries() > 0)
         fModel->MCMCGetMarkovChainTree(i)->Write();

   // write SA tree to file
   if (fModel->GetSATree()->GetEntries() > 0)
      fModel->GetSATree()->Write();

   // close file
   fOutputFile -> Close();

   // return to old directory
   gDirectory = dir;
}

void BCModelOutput::Copy ( BCModelOutput & modeloutput ) const [private]

Definition at line 306 of file BCModelOutput.cxx.

{
   // don't copy the content
   modeloutput.fModel            = this -> fModel;
   modeloutput.fAnalysisTree     = this -> fAnalysisTree;
// modeloutput.fMarkovChainTrees = this -> fMarkovChainTrees;
}

void BCModelOutput::FillAnalysisTree ( )

Fill the output TTree with the current information.

Definition at line 124 of file BCModelOutput.cxx.

{
   if(!fOutputFile)
   {
      BCLog::OutError("BCModelOutput::FillAnalysisTree : No file to write to.");
      return;
   }

   // get output values from model
   fNParameters = fModel -> GetNParameters();
   fProbability_apriori   = fModel -> GetModelAPrioriProbability();
   fProbability_aposteriori = fModel -> GetModelAPosterioriProbability();

   // loop over parameters
   int nparameters = fModel -> GetNParameters();
   for (int i = 0; i < nparameters; ++i)
   {
      BCParameter * parameter = fModel -> GetParameter(i);
      if (fModel -> GetBestFitParameters().size() > 0)
         fMode_global[i] = fModel -> GetBestFitParameters().at(i);
      if (fModel -> GetMarginalized(parameter -> GetName().data()))
      {
         fMode_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMode();
         fMean_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMean();
         fMedian_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMedian();
         fQuantile_05[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.05);
         fQuantile_10[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.10);
         fQuantile_16[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.16);
         fQuantile_84[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.84);
         fQuantile_90[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.90);
         fQuantile_95[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.95);
      }
   }

   // fill tree
   fAnalysisTree -> Fill();

   // increase index
   fIndex++;
}

TTree* BCModelOutput::GetAnalysisTree ( ) [inline]

Returns the output TTree tree.

Returns:: The pointer to the output TTree

Definition at line 81 of file BCModelOutput.h.

         { return fAnalysisTree; };

TFile* BCModelOutput::GetFile ( ) [inline]

Returns the output TFile.

Returns:: The pointer to the output TFile

Definition at line 87 of file BCModelOutput.h.

         { return fOutputFile; };

void BCModelOutput::Init ( ) [private]

Initialize the variables

Definition at line 67 of file BCModelOutput.cxx.

{
   fIndex = 0;
   fOutputFile = 0;
   fAnalysisTree = 0;
   fTreeSA = 0;
   fModel = 0;
   fFileName = 0;
}

void BCModelOutput::InitializeAnalysisTree ( ) [private]

Initialize the output TTree.

Definition at line 283 of file BCModelOutput.cxx.

{
   // create new tree
   fAnalysisTree = new TTree("AnalysisTree", "AnalysisTree");

   // set branch addresses
   fAnalysisTree -> Branch("fIndex",                   &fIndex,                   "index/I");
   fAnalysisTree -> Branch("fNParameters",             &fNParameters,             "parameters/I");
   fAnalysisTree -> Branch("fProbability_apriori" ,    &fProbability_apriori,     "apriori probability/D");
   fAnalysisTree -> Branch("fProbability_aposteriori", &fProbability_aposteriori, "aposteriori probability/D");
   fAnalysisTree -> Branch("fMode_global",              fMode_global,             "mode (global) [parameters]/D");
   fAnalysisTree -> Branch("fMode_marginalized",        fMode_marginalized,       "mode (marginalized) [parameters]/D");
   fAnalysisTree -> Branch("fMean_marginalized",        fMean_marginalized,       "mean (marginalized)[parameters]/D");
   fAnalysisTree -> Branch("fMedian_marginalized",      fMedian_marginalized,     "median (marginalized)[parameters]/D");
   fAnalysisTree -> Branch("fQuantile_05" ,             fQuantile_05,             "quantile 5% [parameters]/D");
   fAnalysisTree -> Branch("fQuantile_10" ,             fQuantile_10,             "quantile 10% [parameters]/D");
   fAnalysisTree -> Branch("fQuantile_16" ,             fQuantile_16,             "quantile 16% [parameters]/D");
   fAnalysisTree -> Branch("fQuantile_84" ,             fQuantile_84,             "quantile 84% [parameters]/D");
   fAnalysisTree -> Branch("fQuantile_90" ,             fQuantile_90,             "quantile 90% [parameters]/D");
   fAnalysisTree -> Branch("fQuantile_95" ,             fQuantile_95,             "quantile 95% [parameters]/D");
}

void BCModelOutput::InitializeSATree ( ) [private]

Initialize SA TTree.

BCModelOutput & BCModelOutput::operator= ( const BCModelOutput & modeloutput )

The defaut assignment operator

Definition at line 58 of file BCModelOutput.cxx.

{
   if (this != &modeloutput)
      modeloutput.Copy(* this);

   return * this;
}

void BCModelOutput::SetFile ( const char * filename )

Sets the output filename.

Parameters:

filename

The filename

Definition at line 86 of file BCModelOutput.cxx.

{
   if(!fModel) {
      BCLog::OutError("BCModelOutput::SetFile : Cannot set file if model is not set.");
      return;
   }

   // delete the old file
   if (fOutputFile)
   {
      fOutputFile->Close();
      delete fOutputFile;
   }

   // remember current directory
   TDirectory * dir = gDirectory;

   // create a new file
   fFileName = const_cast<char *>(filename);
   fOutputFile = new TFile(fFileName, "RECREATE");

   // initialize trees
   InitializeAnalysisTree();
   fModel->MCMCInitializeMarkovChainTrees();
   fModel->InitializeSATree();

   // change back to the old directory
   gDirectory = dir;
}

void BCModelOutput::SetModel ( BCModel * model )

Assign a BCModel to this output class.

Parameters:

model

A pointer to the BCModel

Definition at line 78 of file BCModelOutput.cxx.

{
   fModel = model;
   fModel->MCMCInitialize();
   fModel->SAInitialize();
}

void BCModelOutput::Write ( TObject * o )

Writes any object derived from TObject to TFile.

Definition at line 233 of file BCModelOutput.cxx.

{
   if(!fOutputFile)
   {
      BCLog::OutError("BCModelOutput::Write : No file to write to.");
      return;
   }

   // remember current directory
   TDirectory * dir = gDirectory;

   // change to file
   fOutputFile -> cd();

   o -> Write();

   // return to old directory
   gDirectory = dir;
}

void BCModelOutput::WriteErrorBand ( )

Writes the error band histogram into the TFile.

Definition at line 195 of file BCModelOutput.cxx.

{
   if(!fOutputFile)
   {
      BCLog::OutError("BCModelOutput::WriteErrorBand : No file to write to.");
      return;
   }

   // remember current directory
   TDirectory * dir = gDirectory;

   // change to file
   fOutputFile -> cd();

   TH2D * h0 = fModel -> GetErrorBandXY();
   if (h0)
   {
      TH2D * h1 = (TH2D*)h0 -> Clone("errorbandxy");
      h1 -> Write();

      double levels[] = { .68, .90, .95 };
      int nlevels = sizeof(levels)/sizeof(double);
      for (int i=0;i<nlevels;i++)
      {
         TH2D * htmp = fModel -> GetErrorBandXY_yellow(levels[i]);
         htmp -> SetName(TString::Format("%s_sub_%f.2",h1->GetName(),levels[i]));
         htmp -> Write();
         delete htmp;
      }

      delete h1;
   }

   // return to old directory
   gDirectory = dir;
}

void BCModelOutput::WriteMarginalizedDistributions ( )

Writes the marginalized histograms to the TFile.

Definition at line 166 of file BCModelOutput.cxx.

{
   if(!fOutputFile)
   {
      BCLog::OutError("BCModelOutput::WriteMarginalizedDistributions : No file to write to.");
      return;
   }

   // remember current directory
   TDirectory * dir = gDirectory;

   // change to file
   fOutputFile -> cd();

   int nparameters = fModel -> GetNParameters();
   for (int i = 0; i < nparameters; ++i)
      fModel -> GetMarginalized(fModel -> GetParameter(i)) -> GetHistogram() -> Write();

   if (nparameters > 1)
      for (int i = 0; i < nparameters - 1; ++i)
         for (int j = i + 1; j < nparameters; ++j)
            fModel -> GetMarginalized(fModel -> GetParameter(i),
                  fModel -> GetParameter(j)) -> GetHistogram() -> Write();

   // return to old directory
   gDirectory = dir;
}

void BCModelOutput::WriteMarkovChain ( bool flag = true )

Flag for writing Markov chain to file

Parameters:

flag

Writes (true) or does not write (false) the Markov chain

Definition at line 117 of file BCModelOutput.cxx.

{
   if (fModel)
      fModel -> WriteMarkovChain(flag);
}

Member Data Documentation

TTree* BCModelOutput::fAnalysisTree [private]

Pointer to the TTree containing the summary output information.

Definition at line 158 of file BCModelOutput.h.

char* BCModelOutput::fFileName [private]

The output filename

Definition at line 171 of file BCModelOutput.h.

int BCModelOutput::fIndex [private]

The analysis tree variables

Definition at line 183 of file BCModelOutput.h.

std::vector<TTree *> BCModelOutput::fMarkovChainTrees [private]

Definition at line 163 of file BCModelOutput.h.

double BCModelOutput::fMean_marginalized[MAXNPARAMETERS] [private]

Definition at line 189 of file BCModelOutput.h.

double BCModelOutput::fMedian_marginalized[MAXNPARAMETERS] [private]

Definition at line 190 of file BCModelOutput.h.

double BCModelOutput::fMode_global[MAXNPARAMETERS] [private]

Definition at line 187 of file BCModelOutput.h.

double BCModelOutput::fMode_marginalized[MAXNPARAMETERS] [private]

Definition at line 188 of file BCModelOutput.h.

BCModel* BCModelOutput::fModel [private]

Pointer to the model this output class is assigned to

Definition at line 179 of file BCModelOutput.h.

unsigned int BCModelOutput::fNParameters [private]

Definition at line 184 of file BCModelOutput.h.

TFile* BCModelOutput::fOutputFile [private]

Pointer to the output TFile.

Definition at line 175 of file BCModelOutput.h.

double BCModelOutput::fProbability_aposteriori [private]

Definition at line 186 of file BCModelOutput.h.

double BCModelOutput::fProbability_apriori [private]

Definition at line 185 of file BCModelOutput.h.

double BCModelOutput::fQuantile_05[MAXNPARAMETERS] [private]

Definition at line 191 of file BCModelOutput.h.

double BCModelOutput::fQuantile_10[MAXNPARAMETERS] [private]

Definition at line 192 of file BCModelOutput.h.

double BCModelOutput::fQuantile_16[MAXNPARAMETERS] [private]

Definition at line 193 of file BCModelOutput.h.

double BCModelOutput::fQuantile_84[MAXNPARAMETERS] [private]

Definition at line 194 of file BCModelOutput.h.

double BCModelOutput::fQuantile_90[MAXNPARAMETERS] [private]

Definition at line 195 of file BCModelOutput.h.

double BCModelOutput::fQuantile_95[MAXNPARAMETERS] [private]

Definition at line 196 of file BCModelOutput.h.

TTree* BCModelOutput::fTreeSA [private]

Definition at line 167 of file BCModelOutput.h.

The documentation for this class was generated from the following files:

BCModelOutput Class Reference

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
