BCMTF Class Reference

A class for ... More...

#include <BCMTF.h>

Inherits BCModel.

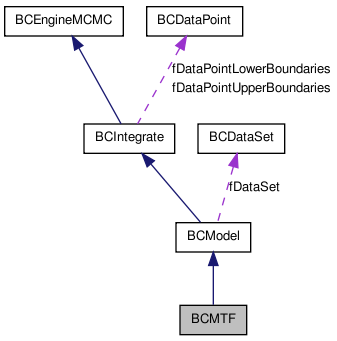

Collaboration diagram for BCMTF:

List of all members.

Public Member Functions
	BCMTF ()
	BCMTF (const char *name)
	~BCMTF ()
int	GetNChannels ()
int	GetNProcesses ()
int	GetNSystematics ()
int	GetChannelIndex (const char *name)
int	GetProcessIndex (const char *name)
int	GetSystematicIndex (const char *name)
int	GetParIndexProcess (int index)
int	GetParIndexSystematic (int index)
BCMTFChannel *	GetChannel (int index)
BCMTFProcess *	GetProcess (int index)
BCMTFSystematic *	GetSystematic (int index)
int	AddChannel (const char *name)
int	AddProcess (const char *name, double nmin=0., double nmax=1.)
int	AddSystematic (const char *name, double min=-5., double max=5.)
int	SetTemplate (const char *channelname, const char *processname, TH1D hist, double efficiency=1.)
int	SetTemplate (const char *channelname, const char *processname, std::vector< TF1 * > *funccont, int nbins, double efficiency=1.)
int	SetSystematicVariation (const char *channelname, const char *processname, const char *systematicname, double variation_up, double variation_down)
int	SetSystematicVariation (const char *channelname, const char *processname, const char *systematicname, TH1D hist_up, TH1D hist_down)
int	SetSystematicVariation (const char *channelname, const char *processname, const char *systematicname, TH1D hist, TH1D hist_up, TH1D hist_down)
int	SetData (const char *channelname, TH1D hist)
void	SetFlagEfficiencyConstraint (bool flag)
void	SetExpectationFunction (int parindex, TF1 *func)
int	PrintSummary (const char *filename="summary.txt")
double	Expectation (int channelindex, int binindex, const std::vector< double > &parameters)
double	ExpectationFunction (int parindex, int channelindex, int processindex, const std::vector< double > &parameters)
double	Efficiency (int channelindex, int processindex, int binindex, const std::vector< double > &parameters)
double	Probability (int channelindex, int processindex, int binindex, const std::vector< double > &parameters)
int	PrintStack (int channelindex, const std::vector< double > &parameters, const char *filename="stack.eps", const char *options="")
int	PrintStack (const char *channelname, const std::vector< double > &parameters, const char *filename="stack.eps", const char *options="")
double	CalculateChi2 (int channelindex, const std::vector< double > &parameters)
double	CalculateChi2 (const std::vector< double > &parameters)
double	CalculateCash (int channelindex, const std::vector< double > &parameters)
double	CalculateCash (const std::vector< double > &parameters)
double	LogLikelihood (const std::vector< double > &parameters)
Private Attributes
std::vector< BCMTFChannel * >	fChannelContainer
std::vector< BCMTFProcess * >	fProcessContainer
std::vector< BCMTFSystematic * >	fSystematicContainer
int	fNChannels
int	fNProcesses
int	fNSystematics
std::vector< int >	fProcessParIndexContainer
std::vector< int >	fSystematicParIndexContainer
bool	fFlagEfficiencyConstraint
std::vector< TF1 * >	fExpectationFunctionContainer

---

Detailed Description

A class for ...

Author:

Daniel Kollar

Kevin Kröninger

Version:

1.0

Date:

04.2012

Definition at line 37 of file BCMTF.h.

---

Constructor & Destructor Documentation

BCMTF::BCMTF

(

)

Definition at line 31 of file BCMTF.cxx.

 : BCModel("Multi-template Fitter")
 , fNChannels(0)
 , fNProcesses(0)
 , fNSystematics(0)
 , fFlagEfficiencyConstraint(false)
{}

BCMTF::BCMTF

(

const char *

name

)

Definition at line 40 of file BCMTF.cxx.

 : BCModel(name)
 , fNChannels(0)
 , fNProcesses(0)
 , fNSystematics(0)
 , fFlagEfficiencyConstraint(false)
{}

BCMTF::~BCMTF

(

)

Definition at line 49 of file BCMTF.cxx.

{
   for (int i = 0; i < fNChannels; ++i)
      delete fChannelContainer.at(i);
}

---

Member Function Documentation

int BCMTF::AddChannel

(

const char *

name

)

Definition at line 233 of file BCMTF.cxx.

{
   // check if channel exists
   for (int i = 0; i < fNChannels; ++i) {
      // compare names
      if (GetChannelIndex(name) >= 0) {
      BCLog::OutWarning("BCMultitemplateFitter::AddChannel() : Channel with this name exists already.");
         return -1;
      }
   }

   // create new channel
   BCMTFChannel * channel = new BCMTFChannel(name);

   // create new data
   BCMTFTemplate * bctemplate = new BCMTFTemplate(channel->GetName().c_str(), "data");

   // add data
   channel->SetData(bctemplate);

   // add process templates
   for (int i = 0; i < fNProcesses; ++i) {
      // get process
      BCMTFProcess * process = GetProcess(i);

      // create new template
      BCMTFTemplate * bctemplate = new BCMTFTemplate(name, process->GetName().c_str());

      // add template
      channel->AddTemplate(bctemplate);
   }

   // loop over all systematics
   for (int i = 0; i < fNSystematics; ++i) {
      // get systematic
      BCMTFSystematic * systematic = GetSystematic(i);

      // create new systematic variation
      BCMTFSystematicVariation * variation = new BCMTFSystematicVariation(name, systematic->GetName().c_str(), fNProcesses);

      // add systematic variation
      channel->AddSystematicVariation(variation);
   }

   // add channel
   fChannelContainer.push_back(channel);

   // increase number of channels
   fNChannels++;

   // no error
   return 1;
}

int BCMTF::AddProcess	(	const char *	name,
		double	nmin = 0.,
		double	nmax = 1.
	)

Definition at line 288 of file BCMTF.cxx.

{
   // check if process exists
   for (int i = 0; i < fNProcesses; ++i) {
      // compare names
      if (GetProcessIndex(name) >= 0) {
      BCLog::OutWarning("BCMultitemplateFitter::AddProcess() : Process with this name exists already.");
         return -1;
      }
   }

   // create new process
   BCMTFProcess * process = new BCMTFProcess(name);

   // add process
   fProcessContainer.push_back(process);

   // add process templates
   for (int i = 0; i < fNChannels; ++i) {
      // get channel
      BCMTFChannel * channel = GetChannel(i);

      // create new template
      BCMTFTemplate * bctemplate = new BCMTFTemplate(channel->GetName().c_str(), name);

      // add template
      channel->AddTemplate(bctemplate);

      // loop over all systematic
      for (int j = 0; j < fNSystematics; ++j) {
         // get systematic variation
         BCMTFSystematicVariation * variation = channel->GetSystematicVariation(j);

         // add histogram
         variation->AddHistograms(0, 0);
      }
   }

   // increase number of processes
   fNProcesses++;

   // add parameter index to container
   fProcessParIndexContainer.push_back(GetNParameters());

   // add parameter
   AddParameter(name, nmin, nmax);

   // add a functional form for the expectation
   fExpectationFunctionContainer.push_back(0);

   // no error
   return 1;
}

int BCMTF::AddSystematic	(	const char *	name,
		double	min = -5.,
		double	max = 5.
	)

Definition at line 343 of file BCMTF.cxx.

{
   // check if systematic exists
   for (int i = 0; i < fNSystematics; ++i) {
      // compare names
      if (GetSystematicIndex(name) >= 0) {
      BCLog::OutWarning("BCMultitemplateFitter::AddSystematic() : Systematic with this name exists already.");
         return -1;
      }
   }

   // create new systematic
   BCMTFSystematic * systematic = new BCMTFSystematic(name);

   // add systematic
   fSystematicContainer.push_back(systematic);

   // add systematic variations
   for (int i = 0; i < fNChannels; ++i) {
      // get channel
      BCMTFChannel * channel = GetChannel(i);

      // create new systematic variation
      BCMTFSystematicVariation * variation = new BCMTFSystematicVariation(channel->GetName().c_str(), name, fNProcesses);

      // add systematic variation
      channel->AddSystematicVariation(variation);
   }
   // ...

   // increase number of systematices
   fNSystematics++;

   // add parameter index to container
   fSystematicParIndexContainer.push_back(GetNParameters());

   // add parameter
   AddParameter(name, min, max);

   // add a functional form for the expectation
   fExpectationFunctionContainer.push_back(0);

   // no error
   return 1;
}

double BCMTF::CalculateCash	(	int	channelindex,
		const std::vector< double > &	parameters
	)

Definition at line 905 of file BCMTF.cxx.

{
   if (parameters.size() == 0)
      return -1;

   double cash = 0;

   // get channel
   BCMTFChannel * channel = GetChannel(channelindex);

   // get data
   BCMTFTemplate * data = channel->GetData();

   // get histogram
   TH1D * hist = data->GetHistogram();

   // check if histogram exists
   if (hist) {
      // get number of bins in data
      int nbins = hist->GetNbinsX();

      // loop over all bins
      for (int ibin = 1; ibin <= nbins; ++ibin) {
         // get expectation value
         double expectation = Expectation(channelindex, ibin, parameters);

         // get observation
         double observation = hist->GetBinContent(ibin);

         // calculate Cash statistic
         cash += 2. * (expectation - observation);

         // check negative log
         if (observation > 0)
            cash += 2. * observation * log (observation/expectation);
      }
   }

   // return cash;
   return cash;

}

double BCMTF::CalculateCash

(

const std::vector< double > &

parameters

)

Definition at line 949 of file BCMTF.cxx.

{
   if (parameters.size() == 0)
      return -1;

   double cash = 0;

   // get number of channels
   int nchannels = GetNChannels();

   // loop over all channels
   for (int i = 0; i < nchannels; ++i) {
      cash += CalculateCash(i, parameters);
   }

   // return cash
   return cash;
}

double BCMTF::CalculateChi2	(	int	channelindex,
		const std::vector< double > &	parameters
	)

Definition at line 846 of file BCMTF.cxx.

{
   if (parameters.size() == 0)
      return -1;

   double chi2 = 0;

   // get channel
   BCMTFChannel * channel = GetChannel(channelindex);

   // get data
   BCMTFTemplate * data = channel->GetData();

   // get histogram
   TH1D * hist = data->GetHistogram();

   // check if histogram exists
   if (hist) {
      // get number of bins in data
      int nbins = hist->GetNbinsX();

      // loop over all bins
      for (int ibin = 1; ibin <= nbins; ++ibin) {
         // get expectation value
         double expectation = Expectation(channelindex, ibin, parameters);

         // get observation
         double observation = hist->GetBinContent(ibin);

         // add Poisson term
         chi2 += (expectation - observation) * (expectation - observation) / expectation;
      }
   }

   // return chi2;
   return chi2;
}

double BCMTF::CalculateChi2

(

const std::vector< double > &

parameters

)

Definition at line 885 of file BCMTF.cxx.

{
   if (parameters.size() == 0)
      return -1;

   double chi2 = 0;

   // get number of channels
   int nchannels = GetNChannels();

   // loop over all channels
   for (int i = 0; i < nchannels; ++i) {
      chi2 += CalculateChi2(i, parameters);
   }

   // return chi2
   return chi2;
}

double BCMTF::Efficiency	(	int	channelindex,
		int	processindex,
		int	binindex,
		const std::vector< double > &	parameters
	)

Definition at line 637 of file BCMTF.cxx.

{
   // get channel
   BCMTFChannel * channel = fChannelContainer[channelindex];

   double efficiency = channel->GetTemplate(processindex)->GetEfficiency();

   double defficiency = 1.;

   // loop over all systematics
   for (int i = 0; i < fNSystematics; ++i) {
      if (!(fSystematicContainer[i]->GetFlagSystematicActive()))
         continue;

      // get parameter index
      int parindex = fSystematicParIndexContainer[i];

      // get histogram
      TH1D * hist = 0;

      if (parameters[parindex] > 0)
         hist = channel->GetSystematicVariation(i)->GetHistogramUp(processindex);
      else
         hist = channel->GetSystematicVariation(i)->GetHistogramDown(processindex);

      // check if histogram exists
      if (!hist)
         continue;

      // multiply efficiency
      defficiency += parameters[parindex] * hist->GetBinContent(binindex);
   }

   // calculate efficiency
   efficiency *= defficiency;

   // make sure efficiency is between 0 and 1
   if (fFlagEfficiencyConstraint) {
      if (efficiency < 0.)
         efficiency = 0.;
      if (efficiency > 1.)
         efficiency = 1.;
   }

   return efficiency;
}

double BCMTF::Expectation	(	int	channelindex,
		int	binindex,
		const std::vector< double > &	parameters
	)

Definition at line 590 of file BCMTF.cxx.

{
   double expectation = 0.;

   // loop over all processes
   for (int i = 0; i < fNProcesses; ++i) {
       // get efficiency
       double efficiency = Efficiency(channelindex, i, binindex, parameters);

       // get probability
       double probability = Probability(channelindex, i, binindex, parameters);

       // get parameter index
       int parindex = fProcessParIndexContainer[i];

       // add to expectation
       expectation += ExpectationFunction(parindex, channelindex, i, parameters)
          * efficiency
          * probability;
   }

   // check if expectation is positive
   if (expectation < 0)
      expectation = 0.;

   return expectation;
}

double BCMTF::ExpectationFunction	(	int	parindex,
		int	channelindex,
		int	processindex,
		const std::vector< double > &	parameters
	)

Definition at line 619 of file BCMTF.cxx.

{
  // get function container
  std::vector<TF1 *> * funccont = fChannelContainer[channelindex]->GetTemplate(processindex)->GetFunctionContainer();

  if (funccont->size()>0)
    return 1.;

  else if (!fExpectationFunctionContainer[parindex])
    return parameters[parindex];

  else {
    TF1 * func = fExpectationFunctionContainer[parindex];
    return func->Eval(parameters[parindex]);
  }
}

BCMTFChannel* BCMTF::GetChannel

(

int

index

)

[inline]

Definition at line 81 of file BCMTF.h.

         { return fChannelContainer.at(index); };

int BCMTF::GetChannelIndex

(

const char *

name

)

Definition at line 57 of file BCMTF.cxx.

{
   // loop over all channels and compare names
   for (int i = 0; i < fNChannels; ++i) {
      // get channel
      BCMTFChannel * channel = GetChannel(i);

      // compare names
      if (!channel->GetName().compare(name))
         return i;
   }

   // if channel does not exist, return -1
   return -1;
}

int BCMTF::GetNChannels

(

)

[inline]

Definition at line 52 of file BCMTF.h.

         { return fNChannels; };

int BCMTF::GetNProcesses

(

)

[inline]

Definition at line 56 of file BCMTF.h.

         { return fNProcesses; };

int BCMTF::GetNSystematics

(

)

[inline]

Definition at line 60 of file BCMTF.h.

         { return fNSystematics; };

int BCMTF::GetParIndexProcess

(

int

index

)

[inline]

Definition at line 73 of file BCMTF.h.

         { return fProcessParIndexContainer.at(index); };

int BCMTF::GetParIndexSystematic

(

int

index

)

[inline]

Definition at line 77 of file BCMTF.h.

         { return fSystematicParIndexContainer.at(index); };

BCMTFProcess* BCMTF::GetProcess

(

int

index

)

[inline]

Definition at line 85 of file BCMTF.h.

         { return fProcessContainer.at(index); };

int BCMTF::GetProcessIndex

(

const char *

name

)

Definition at line 74 of file BCMTF.cxx.

{
   // loop over all processs and compare names
   for (int i = 0; i < fNProcesses; ++i) {
      // get process
      BCMTFProcess * process = GetProcess(i);

      // compare names
      if (!process->GetName().compare(name))
         return i;
   }

   // if process does not exist, return -1
   return -1;
}

BCMTFSystematic* BCMTF::GetSystematic

(

int

index

)

[inline]

Definition at line 89 of file BCMTF.h.

         { return fSystematicContainer.at(index); };

int BCMTF::GetSystematicIndex

(

const char *

name

)

Definition at line 91 of file BCMTF.cxx.

{
   // loop over all systematics and compare names
   for (int i = 0; i < fNSystematics; ++i) {
      // get systematic
      BCMTFSystematic * systematic = GetSystematic(i);

      // compare names
      if (!systematic->GetName().compare(name))
         return i;
   }

   // if process does not exist, return -1
   return -1;
}

double BCMTF::LogLikelihood

(

const std::vector< double > &

params

)

[virtual]

Calculates natural logarithm of the likelihood. Method needs to be overloaded by the user.

Parameters:

params

A set of parameter values

Returns:

Natural logarithm of the likelihood

Implements BCModel.

Definition at line 969 of file BCMTF.cxx.

{
   double logprob = 0.;

   // loop over all channels
   for (int ichannel = 0; ichannel < fNChannels; ++ichannel) {

      // get channel
      BCMTFChannel * channel = fChannelContainer[ichannel];

      // check if channel is active
      if (!(channel->GetFlagChannelActive()))
         continue;

     // get data
      BCMTFTemplate * data = channel->GetData();

      // get histogram
      TH1D * hist = data->GetHistogram();

      // check if histogram exists
      if (!hist)
         continue;

      // get number of bins in data
      int nbins = data->GetNBins();

      // loop over all bins
      for (int ibin = 1; ibin <= nbins; ++ibin) {

         // get expectation value
         double expectation = Expectation(ichannel, ibin, parameters);

         // get observation
         double observation = hist->GetBinContent(ibin);

         // add Poisson term
         logprob += BCMath::LogPoisson(observation, expectation);
      }
   }

   return logprob;
}

int BCMTF::PrintStack	(	const char *	channelname,
		const std::vector< double > &	parameters,
		const char *	filename = "stack.eps",
		const char *	options = ""
	)

Definition at line 706 of file BCMTF.cxx.

{
   int index = GetChannelIndex(channelname);

   return PrintStack(index, parameters, filename, options);
}

int BCMTF::PrintStack	(	int	channelindex,
		const std::vector< double > &	parameters,
		const char *	filename = "stack.eps",
		const char *	options = ""
	)

Definition at line 714 of file BCMTF.cxx.

{
   // check if parameters are filled
   if (!parameters.size())
      return -1;

   // check options
   bool flag_logx   = false; // plot x-axis in log-scale
   bool flag_logy   = false; // plot y-axis in log-scale
   bool flag_bw     = false; // plot in black and white

   if (std::string(options).find("logx") < std::string(options).size())
      flag_logx = true;

   if (std::string(options).find("logy") < std::string(options).size())
      flag_logy = true;

   if (std::string(options).find("bw") < std::string(options).size())
      flag_bw = true;

   // get channel
   BCMTFChannel * channel = GetChannel(channelindex);

   // create canvas
   TCanvas * c1 = new TCanvas();
   c1->cd();

   // set log or linear scale
   if (flag_logx)
      c1->SetLogx();

   if (flag_logy)
      c1->SetLogy();

   // create stack
   THStack * stack = new THStack("", "");

   // create a container of temporary histograms
   std::vector<TH1D *> histcontainer;

   // get number of templates
   unsigned int ntemplates = GetNProcesses();

   // loop over all templates
   for (unsigned int i = 0; i < ntemplates; ++i) {

      // get histogram
      TH1D * temphist = channel->GetTemplate(i)->GetHistogram();

      // get function container
      std::vector<TF1 *> * funccont = channel->GetTemplate(i)->GetFunctionContainer();

      // create new histogram
      TH1D * hist(0);

      if (temphist)
         hist = new TH1D( *(temphist) );
      else if (funccont)
         hist = new TH1D( *(channel->GetData()->GetHistogram()));
      else
         continue;

      if (flag_bw) {
         hist->SetFillColor(0);
         hist->SetLineWidth(0);
         hist->SetLineStyle(int(1+i));
      }
      else {
         hist->SetFillColor(2 + i);
         hist->SetFillStyle(1001);
      }

      // get number of bins
      int nbins = hist->GetNbinsX();

      // scale histogram
      for (int ibin = 1; ibin <= nbins; ++ibin) {

         // get efficiency
         double efficiency = Efficiency(channelindex, i, ibin, parameters);

         // get probability
         double probability = Probability(channelindex, i, ibin, parameters);

         // get parameter index
         int parindex = GetParIndexProcess(i);

         // add to expectation
         double expectation = parameters[parindex] * efficiency * probability;

         // set bin content
         hist->SetBinContent(ibin, expectation);
      }

      // add histogram to container (for memory management)
      histcontainer.push_back(hist);

      // add histogram to stack
      stack->Add(hist);
   }

   //draw data
   channel->GetData()->GetHistogram()->Draw("PE");

   // set range user
   channel->GetData()->GetHistogram()->GetYaxis()->SetRangeUser(0., channel->GetData()->GetHistogram()->GetMaximum() + 2. * sqrt(channel->GetData()->GetHistogram()->GetMaximum()));

   // draw stack
   stack->Draw("SAMEHIST");

   //draw data again
   channel->GetData()->GetHistogram()->Draw("SAMEPE");

   // redraw the axes
   gPad->RedrawAxis();

   // print
   c1->Print(filename);

   // free memory
   for (unsigned int i = 0; i < histcontainer.size(); ++i) {
      TH1D * hist = histcontainer.at(i);
      delete hist;
   }
   delete stack;
   delete c1;

   // no error
   return 1;
}

int BCMTF::PrintSummary

(

const char *

filename = "summary.txt"

)

Definition at line 511 of file BCMTF.cxx.

{
   // open file
   std::ofstream ofi(filename);
   ofi.precision(3);

   // check if file is open
   if(!ofi.is_open()) {
      BCLog::OutWarning(Form("BCMultitemplateFitter::PrintSummary() : Could not open file %s", filename));
      return 0;
   }

   ofi
      << " Multi template fitter summary " << std::endl
      << " ----------------------------- " << std::endl
      << std::endl
      << " Number of channels      : " << fNChannels << std::endl
      << " Number of processes     : " << fNProcesses << std::endl
      << " Number of systematics   : " << fNSystematics << std::endl
      << std::endl;

   ofi
      << " Channels :" << std::endl;
      for (int i = 0; i < GetNChannels(); ++i) {
         ofi
            << " " << i
            << " : \"" << GetChannel(i)->GetName().c_str() << "\""
            << std::endl;
      }
      ofi
         << std::endl;

   ofi
      << " Processes :" << std::endl;
      for (int i = 0; i < GetNProcesses(); ++i) {
         ofi
            << " " << i
            << " : \"" << GetProcess(i)->GetName().c_str()  << "\""
            << " (par index " << GetParIndexProcess(i) << ")"
            << std::endl;
      }
      ofi
         << std::endl;

   ofi
      << " Systematics :" << std::endl;
      for (int i = 0; i < GetNSystematics(); ++i) {
         ofi
            << " " << i
            << " : \"" << GetSystematic(i)->GetName().c_str()  << "\""
            << " (par index " << GetParIndexSystematic(i) << ")"
            << std::endl;
      }
      ofi
         << std::endl;
      if (GetNSystematics() == 0)
         ofi
            << " - none - " << std::endl;

      ofi
         << " Goodness-of-fit: " << std::endl;
      for (int i = 0; i < GetNChannels(); ++i) {
         ofi
            << " i : \"" << GetChannel(i)->GetName().c_str() << "\" : chi2 = "
            << CalculateChi2( i, GetBestFitParameters() )
            << std::endl;
      }
      ofi
         << std::endl;


   // close file
   ofi.close();

   // no error
   return 1;
}

double BCMTF::Probability	(	int	channelindex,
		int	processindex,
		int	binindex,
		const std::vector< double > &	parameters
	)

Definition at line 685 of file BCMTF.cxx.

{
   // get histogram
   TH1D * hist = fChannelContainer[channelindex]->GetTemplate(processindex)->GetHistogram();

   // get function container
   std::vector<TF1 *> * funccont = fChannelContainer[channelindex]->GetTemplate(processindex)->GetFunctionContainer();

   // this needs to be fast
   if (!hist && !(funccont->size()>0))
      return 0.;

   if (hist)
     return hist->GetBinContent(binindex);
   else {
     int parindex = fProcessParIndexContainer[processindex];
     return funccont->at(binindex-1)->Eval(parameters[parindex]);
   }
}

int BCMTF::SetData	(	const char *	channelname,
		TH1D	hist
	)

Definition at line 196 of file BCMTF.cxx.

{
   int channelindex = GetChannelIndex(channelname);

   // check if channel exists
   if (channelindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Channel does not exist.");
         return -1;
   }

   // get channel
   BCMTFChannel * channel = GetChannel(channelindex);

   // get template
   BCMTFTemplate * data = channel->GetData();

   // remove statistics box
   hist.SetStats(kFALSE);

   // set marker
   hist.SetMarkerStyle(20);
   hist.SetMarkerSize(1.1);

   // remove old data set if it exists
   if (data->GetHistogram()) {
      delete data->GetHistogram();
      data->SetHistogram(0);
   }

   // set histogram
   data->SetHistogram(new TH1D(hist));

   // no error
   return 1;
}

void BCMTF::SetExpectationFunction	(	int	parindex,
		TF1 *	func
	)			[inline]

Definition at line 126 of file BCMTF.h.

         { fExpectationFunctionContainer[parindex] = func; };

void BCMTF::SetFlagEfficiencyConstraint

(

bool

flag

)

[inline]

Definition at line 122 of file BCMTF.h.

         { fFlagEfficiencyConstraint = flag; };

int BCMTF::SetSystematicVariation	(	const char *	channelname,
		const char *	processname,
		const char *	systematicname,
		TH1D	hist_up,
		TH1D	hist_down
	)

Definition at line 449 of file BCMTF.cxx.

{
   // get channel index
   int channelindex = GetChannelIndex(channelname);

   // check if channel exists
   if (channelindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Channel does not exist.");
         return -1;
   }

   // get process index
   int processindex = GetProcessIndex(processname);

   // check if process exists
   if (processindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Process does not exist.");
         return -1;
   }

   // get systematic index
   int systematicindex = GetSystematicIndex(systematicname);

   // check if systematic exists
   if (systematicindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Systematic does not exist.");
         return -1;
   }

   // get channel
   BCMTFChannel * channel = GetChannel(channelindex);

   // get systematic variation
   BCMTFSystematicVariation * variation = channel->GetSystematicVariation(systematicindex);

   // set histogram
   variation->SetHistograms(processindex, new TH1D(hist_up), new TH1D(hist_down));

   // no error
   return 1;
}

int BCMTF::SetSystematicVariation	(	const char *	channelname,
		const char *	processname,
		const char *	systematicname,
		double	variation_up,
		double	variation_down
	)

Definition at line 390 of file BCMTF.cxx.

{

   // get channel index
   int channelindex = GetChannelIndex(channelname);

   // check if channel exists
   if (channelindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Channel does not exist.");
         return -1;
   }

   // get process index
   int processindex = GetProcessIndex(processname);

   // check if process exists
   if (processindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Process does not exist.");
         return -1;
   }

   // get systematic index
   int systematicindex = GetSystematicIndex(systematicname);

   // check if systematic exists
   if (systematicindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Systematic does not exist.");
         return -1;
   }

   // get channel
   BCMTFChannel * channel = GetChannel(channelindex);

   BCMTFTemplate * bctemplate = channel->GetTemplate(processindex);

   TH1D * hist_template = bctemplate->GetHistogram();

   TH1D hist_up = TH1D(*hist_template);
   TH1D hist_down = TH1D(*hist_template);

   int nbins = hist_up.GetNbinsX();

   // loop over all bins
   for (int ibin = 1; ibin <= nbins; ++ibin) {
      hist_up.SetBinContent(ibin, variation_up);
      hist_down.SetBinContent(ibin, variation_down);
   }

   // get systematic variation
   BCMTFSystematicVariation * variation = channel->GetSystematicVariation(systematicindex);

   // set histogram
   variation->SetHistograms(processindex, new TH1D(hist_up), new TH1D(hist_down));

   // no error
   return 1;
}

int BCMTF::SetSystematicVariation	(	const char *	channelname,
		const char *	processname,
		const char *	systematicname,
		TH1D	hist,
		TH1D	hist_up,
		TH1D	hist_down
	)

Definition at line 492 of file BCMTF.cxx.

{
   // get number of bins
   int nbins = hist.GetNbinsX();

   TH1D * hist_up_rel = new TH1D(hist);
   TH1D * hist_down_rel = new TH1D(hist);

   // loop over all bins
   for (int ibin = 1; ibin <= nbins; ++ibin) {
      hist_up_rel->SetBinContent(ibin, (hist_up.GetBinContent(ibin) - hist.GetBinContent(ibin)) / hist.GetBinContent(ibin));
      hist_down_rel->SetBinContent(ibin, (hist.GetBinContent(ibin) - hist_down.GetBinContent(ibin)) / hist.GetBinContent(ibin));
   }

   // set the systematic variation
   return SetSystematicVariation(channelname, processname, systematicname, *hist_up_rel, *hist_down_rel);
}

int BCMTF::SetTemplate	(	const char *	channelname,
		const char *	processname,
		std::vector< TF1 * > *	funccont,
		int	nbins,
		double	efficiency = 1.
	)

Definition at line 159 of file BCMTF.cxx.

{
   // get channel index
   int channelindex = GetChannelIndex(channelname);

   // check if channel exists
   if (channelindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Channel does not exist.");
         return -1;
   }

   // get process index
   int processindex = GetProcessIndex(processname);

   // check if process exists
   if (processindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Process does not exist.");
         return -1;
   }

   // get channel
   BCMTFChannel * channel = GetChannel(channelindex);

   // get template
   BCMTFTemplate * bctemplate = channel->GetTemplate(processindex);

   // set histogram
   bctemplate->SetFunctionContainer(funccont, nbins);

   // set efficiency
   bctemplate->SetEfficiency(efficiency);

   // no error
   return 1;
}

int BCMTF::SetTemplate	(	const char *	channelname,
		const char *	processname,
		TH1D	hist,
		double	efficiency = 1.
	)

Definition at line 108 of file BCMTF.cxx.

{
   // get channel index
   int channelindex = GetChannelIndex(channelname);

   // check if channel exists
   if (channelindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Channel does not exist.");
         return -1;
   }

   // get process index
   int processindex = GetProcessIndex(processname);

   // check if process exists
   if (processindex < 0) {
      BCLog::OutWarning("BCMultitemplateFitter::SetTemplate() : Process does not exist.");
         return -1;
   }

   // get channel
   BCMTFChannel * channel = GetChannel(channelindex);

   // get template
   BCMTFTemplate * bctemplate = channel->GetTemplate(processindex);

   // normalize histogram
   if (hist.Integral())
      hist.Scale(1.0 / hist.Integral());

   // remove statistics box
   hist.SetStats(kFALSE);

   // set color and fill style
   hist.SetFillColor(2 + processindex);
   hist.SetFillStyle(1001);

   // create new histogram
   TH1D * temphist = new TH1D(hist);

   // set histogram
   bctemplate->SetHistogram(temphist);

   // set efficiency
   bctemplate->SetEfficiency(efficiency);

   // no error
   return 1;
}

---

Member Data Documentation

std::vector<BCMTFChannel *> BCMTF::fChannelContainer [private]

Definition at line 172 of file BCMTF.h.

std::vector<TF1 *> BCMTF::fExpectationFunctionContainer [private]

Definition at line 199 of file BCMTF.h.

bool BCMTF::fFlagEfficiencyConstraint [private]

Definition at line 196 of file BCMTF.h.

int BCMTF::fNChannels [private]

Definition at line 181 of file BCMTF.h.

int BCMTF::fNProcesses [private]

Definition at line 184 of file BCMTF.h.

int BCMTF::fNSystematics [private]

Definition at line 187 of file BCMTF.h.

std::vector<BCMTFProcess *> BCMTF::fProcessContainer [private]

Definition at line 175 of file BCMTF.h.

std::vector<int> BCMTF::fProcessParIndexContainer [private]

Definition at line 190 of file BCMTF.h.

std::vector<BCMTFSystematic *> BCMTF::fSystematicContainer [private]

Definition at line 178 of file BCMTF.h.

std::vector<int> BCMTF::fSystematicParIndexContainer [private]

Definition at line 193 of file BCMTF.h.

---

The documentation for this class was generated from the following files:

• BCMTF.h
• BCMTF.cxx
