A class for fitting several templates to a data set. More...

#include <BCMTF.h>

Inheritance diagram for BCMTF:

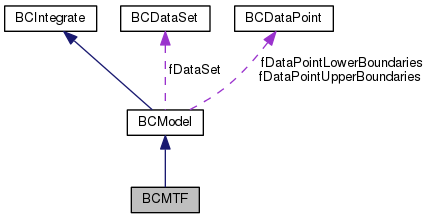

Collaboration diagram for BCMTF:

Public Member Functions
Constructors and destructors
	BCMTF ()

	BCMTF (const char *name)

	~BCMTF ()

Member functions (get)
int	GetNChannels ()

int	GetNProcesses ()

int	GetNSystematics ()

int	GetChannelIndex (const char *name)

int	GetProcessIndex (const char *name)

int	GetSystematicIndex (const char *name)

int	GetParIndexProcess (int index)

int	GetParIndexSystematic (int index)

BCMTFChannel *	GetChannel (int index)

BCMTFProcess *	GetProcess (int index)

BCMTFSystematic *	GetSystematic (int index)

Member functions (set)
int	SetData (const char *channelname, TH1D hist, double minimum=-1, double maximum=-1)

int	SetTemplate (const char channelname, const char processname, TH1D hist, double efficiency=1., double norm=1.)

int	SetTemplate (const char channelname, const char processname, std::vector< TF1 * > *funccont, int nbins, double efficiency=1.)

void	SetExpectationFunction (int parindex, TF1 *func)

int	SetSystematicVariation (const char channelname, const char processname, const char *systematicname, double variation_up, double variation_down)

int	SetSystematicVariation (const char channelname, const char processname, const char *systematicname, TH1D hist_up, TH1D hist_down)

int	SetSystematicVariation (const char channelname, const char processname, const char *systematicname, TH1D hist, TH1D hist_up, TH1D hist_down)

void	SetFlagEfficiencyConstraint (bool flag)

Member functions (miscellaneous methods)
int	AddChannel (const char *name)

int	AddProcess (const char *name, double nmin=0., double nmax=1., int color=-1, int fillstyle=-1, int linestyle=-1)

int	AddSystematic (const char *name, double min=-5., double max=5.)

double	Expectation (int channelindex, int binindex, const std::vector< double > &parameters)

double	ExpectationFunction (int parindex, int channelindex, int processindex, const std::vector< double > &parameters)

double	Efficiency (int channelindex, int processindex, int binindex, const std::vector< double > &parameters)

double	Probability (int channelindex, int processindex, int binindex, const std::vector< double > &parameters)

double	CalculateChi2 (int channelindex, const std::vector< double > &parameters)

double	CalculateChi2 (const std::vector< double > &parameters)

double	CalculateCash (int channelindex, const std::vector< double > &parameters)

double	CalculateCash (const std::vector< double > &parameters)

double	CalculatePValue (int channelindex, const std::vector< double > &parameters)

double	CalculatePValue (const std::vector< double > &parameters)

Member functions (output methods)
int	PrintSummary (const char *filename="summary.txt")

int	PrintStack (int channelindex, const std::vector< double > &parameters, const char filename="stack.pdf", const char options="e1b0stack")

int	PrintStack (const char channelname, const std::vector< double > &parameters, const char filename="stack.pdf", const char *options="e1b0stack")

Member functions (overloaded from BCModel)
double	LogLikelihood (const std::vector< double > &parameters)

void	MCMCUserIterationInterface ()

Public Member Functions inherited from BCModel
	BCModel (const char *name="model")

	BCModel (const BCModel &bcmodel)

virtual	~BCModel ()

BCModel &	operator= (const BCModel &bcmodel)

const std::string &	GetName () const

double	GetModelAPrioriProbability () const

double	GetModelAPosterioriProbability () const

BCDataSet *	GetDataSet () const

BCDataPoint *	GetDataPointLowerBoundaries () const

BCDataPoint *	GetDataPointUpperBoundaries () const

double	GetDataPointLowerBoundary (unsigned int index) const

double	GetDataPointUpperBoundary (unsigned int index) const

bool	GetFlagBoundaries () const

unsigned	GetNDataPoints () const

BCDataPoint *	GetDataPoint (unsigned int index) const

void	SetName (const char *name)

void	SetModelAPrioriProbability (double probability)

void	SetModelAPosterioriProbability (double probability)

virtual int	AddParameter (BCParameter *parameter)

void	SetDataSet (BCDataSet *dataset)

void	SetSingleDataPoint (BCDataPoint *datapoint)

void	SetSingleDataPoint (BCDataSet *dataset, unsigned int index)

void	SetDataBoundaries (unsigned int index, double lowerboundary, double upperboundary, bool fixed=false)

void	SetDataPointLowerBoundaries (BCDataPoint *datasetlowerboundaries)

void	SetDataPointUpperBoundaries (BCDataPoint *datasetupperboundaries)

void	SetDataPointLowerBoundary (int index, double lowerboundary)

void	SetDataPointUpperBoundary (int index, double upperboundary)

int	SetPrior (int index, TF1 *f)

int	SetPrior (const char name, TF1 f)

int	SetPriorDelta (int index, double value)

int	SetPriorDelta (const char *name, double value)

int	SetPriorGauss (int index, double mean, double sigma)

int	SetPriorGauss (const char *name, double mean, double sigma)

int	SetPriorGauss (int index, double mean, double sigmadown, double sigmaup)

int	SetPriorGauss (const char *name, double mean, double sigmadown, double sigmaup)

int	SetPrior (int index, TH1 *h, bool flag=false)

int	SetPrior (const char name, TH1 h, bool flag=false)

int	SetPriorConstant (int index)

int	SetPriorConstant (const char *name)

int	SetPriorConstantAll ()

void	Copy (const BCModel &bcmodel)

double	APrioriProbability (const std::vector< double > &parameters)

virtual double	LogAPrioriProbability (const std::vector< double > &parameters)

virtual double	Likelihood (const std::vector< double > &params)

double	ProbabilityNN (const std::vector< double > &params)

double	LogProbabilityNN (const std::vector< double > &parameters)

double	Probability (const std::vector< double > &parameter)

double	LogProbability (const std::vector< double > &parameter)

virtual double	SamplingFunction (const std::vector< double > &parameters)

double	Eval (const std::vector< double > &parameters)

virtual double	LogEval (const std::vector< double > &parameters)

virtual void	CorrelateDataPointValues (std::vector< double > &x)

double	GetPvalueFromChi2 (const std::vector< double > &par, int sigma_index)

double	GetPvalueFromKolmogorov (const std::vector< double > &par, int index)

double	GetPvalueFromChi2NDoF (std::vector< double > par, int sigma_index)

BCH1D *	CalculatePValue (std::vector< double > par, bool flag_histogram=false)

double	GetPValue ()

double	GetPValueNDoF ()

double	GetChi2NDoF ()

std::vector< double >	GetChi2Runs (int dataIndex, int sigmaIndex)

void	SetGoFNIterationsMax (int n)

void	SetGoFNIterationsRun (int n)

void	SetGoFNChains (int n)

double	HessianMatrixElement (const BCParameter parameter1, const BCParameter parameter2, std::vector< double > point)

void	PrintSummary ()

void	PrintResults (const char *file)

void	PrintShortFitSummary (int chi2flag=0)

void	PrintHessianMatrix (std::vector< double > parameters)

virtual double	CDF (const std::vector< double > &, int, bool)

Additional Inherited Members
Protected Attributes inherited from BCModel
std::string	fName

double	fModelAPriori

double	fModelAPosteriori

BCDataSet *	fDataSet

BCDataPoint *	fDataPointLowerBoundaries

BCDataPoint *	fDataPointUpperBoundaries

std::vector< bool >	fDataFixedValues

double	fPValue

double	fChi2NDoF

double	fPValueNDoF

bool	flag_discrete

int	fGoFNIterationsMax

int	fGoFNIterationsRun

int	fGoFNChains

std::vector< TNamed * >	fPriorContainer

bool	fPriorConstantAll

std::vector< bool >	fPriorContainerConstant

std::vector< bool >	fPriorContainerInterpolate

Detailed Description

A class for fitting several templates to a data set.

Author: Daniel Kollar; Kevin Kröninger

Version: 1.1

Date: 06.2012 This class can be used for fitting several template histograms to a data histogram. The templates are assumed to have no statistical uncertainty whereas the data are assumed to have Poissonian fluctuations in each bin. Several methods to judge the validity of the model are available.

Definition at line 38 of file BCMTF.h.

Constructor & Destructor Documentation

BCMTF::BCMTF ( )

The default constructor.

Definition at line 35 of file BCMTF.cxx.

BCMTF::BCMTF ( const char * name )

A constructor.

Parameters

name	The name of the model

Definition at line 44 of file BCMTF.cxx.

BCMTF::~BCMTF ( )

The default destructor.

Definition at line 53 of file BCMTF.cxx.

Member Function Documentation

int BCMTF::AddChannel ( const char * name )

Add a channel

Parameters

name	The channel name.

Returns: An error code.

Definition at line 282 of file BCMTF.cxx.

int BCMTF::AddProcess	(	const char *	name,
		double	nmin = `0.`,
		double	nmax = `1.`,
		int	color = `-1`,
		int	fillstyle = `-1`,
		int	linestyle = `-1`
	)

Add a process and the associated BAT parameter.

Parameters

name	The process name
nmin	The minimum number of expected events (lower limit on the BAT parameter values).
nmax	The maximum number of expected events (upper limit on the BAT parameter values).
color	The histogram color
fillstyle	The histogram fill style
linestyle	The histogram line style

Returns: An error code.

Definition at line 337 of file BCMTF.cxx.

int BCMTF::AddSystematic	(	const char *	name,
		double	min = `-5.`,
		double	max = `5.`
	)

Add a source of systematic uncertainty and the associated BAT (nuisance) parameter.

Parameters

name	The systematic uncertainty name.
min	The lower limit on the BAT parameter values, typically -5 sigma if Gaussian constraint is used.
max	The upper limit on the BAT parameter values, typically +5 sigma if Gaussian constraint is used.

Returns

Definition at line 395 of file BCMTF.cxx.

double BCMTF::CalculateCash	(	int	channelindex,
		const std::vector< double > &	parameters
	)

Calculate the Cash statistic for a single channel

Parameters

channelindex	The channel index.
parameters	A reference to the parameters used to calculate the Cash statistic.

Returns: The Cash statistic.

See Also: CalculateCash(const std::vector<double> & parameters)

Definition at line 1098 of file BCMTF.cxx.

double BCMTF::CalculateCash ( const std::vector< double > & parameters )

Calculate the Cash statistic for all channels

Parameters

parameters A reference to the parameters used to calculate the Cash statistic.

Returns: The Cash statistic.

See Also: CalculateCash(int channelindex, const std::vector<double> & parameters)

Definition at line 1142 of file BCMTF.cxx.

double BCMTF::CalculateChi2	(	int	channelindex,
		const std::vector< double > &	parameters
	)

Calculate a chi2 for a single channel given a set of parameters.

Parameters

channelindex	The channel index.
parameters	A reference to the parameters used to calculate the chi2.

Returns: A chi2 value.

See Also: CalculateChi2(const std::vector<double> & parameters)

Definition at line 1039 of file BCMTF.cxx.

double BCMTF::CalculateChi2 ( const std::vector< double > & parameters )

Calculate a chi2 for all channels together given a set of parameters.

Parameters

parameters A reference to the parameters used to calculate the chi2.

Returns: A chi2 value.

See Also: CalculateChi2(int channelindex, const std::vector<double> & parameters)

Definition at line 1078 of file BCMTF.cxx.

double BCMTF::CalculatePValue	(	int	channelindex,
		const std::vector< double > &	parameters
	)

Calculates and returns the fast p-value for the total likelihood as test statistic.

See Also: BCMath::CorrectPValue for correcting the fitting bias

Parameters

channelindex	The channel index.
parameters	A reference to the parameters for which the model expectations are computed.

Returns: the uncorrected p-value

Definition at line 1162 of file BCMTF.cxx.

double BCMTF::CalculatePValue ( const std::vector< double > & parameters )

Calculates and returns the fast p-value for the total likelihood as test statistic.

Note: Obtain the results with

See Also: BCModel::GetPValue and the value corrected for degrees of freedom with; BCModel::GetPValueNDoF

Parameters

parameters A reference to the parameters for which the model expectations are computed.

Definition at line 1197 of file BCMTF.cxx.

double BCMTF::Efficiency	(	int	channelindex,
		int	processindex,
		int	binindex,
		const std::vector< double > &	parameters
	)

Return the efficiency for a process in a channel and for a particular bin.

Parameters

channelindex	The channel index.
processindex	The process index.
binindex	The bin index.
parameters	A reference to the parameters used to calculate the efficiency.

Returns: The efficiency.

Definition at line 689 of file BCMTF.cxx.

double BCMTF::Expectation	(	int	channelindex,
		int	binindex,
		const std::vector< double > &	parameters
	)

Return the expected number of events for a channel and bin.

Parameters

channelindex	The channel index.
binindex	The bin index.
parameters	A reference to the parameters used to calculate the expectation.

Returns: The expectation value

Definition at line 642 of file BCMTF.cxx.

double BCMTF::ExpectationFunction	(	int	parindex,
		int	channelindex,
		int	processindex,
		const std::vector< double > &	parameters
	)

Return the function value of the expectation function for a parameter, channel and process.

Parameters

parindex	The parameter index.
channelindex	The channel index.
processindex	The process index.
A	reference to the parameters used to calculate the expectation.

Returns: The expectation function value.

Definition at line 671 of file BCMTF.cxx.

BCMTFChannel* BCMTF::GetChannel ( int index )

inline

Parameters

name	The channel index.

Returns: The channel object.

Definition at line 108 of file BCMTF.h.

int BCMTF::GetChannelIndex ( const char * name )

Parameters

name	The name of the channel.

Returns: The channel index.

Definition at line 61 of file BCMTF.cxx.

int BCMTF::GetNChannels ( )

inline

Returns: The number of channels.

Definition at line 65 of file BCMTF.h.

int BCMTF::GetNProcesses ( )

inline

Returns: The number of processes.

Definition at line 70 of file BCMTF.h.

int BCMTF::GetNSystematics ( )

inline

Returns: The number of systematics.

Definition at line 75 of file BCMTF.h.

int BCMTF::GetParIndexProcess ( int index )

inline

Parameters

index The parameter index (mtf counting) .

Returns: The parameter number corresponding to the parameter index (BAT counting).

Definition at line 96 of file BCMTF.h.

int BCMTF::GetParIndexSystematic ( int index )

inline

Parameters

name	The systematic uncertainty index (mtf counting).

Returns: The parameter number corresponding to the systematic uncertainty (BAT counting).

Definition at line 102 of file BCMTF.h.

BCMTFProcess* BCMTF::GetProcess ( int index )

inline

Parameters

name	The process index.

Returns: The process object.

Definition at line 114 of file BCMTF.h.

int BCMTF::GetProcessIndex ( const char * name )

Parameters

name	The name of the process.

Returns: The process index.

Definition at line 78 of file BCMTF.cxx.

BCMTFSystematic* BCMTF::GetSystematic ( int index )

inline

Parameters

name	The systematic ucnertainty index.

Returns: The systematic uncertainty object.

Definition at line 120 of file BCMTF.h.

int BCMTF::GetSystematicIndex ( const char * name )

Parameters

name	The name of the systematic.

Returns: The systematic uncertainty index.

Definition at line 95 of file BCMTF.cxx.

double BCMTF::LogLikelihood ( const std::vector< double > & parameters )

virtual

Calculates natural logarithm of the likelihood. Method needs to be overloaded by the user.

Parameters

params A set of parameter values

Returns: Natural logarithm of the likelihood

Implements BCModel.

Definition at line 1244 of file BCMTF.cxx.

void BCMTF::MCMCUserIterationInterface ( )

Method executed for every iteration of the MCMC. User's code should be provided via overloading in the derived class

Definition at line 1289 of file BCMTF.cxx.

int BCMTF::PrintStack	(	int	channelindex,
		const std::vector< double > &	parameters,
		const char *	filename = `"stack.pdf"`,
		const char *	options = `"e1b0stack"`
	)

Print the stack of templates together with the data in a particular channel. Several plot options are available:
"logx" : plot the x-axis on a log scale
"logy" : plot the y-axis on a log scale
"bw" : plot in black and white
"sum" : draw a line corresponding to the sum of all templates
"stack" : draw the templates as a stack
"e0" : do not draw error bars
"e1" : draw error bars corresponding to sqrt(n)
"b0" : draw an error band on the expectation corresponding to the central 68% probability
"b1" : draw bands showing the probability to observe a certain number of events given the expectation. The green (yellow, red) bands correspond to the central 68% (95%, 99.8%) probability

Parameters

channelindex	The channel index.
parameters	A reference to the parameters used to scale the templates.
options	The plotting options.

Returns: An error code.

Definition at line 766 of file BCMTF.cxx.

int BCMTF::PrintStack	(	const char *	channelname,
		const std::vector< double > &	parameters,
		const char *	filename = `"stack.pdf"`,
		const char *	options = `"e1b0stack"`
	)

Print the stack of templates together with the data in a particular channel.

Parameters

channelname	The name of the channel.
parameters	A reference to the parameters used to scale the templates.
options	The plotting options.

Returns: An error code.

See Also: PrintStack(int channelindex, const std::vector<double> & parameters, const char * filename = "stack.pdf", const char * options = "e1b0stack")

Definition at line 758 of file BCMTF.cxx.

int BCMTF::PrintSummary ( const char * filename = "summary.txt" )

Print a summary of the fit into an ASCII file.

Parameters

filename The name of the file.

Returns: An error code

Definition at line 563 of file BCMTF.cxx.

double BCMTF::Probability	(	int	channelindex,
		int	processindex,
		int	binindex,
		const std::vector< double > &	parameters
	)

Return the probability for a process in a channel and for a particular bin. This corresponds to the (normalized) bin content of the template.

Parameters

channelindex	The channel index.
processindex	The process index.
binindex	The bin index.
parameters	A reference to the parameters used to calculate the probability.

Returns: The probability.

Definition at line 737 of file BCMTF.cxx.

int BCMTF::SetData	(	const char *	channelname,
		TH1D	hist,
		double	minimum = `-1`,
		double	maximum = `-1`
	)

Set the data histogram in a particular channel.

Parameters

channelname	The name of the channel.
hist	The TH1D histogram.
minimum	The minimum number of expected events (used for calculation of uncertainty bands).
maximum	The maximum number of expected events (used for calculation of uncertainty bands).

Returns: An error code.

Definition at line 207 of file BCMTF.cxx.

void BCMTF::SetExpectationFunction	(	int	parindex,
		TF1 *	func
	)

inline

Set an expectation function.

Parameters

parindex	The index of the parameter
func	The pointer to a TF1 function.

See Also: SetTemplate(const char * channelname, const char * processname, std::vector<TF1 *> * funccont, int nbins, double efficiency = 1.)

Definition at line 167 of file BCMTF.h.

void BCMTF::SetFlagEfficiencyConstraint ( bool flag )

inline

Set a flag for the efficiency: if true then the total efficiency including all systematic uncertainties has to be between 0 and 1 at all times. Larger (smaller) values are set to 1 (0) during the calculation.

Parameters

flag The flag

Definition at line 222 of file BCMTF.h.

int BCMTF::SetSystematicVariation	(	const char *	channelname,
		const char *	processname,
		const char *	systematicname,
		double	variation_up,
		double	variation_down
	)

Set the impact of a source of systematic uncertainty for a particular source of systematic uncertainty and process in a given channel. The impact is the relative deviation between the varied and the nominal template, i.e., if the variation is set to 0.05 then the efficiency is multiplied by (1+0.05*eps), where eps is the corresponding nuisance parameter.

Parameters

channelname	The name of the channel.
processname	The name of the process.
systematicname	The name of the source of systematic uncertainty.
variation_up	The relative shift between the up-variation and the nominal template: (up-nom)/nom.
variation_down	The relative shift between the down-variation and the nominal template: (nom-down)/nom.

Returns: An error code.

Definition at line 442 of file BCMTF.cxx.

int BCMTF::SetSystematicVariation	(	const char *	channelname,
		const char *	processname,
		const char *	systematicname,
		TH1D	hist_up,
		TH1D	hist_down
	)

Set the impact of a source of systematic uncertainty for a particular source of systematic uncertainty and process in a given channel. The variation depends on x and is given as a histogram.

Parameters

channelname	The name of the channel.
processname	The name of the process.
systematicname	The name of the source of systematic uncertainty.
hist_up	The TH1D histogram defining the relative shift between the up-variation and the nominal template: (up-nom)/nom.
hist_down	The TH1D histogram defining the relative shift between the down-variation and the nominal template: (nom-down)/nom.

Returns: An error code.

See Also: SetSystematicVariation(const char * channelname, const char * processname, const char * systematicname, double variation_up, double variation_down)

Definition at line 501 of file BCMTF.cxx.

int BCMTF::SetSystematicVariation	(	const char *	channelname,
		const char *	processname,
		const char *	systematicname,
		TH1D	hist,
		TH1D	hist_up,
		TH1D	hist_down
	)

Set the impact of a source of systematic uncertainty for a particular source of systematic uncertainty and process in a given channel. The variation depends on x. The histograms are the raw histograms after the shift and the variation wrt the nominal template will be calculated automatically.

Parameters

channelname	The name of the channel.
processname	The name of the process.
systematicname	The name of the source of systematic uncertainty.
hist	The histogram with the nominal template
hist_up	The TH1D histogram after up-scaling of the systematic uncertainty.
hist_down	The TH1D histogram after down-scaling of the systematic uncertainty.

Returns: An error code.

See Also: SetSystematicVariation(const char * channelname, const char * processname, const char * systematicname, double variation_up, double variation_down)

Definition at line 544 of file BCMTF.cxx.

int BCMTF::SetTemplate	(	const char *	channelname,
		const char *	processname,
		TH1D	hist,
		double	efficiency = `1.`,
		double	norm = `1.`
	)

Set the template for a specific process in a particular channel.

Parameters

channelname	The name of the channel.
processname	The name of the process.
hist	The TH1D histogram.
efficiency	The efficiency of this process in this channel.

Returns: An error code.

Definition at line 112 of file BCMTF.cxx.

int BCMTF::SetTemplate	(	const char *	channelname,
		const char *	processname,
		std::vector< TF1 * > *	funccont,
		int	nbins,
		double	efficiency = `1.`
	)

Set the template for a specific process in a particular channel. This is an alternative way to describe the number of expected events. It is used in the rare case that processes cannot be summed directly, but interference effects have to be taken into account. The expected number of events is then parametrized as a function for each bin.

Parameters

channelname	The name of the channel.
processname	The name of the process.
funccont	A vector of pointers of TF1 functions.
nbins	The number of bins used for the histogram.
efficiency	The efficiency of this process in this channel.

Returns: An error code.

See Also: SetTemplate(const char * channelname, const char * processname, TH1D hist, double efficiency = 1.)

Definition at line 170 of file BCMTF.cxx.

The documentation for this class was generated from the following files:

/home/beaujean/workspace/bat/models/mtf/BCMTF.h
/home/beaujean/workspace/bat/models/mtf/BCMTF.cxx

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
