BCMTFAnalysisFacility Class Reference

A class summarizing a set of predefined measurements. More...

#include <BCMTFAnalysisFacility.h>

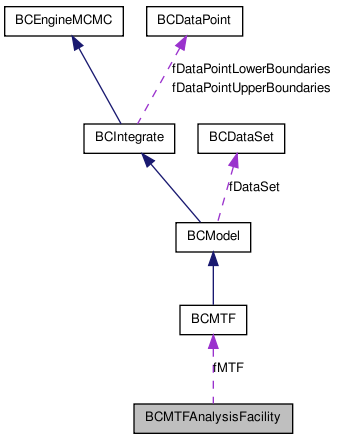

Collaboration diagram for BCMTFAnalysisFacility:
Collaboration graph
[legend]

List of all members.

Public Member Functions

Constructors and destructors

 BCMTFAnalysisFacility (BCMTF *mtf)
 ~BCMTFAnalysisFacility ()
Member functions (get)

BCMTF * GetBCMTF ()
Member functions (set)

void SetBCMTF (BCMTF *mtf)
void SetFlagMCMC (bool flag)

Member functions (miscellaneous methods)



BCMTF * fMTF
TRandom3 * fRandom
bool fFlagMCMC
BCLog::LogLevel fLogLevel
BCLog::LogLevel GetLogLevel ()
void SetLogLevel (BCLog::LogLevel level)
int PerformSingleChannelAnalyses (const char *dirname, const char *options="")
int PerformSingleSystematicAnalyses (const char *dirname, const char *options="")
int PerformCalibrationAnalysis (const char *dirname, const std::vector< double > &default_parameters, int index, const std::vector< double > &parametervalues, int nensembles=1000)
std::vector< TH1D > BuildEnsemble (const std::vector< double > &parameters)
TTree * BuildEnsembles (const std::vector< double > &parameters, int nensembles)
TTree * BuildEnsembles (TTree *tree, int nensembles)
TTree * PerformEnsembleTest (const std::vector< double > &parameters, int nensembles)
TTree * PerformEnsembleTest (TTree *tree, int nensembles, int start=0)
std::vector< TH1D > MatrixToHistograms (const std::vector< std::vector< double > > &matrix)

Detailed Description

A class summarizing a set of predefined measurements.

Author:
Daniel Kollar
Kevin Kröninger
Version:
1.1
Date:
06.2012 This class defines a set of measurements.

Definition at line 34 of file BCMTFAnalysisFacility.h.

Constructor & Destructor Documentation

BCMTFAnalysisFacility::BCMTFAnalysisFacility ( BCMTF *  mtf  )

The default constructor.

Parameters:
mtf The MTF object.

Definition at line 33 of file BCMTFAnalysisFacility.cxx.

 : fRandom(new TRandom3(0))
 , fFlagMCMC(false)
 , fLogLevel(BCLog::nothing)
{
   fMTF = mtf;
   BCLog::OutDetail(Form("Prepared Analysis Facility for MTF model \'%s\'",mtf->GetName().c_str()));
}

BCMTFAnalysisFacility::~BCMTFAnalysisFacility (  )

The default destructor.

Definition at line 43 of file BCMTFAnalysisFacility.cxx.

{
}

Member Function Documentation

std::vector< TH1D > BCMTFAnalysisFacility::BuildEnsemble ( const std::vector< double > &  parameters  )

Build a single ensemble based on a single set of parameters.

Parameters:
parameters The set of parameters which are used to generate the ensembles.
Returns:
A vector of TH1D histograms with the pseudo-data.

Definition at line 48 of file BCMTFAnalysisFacility.cxx.

{
   // get number of channels
   int nchannels = fMTF->GetNChannels();

   // create vector of histograms
   std::vector<TH1D> histograms;

   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {

      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // create new histogram
      TH1D hist( *(channel->GetData()->GetHistogram()) );

      // get number of bins
      int nbins = hist.GetNbinsX();

      // loop over all bins
      for (int ibin = 1; ibin <= nbins; ++ibin) {
         double expectation = fMTF->Expectation(ichannel, ibin, parameters);

         double observation = gRandom->Poisson(expectation);

         hist.SetBinContent(ibin, observation);
      }

      // add histogram
      histograms.push_back(hist);
   }

   // return histograms
   return histograms;
}

TTree * BCMTFAnalysisFacility::BuildEnsembles ( const std::vector< double > &  parameters,
int  nensembles
)

Build ensembles based on a single set of parameters.

Parameters:
parameters The set of parameters which are used to generate the ensembles.
ensembels The number of ensembles to be generated.
Returns:
A tree containing the ensembles.

Definition at line 191 of file BCMTFAnalysisFacility.cxx.

{
   // get number of channels
   int nchannels = fMTF->GetNChannels();

   BCLog::OutDetail(Form("MTF Building %d ensambles for %d channels.",nensembles,nchannels));

   // create tree
   TTree * tree = new TTree("ensembles", "ensembles");

   // create matrix of number of bins
   std::vector< std::vector<double> > nbins_matrix;

   // prepare the tree variables
   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // get number of bins
      int nbins = channel->GetData()->GetHistogram()->GetNbinsX();

      // create new matrix row
      std::vector<double> nbins_column(nbins);

      // add matrix
      nbins_matrix.push_back(nbins_column);
   }

   // get number of parameters
   int nparameters = fMTF->GetNParameters();

   std::vector<double> in_parameters(nparameters);

   // create branches
   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // get number of bins
      int nbins = channel->GetData()->GetHistogram()->GetNbinsX();

      // loop over bins
      for (int ibin = 1; ibin <= nbins; ++ibin) {
         // create branches
         tree->Branch(Form("channel_%i_bin_%i", ichannel, ibin),
                      &(nbins_matrix[ichannel])[ibin-1], "n/D");
      }
   }

   for (int i = 0; i < nparameters; ++i) {
      tree->Branch(Form("parameter_%i", i), &in_parameters[i], Form("parameter_%i/D", i));
   }

   // create vector of histograms
   std::vector<TH1D> histograms;

   // loop over ensembles
   for (int iensemble = 0; iensemble < nensembles; ++iensemble) {
      // create ensembles
      histograms = BuildEnsemble(parameters);

      // copy information from histograms into tree variables
      // loop over channels
      for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
         // get channel
         BCMTFChannel * channel = fMTF->GetChannel(ichannel);

         // get number of bins
         int nbins = channel->GetData()->GetHistogram()->GetNbinsX();

         // loop over bins
         for (int ibin = 1; ibin <= nbins; ++ibin) {
            // fill tree variable
            (nbins_matrix[ichannel])[ibin-1] = histograms.at(ichannel).GetBinContent(ibin);
         }
      }

      // copy parameter information
      for (int i = 0; i < nparameters; ++i) {
         in_parameters[i] = parameters.at(i);
      }

      // fill tree
      tree->Fill();
   }

   // return tree
   return tree;
}

TTree * BCMTFAnalysisFacility::BuildEnsembles ( TTree *  tree,
int  nensembles
)

Build ensembles based on a varying sets of parameters, e.g., using the prior or posterior.

Parameters:
tree A BAT output tree containing the parameters to be used for the generation of the ensembles.
ensembels The number of ensembles to be generated.
Returns:
A tree containing the ensembles.

Definition at line 86 of file BCMTFAnalysisFacility.cxx.

{
   // get number of channels
   int nchannels = fMTF->GetNChannels();

   BCLog::OutDetail(Form("MTF Building %d ensambles for %d channels.",nensembles,nchannels));

   // get number of parameters
   int nparameters = fMTF->GetNParameters();

   // create tree variables for input tree
   std::vector<double> parameters(nparameters);

   // set branch addresses
   for (int i = 0; i < nparameters; ++i) {
      tree->SetBranchAddress(Form("Parameter%i", i), &(parameters[i]));
   }

   // create tree
   TTree * tree_out = new TTree("ensembles", "ensembles");

   // create matrix of number of bins
   std::vector< std::vector<double> > nbins_matrix;

   // prepare the tree variables
   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // get number of bins
      int nbins = channel->GetData()->GetHistogram()->GetNbinsX();

      // create new matrix row
      std::vector<double> nbins_column(nbins);

      // add matrix
      nbins_matrix.push_back(nbins_column);
   }

   std::vector<double> in_parameters(nparameters);

   // create branches
   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // get number of bins
      int nbins = channel->GetData()->GetHistogram()->GetNbinsX();

      // loop over bins
      for (int ibin = 1; ibin <= nbins; ++ibin) {
         // create branches
         tree_out->Branch(Form("channel_%i_bin_%i", ichannel, ibin),
                          &(nbins_matrix[ichannel])[ibin-1], "n/D");
      }
   }

   for (int i = 0; i < nparameters; ++i) {
      tree_out->Branch(Form("parameter_%i", i), &in_parameters[i], Form("parameter_%i/D", i));
   }

   // create vector of histograms
   std::vector<TH1D> histograms;

   // loop over ensembles
   for (int iensemble = 0; iensemble < nensembles; ++iensemble) {
      // get random event from tree
      int index = (int) fRandom->Uniform(tree->GetEntries());
      tree->GetEntry(index);

      // create ensembles
      histograms = BuildEnsemble(parameters);

      // copy information from histograms into tree variables
      // loop over channels
      for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
         // get channel
         BCMTFChannel * channel = fMTF->GetChannel(ichannel);

         // get number of bins
         int nbins = channel->GetData()->GetHistogram()->GetNbinsX();

         // loop over bins
         for (int ibin = 1; ibin <= nbins; ++ibin) {
            // fill tree variable
            (nbins_matrix[ichannel])[ibin-1] = histograms.at(ichannel).GetBinContent(ibin);
         }
      }

      // copy parameter information
      for (int i = 0; i < nparameters; ++i) {
         in_parameters[i] = parameters.at(i);
      }

      // fill tree
      tree_out->Fill();
   }

   // return tree
   return tree_out;
}

BCMTF* BCMTFAnalysisFacility::GetBCMTF (  )  [inline]
Returns:
A pointer to the MTF object.

Definition at line 57 of file BCMTFAnalysisFacility.h.

         { return fMTF; };

BCLog::LogLevel BCMTFAnalysisFacility::GetLogLevel (  )  [inline]

Get the log level for the ensemble test.

Returns:
The log level.

Definition at line 85 of file BCMTFAnalysisFacility.h.

         { return fLogLevel; };

std::vector< TH1D > BCMTFAnalysisFacility::MatrixToHistograms ( const std::vector< std::vector< double > > &  matrix  )

Transform a matrix to a set of histograms.

Parameters:
matrix The matrix.
Returns:
A vector of histograms.

Definition at line 570 of file BCMTFAnalysisFacility.cxx.

{
   // create vector of histograms
   std::vector<TH1D> histograms;

   // get number of channels
   int nchannels = matrix.size();;

   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // get column
      std::vector<double> nbins_column = matrix[ichannel];

      // create new histogram
      TH1D hist( *(channel->GetData()->GetHistogram()) );

      // get number of bins
      int nbins = hist.GetNbinsX();

      // fill bin content
      for (int ibin = 1; ibin <= nbins; ++ibin) {
         hist.SetBinContent(ibin, nbins_column.at(ibin-1));
      }

      // add histogram to container
      histograms.push_back(hist);
   }

   // return histograms
   return histograms;

}

int BCMTFAnalysisFacility::PerformCalibrationAnalysis ( const char *  dirname,
const std::vector< double > &  default_parameters,
int  index,
const std::vector< double > &  parametervalues,
int  nensembles = 1000
)

Perform the analysis on pseudo-data generated by varying one of the parameters.

Parameters:
dirname The name of a directory into which the results are copied.
default_parameters The set of parameters which are fixed.
index The index of the parameter which will be varied.
parametervalues The different values of the parameter which is varied.
nesembles The number of ensembles used in the test.
Returns:
An error code.

Definition at line 1132 of file BCMTFAnalysisFacility.cxx.

{
   BCLog::OutSummary(Form("Running calibration analysis in directory \'%s\'.",dirname));

   // ---- create new directory ---- //

   mkdir(dirname, 0777);
   chdir(dirname);

   // ---- loop over parameter values and perform analysis  ---- //

   int nvalues = int(parametervalues.size());
   for (int ivalue = 0; ivalue < nvalues; ++ivalue) {

      // open file
      TFile * file = new TFile(Form("ensemble_%i.root", ivalue), "RECREATE");
      file->cd();

      // set parameters
      std::vector<double> parameters = default_parameters;
      parameters[index] = parametervalues.at(ivalue);

      // create ensemble
      TTree * tree = PerformEnsembleTest(parameters, nensembles);

      // write tree
      tree->Write();

      // close file
      file->Close();

      // free memory
      delete file;
   }

   // ---- change directory ---- //

   chdir("../");

   BCLog::OutSummary("Calibration analysis ran successfully");

   // no error
   return 1;
}

TTree * BCMTFAnalysisFacility::PerformEnsembleTest ( TTree *  tree,
int  nensembles,
int  start = 0
)

Perform ensemble test based on varying sets of parameters.

Parameters:
tree A BAT output tree containing the parameters to be used for the generation of the ensembles.
nensembles The number of ensembles to be generated.
nstart The first ensemble used in the tree.
Returns:
A tree containing the ensembles and the output of the test.

Definition at line 297 of file BCMTFAnalysisFacility.cxx.

{
   BCLog::OutSummary("Running ensemble test.");
   if (fFlagMCMC) {
      BCLog::OutSummary("Fit for each ensemble is going to be run using MCMC. It can take a while.");
   }

   // set log level
   // It would be better to set the level for the screen and for the file
   // separately. Perhaps in the future.
   BCLog::LogLevel lls = BCLog::GetLogLevelScreen();
   BCLog::LogLevel llf = BCLog::GetLogLevelFile();
   if(fLogLevel==BCLog::nothing) {
      BCLog::OutSummary("No log messages for the ensemble fits are going to be printed.");
      BCLog::SetLogLevel(fLogLevel);
   }
   else if(fLogLevel!=lls) {
      BCLog::OutSummary(Form("The log level for the ensemble test is set to \'%s\'.",BCLog::ToString(fLogLevel)));
      BCLog::SetLogLevel(fLogLevel);
   }

   // get number of channels
   int nchannels = fMTF->GetNChannels();

   // define set of histograms for the original data sets
   std::vector<TH1D *> histograms_data(nchannels);

   // create matrix of number of bins
   std::vector< std::vector<double> > nbins_matrix;

   // prepare the tree
   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // get number of bins
      int nbins = channel->GetData()->GetHistogram()->GetNbinsX();

      // create new matrix row
      std::vector<double> nbins_column(nbins);

      // add matrix
      nbins_matrix.push_back(nbins_column);
   }

   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // get number of bins
      int nbins = channel->GetData()->GetHistogram()->GetNbinsX();

      // loop over bins
      for (int ibin = 1; ibin <= nbins; ++ibin) {
         // create branches
         tree->SetBranchAddress(Form("channel_%i_bin_%i", ichannel, ibin),
                                           &(nbins_matrix[ichannel])[ibin-1]);
      }
   }

   // get number of parameters
   int nparameters = fMTF->GetNParameters();

   // define tree variables
   std::vector<double> out_parameters(nparameters);

   for (int i = 0; i < nparameters; ++i) {
      tree->SetBranchAddress(Form("parameter_%i", i), &out_parameters[i]);
   }

   // copy the original data sets
   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // set data pointer
      histograms_data[ichannel] = channel->GetData()->GetHistogram();
   }

   // create output tree
   TTree * tree_out = new TTree("ensemble_test", "ensemble test");

   // define tree variables
   std::vector<double> out_mode_global(nparameters);
   std::vector<double> out_std_global(nparameters);
   std::vector<double> out_mode_marginalized(nparameters);
   std::vector<double> out_mean_marginalized(nparameters);
   std::vector<double> out_median_marginalized(nparameters);
   std::vector<double> out_5quantile_marginalized(nparameters);
   std::vector<double> out_10quantile_marginalized(nparameters);
   std::vector<double> out_16quantile_marginalized(nparameters);
   std::vector<double> out_84quantile_marginalized(nparameters);
   std::vector<double> out_90quantile_marginalized(nparameters);
   std::vector<double> out_95quantile_marginalized(nparameters);
   std::vector<double> out_std_marginalized(nparameters);
   std::vector<double> out_chi2_generated(nchannels);
   std::vector<double> out_chi2_mode(nchannels);
   std::vector<double> out_cash_generated(nchannels);
   std::vector<double> out_cash_mode(nchannels);
   std::vector<int> out_nevents(nchannels);
   double out_chi2_generated_total;
   double out_chi2_mode_total;
   double out_cash_generated_total;
   double out_cash_mode_total;
   int out_nevents_total;

   // create branches
   for (int i = 0; i < nparameters; ++i) {
      tree_out->Branch(Form("parameter_%i", i), &out_parameters[i], Form("parameter %i/D", i));
      tree_out->Branch(Form("mode_global_%i", i), &out_mode_global[i], Form("global mode of par. %i/D", i));
      tree_out->Branch(Form("std_global_%i", i), &out_std_global[i], Form("global std of par. %i/D", i));
      if (fFlagMCMC) {
         tree_out->Branch(Form("mode_marginalized_%i", i), &out_mode_marginalized[i], Form("marginalized mode of par. %i/D", i));
         tree_out->Branch(Form("mean_marginalized_%i", i), &out_mean_marginalized[i], Form("marginalized mean of par. %i/D", i));
         tree_out->Branch(Form("median_marginalized_%i", i), &out_median_marginalized[i], Form("median of par. %i/D", i));
         tree_out->Branch(Form("5quantile_marginalized_%i", i), &out_5quantile_marginalized[i], Form("marginalized 5 per cent quantile of par. %i/D", i));
         tree_out->Branch(Form("10quantile_marginalized_%i", i), &out_10quantile_marginalized[i], Form("marginalized 10 per cent quantile of par. %i/D", i));
         tree_out->Branch(Form("16quantile_marginalized_%i", i), &out_16quantile_marginalized[i], Form("marginalized 16 per cent quantile of par. %i/D", i));
         tree_out->Branch(Form("84quantile_marginalized_%i", i), &out_84quantile_marginalized[i], Form("marginalized 84 per cent quantile of par. %i/D", i));
         tree_out->Branch(Form("90quantile_marginalized_%i", i), &out_90quantile_marginalized[i], Form("marginalized 90 per cent quantile of par. %i/D", i));
         tree_out->Branch(Form("95quantile_marginalized_%i", i), &out_95quantile_marginalized[i], Form("marginalized 95 per cent quantile of par. %i/D", i));
         tree_out->Branch(Form("std_marginalized_%i", i), &out_std_marginalized[i], Form("marginalized std of par. %i/D", i));
      }
   }
   for (int i = 0; i < nchannels; ++i) {
      tree_out->Branch(Form("chi2_generated_%i", i), &out_chi2_generated[i], Form("chi2 (generated par.) in channel %i/D", i));
      tree_out->Branch(Form("chi2_mode_%i", i), &out_chi2_mode[i], Form("chi2 (mode of par.) in channel %i/D", i));
      tree_out->Branch(Form("cash_generated_%i", i), &out_cash_generated[i], Form("cash statistic (generated par.) in channel %i/D", i));
      tree_out->Branch(Form("cash_mode_%i", i), &out_cash_mode[i], Form("cash statistic (mode of par.) in channel %i/D", i));
      tree_out->Branch(Form("nevents_%i", i), &out_nevents[i], Form("nevents in channel %i/I", i));
   }
   tree_out->Branch("chi2_generated_total", &out_chi2_generated_total, "chi2 (generated par.) in all channels/D");
   tree_out->Branch("chi2_mode_total", &out_chi2_mode_total, "chi2 (mode of par.) in all channels/D");
   tree_out->Branch("cash_generated_total", &out_cash_generated_total, "cash statistic (generated par.) in all channels/D");
   tree_out->Branch("cash_mode_total", &out_cash_mode_total, "cash statistic (mode of par.) in all channels/D");
   tree_out->Branch("nevents_total", &out_nevents_total, "total number of events/I");

   // loop over ensembles
   for (int iensemble = 0; iensemble < nensembles; ++iensemble) {
      // print status
      if ((iensemble+1)%100 == 0 && iensemble > 0) {
         BCLog::SetLogLevel(lls,llf);
         int frac = double(iensemble+1) / double(nensembles) * 100.;
         BCLog::OutDetail(Form("Fraction of ensembles analyzed: %i%%",frac));
         BCLog::SetLogLevel(fLogLevel);
      }

      // get next (commented out: random) event from tree
      //      int index = (int) fRandom->Uniform(tree->GetEntries());
      int index = iensemble + start;
      tree->GetEntry(index);

      // define histograms
      std::vector<TH1D> histograms;

      // transform matrix into histograms
      histograms = MatrixToHistograms(nbins_matrix);

      // loop over channels
      for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
         // get channel
         BCMTFChannel * channel = fMTF->GetChannel(ichannel);

         // overwrite data
         if (iensemble == 0)
            channel->GetData()->SetHistogram(0);

         // set data histogram
         fMTF->SetData(channel->GetName().c_str(), histograms.at(ichannel));
      }

      // check if MCMC should be run and perform analysis
      if (fFlagMCMC) {
         BCLog::SetLogLevel(lls,llf);
         BCLog::OutDetail(Form("Running MCMC for ensemble %i",iensemble));
         BCLog::SetLogLevel(fLogLevel);

         // work-around: force initialization
         fMTF->MCMCResetResults();

         // run mcmc
         fMTF->MarginalizeAll();

         // find mode
         fMTF->FindMode( fMTF->GetBestFitParameters() );
      }
      else {
         // find mode
         fMTF->FindMode();
      }

      // fill tree variables
      out_mode_global = fMTF->GetBestFitParameters();
      out_std_global = fMTF->GetBestFitParameterErrors();
      out_chi2_generated_total = 0;
      out_chi2_mode_total = 0;
      out_cash_generated_total = 0;
      out_cash_mode_total = 0;
      out_nevents_total = 0;

      for (int i = 0; i < nparameters; ++i) {
         if (fFlagMCMC) {
            BCH1D * hist = fMTF->GetMarginalized( fMTF->GetParameter(i) );
            out_mode_marginalized[i] = hist->GetMode();
            out_mean_marginalized[i] = hist->GetMean();
            out_median_marginalized[i] = hist->GetMedian();
            out_5quantile_marginalized[i] = hist->GetQuantile(0.05);
            out_10quantile_marginalized[i] = hist->GetQuantile(0.10);
            out_16quantile_marginalized[i] = hist->GetQuantile(0.16);
            out_84quantile_marginalized[i] = hist->GetQuantile(0.84);
            out_90quantile_marginalized[i] = hist->GetQuantile(0.90);
            out_95quantile_marginalized[i] = hist->GetQuantile(0.95);
            out_std_marginalized[i]=hist->GetRMS();
         }
      }

      for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
         // get channel
         BCMTFChannel * channel = fMTF->GetChannel(ichannel);

         // get number of events
         out_nevents[ichannel] = (int) channel->GetData()->GetHistogram()->Integral();

         // calculate chi2
         out_chi2_generated[ichannel] = fMTF->CalculateChi2( ichannel, out_parameters );
         out_chi2_mode[ichannel] = fMTF->CalculateChi2( ichannel, fMTF->GetBestFitParameters() );

         // calculate cash statistic
         out_cash_generated[ichannel] = fMTF->CalculateCash( ichannel, out_parameters );
         out_cash_mode[ichannel] = fMTF->CalculateCash( ichannel, fMTF->GetBestFitParameters() );

         // increase the total number of events
         out_nevents_total += out_nevents[ichannel];

         // increase the total chi2
         out_chi2_generated_total += out_chi2_generated[ichannel];
         out_chi2_mode_total += out_chi2_mode[ichannel];

         // increase the total cash statistic
         out_cash_generated_total += out_cash_generated[ichannel];
         out_cash_mode_total += out_cash_mode[ichannel];
      }

      // fill tree
      tree_out->Fill();
   }

   // put the original data back in place
   // loop over channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // set data pointer
      channel->GetData()->SetHistogram(histograms_data.at(ichannel));
   }

   // reset log level
   BCLog::SetLogLevel(lls,llf);

   // work-around: force initialization
   fMTF->MCMCResetResults();

   BCLog::OutSummary("Ensemble test ran successfully.");

   // return output tree
   return tree_out;
}

TTree * BCMTFAnalysisFacility::PerformEnsembleTest ( const std::vector< double > &  parameters,
int  nensembles
)

Perform ensemble test based on one set of parameters.

Parameters:
parameters The set of parameters which are used to generate the ensembles.
ensembels The number of ensembles to be generated.
Returns:
A tree containing the ensembles and the output of the test.

Definition at line 284 of file BCMTFAnalysisFacility.cxx.

{
   // create new tree
   TTree * tree = 0;

   // create ensembles
   tree = BuildEnsembles(parameters, nensembles);

   // perform ensemble test
   return PerformEnsembleTest(tree, nensembles);
}

int BCMTFAnalysisFacility::PerformSingleChannelAnalyses ( const char *  dirname,
const char *  options = ""
)

Perform the full set of single channel analyses and the combination. Possible options are:
"nosyst" : ignore systematic uncertainties. "mcmc" : use mcmc.

Parameters:
dirname The name of a directory into which the results are copied.
options A set of options.
Returns:
An error code.

Definition at line 607 of file BCMTFAnalysisFacility.cxx.

{
   BCLog::OutSummary(Form("Running single channel analysis in directory \'%s\'.",dirname));

   // ---- create new directory ---- //

   mkdir(dirname, 0777);
   chdir(dirname);

   // ---- check options ---- //

   bool flag_syst = true;
   bool flag_mcmc = true;

   if (std::string(options).find("nosyst") < std::string(options).size())
      flag_syst = false;

   if (std::string(options).find("mcmc") < std::string(options).size())
      flag_mcmc = true;

   // get number of channels
   int nchannels = fMTF->GetNChannels();

   // get number of systematics
   int nsystematics = fMTF->GetNSystematics();

   // container of flags for channels
   std::vector<bool> flag_channel(nchannels);

   // container of flags for systematics
   std::vector<bool> flag_systematic(nsystematics);

   // create new container of comparison tools
   std::vector<BCMTFComparisonTool *> ctc;
   std::vector<BCMTFComparisonTool *> ctc_mcmc;

   // get number of parameters
   int nparameters = fMTF->GetNParameters();

   // ---- add one comparison tool for each parameter ---- //

   // loop over all parameters
   for (int i = 0; i < nparameters; ++ i) {
      // create new comparison tool
      BCMTFComparisonTool * ct = new BCMTFComparisonTool(fMTF->GetParameter(i)->GetName().c_str());
      BCMTFComparisonTool * ct_mcmc = new BCMTFComparisonTool(fMTF->GetParameter(i)->GetName().c_str());

      // add comparison tool to container
      ctc.push_back(ct);
      ctc_mcmc.push_back(ct_mcmc);
   }

   // ---- switch on/off all systematics ---- //

   // loop over all systematics
   for (int isystematic = 0; isystematic < nsystematics; ++isystematic) {
      // get systematic
      BCMTFSystematic * systematic = fMTF->GetSystematic(isystematic);

      // remember old setting
      flag_systematic[isystematic] = systematic->GetFlagSystematicActive();

      // switch off systematic
      if (flag_systematic[isystematic])
         systematic->SetFlagSystematicActive(flag_syst);
   }

   // ---- switch on all channels ---- //

   // loop over all channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // remember old setting
      flag_channel[ichannel] = channel->GetFlagChannelActive();

      // switch channel on/off
      channel->SetFlagChannelActive(true);
   }

   // ---- perform analysis for combination ---- //
   if (flag_mcmc) {
      // work-around: force initialization
      fMTF->MCMCResetResults();

      // run mcmc
      fMTF->MarginalizeAll();

      // find mode
      fMTF->FindMode( fMTF->GetBestFitParameters() );
   }
   else {
      // find mode
      fMTF->FindMode();
   }

   // print results
   if (flag_mcmc)
      fMTF->PrintAllMarginalized("marginalized_combined.ps");
   fMTF->PrintResults("results_combined.txt");

   // loop over all parameters
   for (int i = 0; i < nparameters; ++ i) {
      // get comparison tool
      BCMTFComparisonTool * ct = ctc.at(i);
      BCMTFComparisonTool * ct_mcmc = ctc_mcmc.at(i);

      ct->AddContribution("all channels",
                                    fMTF->GetBestFitParameters().at(i),
                                    fMTF->GetBestFitParameterErrors().at(i));
      if (flag_mcmc) {
         BCH1D * hist = fMTF->GetMarginalized( fMTF->GetParameter(i) );

         ct_mcmc->AddContribution("all channels",
                                              hist->GetMean(),
                                              hist->GetRMS());
      }
   }

   // ---- switch off all channels ----//

   // loop over all channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // switch off channel
      channel->SetFlagChannelActive(false);
   }

   // ---- perform analysis on all channels separately ---- //

   // loop over all channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // switch on one channel
      channel->SetFlagChannelActive(true);

      // perform analysis

      if (flag_mcmc) {
         // work-around: force initialization
         fMTF->MCMCResetResults();

         // run mcmc
         fMTF->MarginalizeAll();

         // find mode
         fMTF->FindMode( fMTF->GetBestFitParameters() );
      }
      else {
         // find mode
         fMTF->FindMode();
      }

      // print results
      if (flag_mcmc)
         fMTF->PrintAllMarginalized(Form("marginalized_channel_%i.ps", ichannel));
      fMTF->PrintResults(Form("results_channel_%i.txt", ichannel));

      // ---- update comparison tools ---- //

      // loop over all parameters
      for (int i = 0; i < nparameters; ++ i) {
         // get comparison tool
         BCMTFComparisonTool * ct = ctc.at(i);
         BCMTFComparisonTool * ct_mcmc = ctc_mcmc.at(i);

         ct->AddContribution(channel->GetName().c_str(),
                                       fMTF->GetBestFitParameters().at(i),
                                       fMTF->GetBestFitParameterErrors().at(i));
         if (flag_mcmc) {
            BCH1D * hist = fMTF->GetMarginalized( fMTF->GetParameter(i) );

            ct_mcmc->AddContribution(channel->GetName().c_str(),
                                                 hist->GetMean(),
                                                 hist->GetRMS());
         }

         // switch off channel
         channel->SetFlagChannelActive(false);
      }
   }

   // ---- reset all systematics ---- //
   // loop over all systematics
   for (int isystematic = 0; isystematic < nsystematics; ++isystematic) {
      // get systematic
      BCMTFSystematic * systematic = fMTF->GetSystematic(isystematic);

      // switch off systematic
      if (flag_systematic[isystematic])
         systematic->SetFlagSystematicActive(flag_systematic[isystematic]);
   }

   // ---- reset all channels ---- //

   // loop over all channels
   for (int ichannel = 0; ichannel < nchannels; ++ichannel) {
      // get channel
      BCMTFChannel * channel = fMTF->GetChannel(ichannel);

      // switch channel on/off
      channel->SetFlagChannelActive(flag_channel[ichannel]);
   }

   // ---- workaround: reset MCMC ---- //
   fMTF->MCMCResetResults();

   // ---- print everything ---- //
   TCanvas * c1 = new TCanvas();
   c1->cd();

   // draw first one
   BCMTFComparisonTool * ct =  ctc.at(0);
   ct->DrawOverview();
   //   c1->Print((std::string(filename)+std::string("(")).c_str());
   c1->Print((std::string("overview.ps")+std::string("(")).c_str());

   // loop over all parameters
   for (int i = 1; i < nparameters-1; ++ i) {
      // create new comparison tool
      BCMTFComparisonTool * ct = ctc.at(i);

      ct->DrawOverview();
      c1->Print("overview.ps");
   }

   // draw last one
   ct =  ctc.at(nparameters-1);
   ct->DrawOverview();
   c1->Print((std::string("overview.ps")+std::string(")")).c_str());

   // ---- print everything (mcmc) ---- //
   if (flag_mcmc) {
      TCanvas * c2 = new TCanvas();
      c2->cd();

      // draw first one
      BCMTFComparisonTool * ct_mcmc =  ctc_mcmc.at(0);
      ct_mcmc->DrawOverview();
      //   c2->Print((std::string(filename)+std::string("(")).c_str());
      c2->Print((std::string("overview_mcmc.ps")+std::string("(")).c_str());

      // loop over all parameters
      for (int i = 1; i < nparameters-1; ++ i) {
         // create new comparison tool
         BCMTFComparisonTool * ct_mcmc = ctc_mcmc.at(i);

         ct_mcmc->DrawOverview();
         c2->Print("overview_mcmc.ps");
      }

      // draw last one
      ct_mcmc =  ctc_mcmc.at(nparameters-1);
      ct_mcmc->DrawOverview();
      c2->Print((std::string("overview_mcmc.ps")+std::string(")")).c_str());
      delete c2;
   }

   // ---- free memory ---- //
   for (int i = 0; i < nparameters; ++i) {
      BCMTFComparisonTool * ct = ctc[i];
      BCMTFComparisonTool * ct_mcmc = ctc_mcmc[i];
      delete ct;
      delete ct_mcmc;
   }
   ctc.clear();
   ctc_mcmc.clear();

   delete c1;

   // ---- change directory ---- //

   chdir("../");

   BCLog::OutSummary("Single channel analysis ran successfully");

   // no error
   return 1;
}

int BCMTFAnalysisFacility::PerformSingleSystematicAnalyses ( const char *  dirname,
const char *  options = ""
)

Perform the analysis using one systematic at a time, without systematic and with all systematics. The following options are available:
"mcmc" : use mcmc.

Parameters:
dirname The name of a directory into which the results are copied.
options A set of options.
Returns:
An error code.

Definition at line 893 of file BCMTFAnalysisFacility.cxx.

{
   BCLog::OutSummary(Form("Running single channel systematic analysis in directory \'%s\'.",dirname));

   // ---- create new directory ---- //

   mkdir(dirname, 0777);
   chdir(dirname);

   // ---- check options ---- //

   bool flag_mcmc = true;

   if (std::string(options).find("mcmc") < std::string(options).size())
      flag_mcmc = true;

   // get number of channels
   int nchannels = fMTF->GetNChannels();

   // get number of systematics
   int nsystematics = fMTF->GetNSystematics();

   // container of flags for channels
   std::vector<bool> flag_channel(nchannels);

   // container of flags for systematics
   std::vector<bool> flag_systematic(nsystematics);

   // create new container of comparison tools
   std::vector<BCMTFComparisonTool *> ctc;

   // get number of parameters
   int nparameters = fMTF->GetNParameters();

   // ---- add one comparison tool for each systematic ---- //

   // loop over all parameters
   for (int i = 0; i < nparameters; ++ i) {
      // create new comparison tool
      BCMTFComparisonTool * ct = new BCMTFComparisonTool(fMTF->GetParameter(i)->GetName().c_str());

      // add comparison tool to container
      ctc.push_back(ct);
   }

   // ---- switch on all systematics ---- //

   for (int isystematic = 0; isystematic < nsystematics; ++ isystematic) {
      // get systematic
      BCMTFSystematic * systematic = fMTF->GetSystematic(isystematic);

      // remember old setting
      flag_systematic[isystematic] = systematic->GetFlagSystematicActive();

      // switch on
      systematic->SetFlagSystematicActive(true);
   }

   if (flag_mcmc) {
      // work-around: force initialization
      fMTF->MCMCResetResults();

      // run mcmc
      fMTF->MarginalizeAll();

      // find mode
      fMTF->FindMode( fMTF->GetBestFitParameters() );
   }
   else {
      // find mode
      fMTF->FindMode();
   }

   // print results
   if (flag_mcmc)
      fMTF->PrintAllMarginalized("marginalized_all.ps");
   fMTF->PrintResults("results_all.txt");

   // loop over all parameters
   for (int i = 0; i < nparameters; ++ i) {
      // get comparison tool
      BCMTFComparisonTool * ct = ctc.at(i);

      ct->AddContribution("all systematics",
                                    fMTF->GetBestFitParameters().at(i),
                                    fMTF->GetBestFitParameterErrors().at(i));
   }

   // ---- switch off all systematics ---- //

   // loop over all systematics
   for (int isystematic = 0; isystematic < nsystematics; ++isystematic) {
      // get systematic
      BCMTFSystematic * systematic = fMTF->GetSystematic(isystematic);

      // switch off
      systematic->SetFlagSystematicActive(false);
   }

   // ---- perform analysis with all systematics separately ---- //

   // loop over all channels
   for (int isystematic = 0; isystematic < nsystematics; ++isystematic) {
      // get systematic
      BCMTFSystematic * systematic = fMTF->GetSystematic(isystematic);

      // switch on systematic
      systematic->SetFlagSystematicActive(true);

      // perform analysis
      if (flag_mcmc) {
         // work-around: force initialization
         fMTF->MCMCResetResults();

         // run mcmc
         fMTF->MarginalizeAll();

         // find mode
         fMTF->FindMode( fMTF->GetBestFitParameters() );
      }
      else {
         // find mode
         fMTF->FindMode();
      }

      // print results
      if (flag_mcmc)
         fMTF->PrintAllMarginalized(Form("marginalized_systematic_%i.ps", isystematic));
      fMTF->PrintResults(Form("results_systematic_%i.txt", isystematic));

      // ---- update comparison tools ---- //

      // loop over all parameters
      for (int i = 0; i < nparameters; ++ i) {
         // get comparison tool
         BCMTFComparisonTool * ct = ctc.at(i);

         ct->AddContribution(systematic->GetName().c_str(),
                                       fMTF->GetBestFitParameters().at(i),
                                       fMTF->GetBestFitParameterErrors().at(i));
      }

      // switch off systematic
      systematic->SetFlagSystematicActive(false);
   }

   // ---- analysis without any systematic uncertainty ---- //

   if (flag_mcmc) {
      // work-around: force initialization
      fMTF->MCMCResetResults();

      // run mcmc
      fMTF->MarginalizeAll();

      // find mode
      fMTF->FindMode( fMTF->GetBestFitParameters() );
   }
   else {
      // find mode
      fMTF->FindMode();
   }

   // print results
   if (flag_mcmc)
      fMTF->PrintAllMarginalized("marginalized_none.ps");
   fMTF->PrintResults("results_none.txt");

   // loop over all parameters
   for (int i = 0; i < nparameters; ++ i) {
      // get comparison tool
      BCMTFComparisonTool * ct = ctc.at(i);

      ct->AddContribution("no systematics",
                                    fMTF->GetBestFitParameters().at(i),
                                    fMTF->GetBestFitParameterErrors().at(i));
   }



   // ---- reset all systematics ---- //

   // loop over all systematics
   for (int isystematic = 0; isystematic < nsystematics; ++isystematic) {
      // get systematic
      BCMTFSystematic * systematic = fMTF->GetSystematic(isystematic);

      // switch off systematic
      if (flag_systematic[isystematic])
         systematic->SetFlagSystematicActive(flag_systematic[isystematic]);
   }

   // ---- workaround: reset MCMC ---- //
   fMTF->MCMCResetResults();

   // ---- print everything ---- //
   TCanvas * c1 = new TCanvas();
   c1->cd();

   // draw first one
   BCMTFComparisonTool * ct =  ctc.at(0);
   ct->DrawOverview();
   //   c1->Print((std::string(filename)+std::string("(")).c_str());
   c1->Print((std::string("overview.ps")+std::string("(")).c_str());

   // loop over all parameters
   for (int i = 1; i < nparameters-1; ++i) {
      // create new comparison tool
      BCMTFComparisonTool * ct = ctc.at(i);

      ct->DrawOverview();
      c1->Print("overview.ps");
   }

   // draw last one
   ct =  ctc.at(nparameters-1);
   ct->DrawOverview();
   c1->Print((std::string("overview.ps")+std::string(")")).c_str());

   // ---- free memory ---- //
   for (int i = 0; i < nparameters; ++i) {
      BCMTFComparisonTool * ct = ctc[i];
      delete ct;
   }
   ctc.clear();

   delete c1;

   // ---- change directory ---- //

   chdir("../");

   BCLog::OutSummary("Single channel analysis ran successfully");

   // no error
   return 1;
}

void BCMTFAnalysisFacility::SetBCMTF ( BCMTF *  mtf  )  [inline]

Set the pointer to an MTF object.

Parameters:
mtf The MTF object.

Definition at line 67 of file BCMTFAnalysisFacility.h.

         { fMTF = mtf; };

void BCMTFAnalysisFacility::SetFlagMCMC ( bool  flag  )  [inline]

Set a flag for using MCMC (true) or not (false).

Parameters:
flag The flag.

Definition at line 73 of file BCMTFAnalysisFacility.h.

         { fFlagMCMC = flag; };

void BCMTFAnalysisFacility::SetLogLevel ( BCLog::LogLevel  level  )  [inline]

Set the log level for the ensemble test.

Parameters:
level The log level.

Definition at line 91 of file BCMTFAnalysisFacility.h.

         { fLogLevel=level; };

Member Data Documentation

bool BCMTFAnalysisFacility::fFlagMCMC [private]

A flag defining the use of MCMC for the analyses.

Definition at line 178 of file BCMTFAnalysisFacility.h.

BCLog::LogLevel BCMTFAnalysisFacility::fLogLevel [private]

The log level for the ensemble tests.

Definition at line 182 of file BCMTFAnalysisFacility.h.

BCMTF* BCMTFAnalysisFacility::fMTF [private]

The MTF object.

Definition at line 170 of file BCMTFAnalysisFacility.h.

TRandom3* BCMTFAnalysisFacility::fRandom [private]

A random number generator.

Definition at line 174 of file BCMTFAnalysisFacility.h.

The documentation for this class was generated from the following files:
Generated by  doxygen 1.7.1
