BCModelOutput Class Reference

A class for creating an (ROOT) output file. More...

#include <BCModelOutput.h>

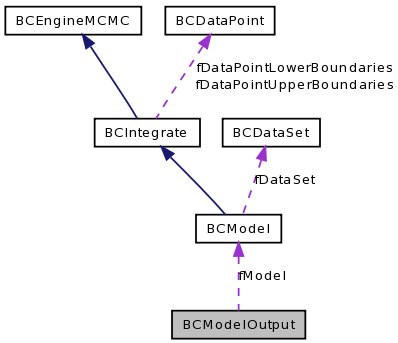

Collaboration diagram for BCModelOutput:

Collaboration graph
[legend]
List of all members.

Public Member Functions

Assignment operators
BCModelOutput & operator= (const BCModelOutput &modeloutput)
Getters
TTree * GetAnalysisTree ()
TFile * GetFile ()
Setters
void SetModel (BCModel *model)
void SetFile (const char *filename)
Member functions (miscellaneous methods)
void WriteMarkovChain (bool flag=true)
void FillAnalysisTree ()
void WriteMarginalizedDistributions ()
void WriteErrorBand ()
void Write (TObject *o)
void Close ()

Private Member Functions

void Init ()
void Copy (BCModelOutput &modeloutput) const
void InitializeAnalysisTree ()
void InitializeMarkovChainTrees ()
void InitializeSATree ()

Private Attributes

TTree * fAnalysisTree
std::vector< TTree * > fMarkovChainTrees
TTree * fTreeSA
char * fFileName
TFile * fOutputFile
BCModel * fModel
int fIndex
unsigned int fNParameters
double fProbability_apriori
double fProbability_aposteriori
double fMode_global [MAXNPARAMETERS]
double fMode_marginalized [MAXNPARAMETERS]
double fMean_marginalized [MAXNPARAMETERS]
double fMedian_marginalized [MAXNPARAMETERS]
double fQuantile_05 [MAXNPARAMETERS]
double fQuantile_10 [MAXNPARAMETERS]
double fQuantile_16 [MAXNPARAMETERS]
double fQuantile_84 [MAXNPARAMETERS]
double fQuantile_90 [MAXNPARAMETERS]
double fQuantile_95 [MAXNPARAMETERS]
std::vector< double > * fParameters
std::vector< double > * fLogLikelihood
std::vector< int > * fIteration
int * fSAIteration
int fSANParameters
double * fSATemperature
double * fSALogProb
std::vector< double > * fSAParameters

Detailed Description

A class for creating an (ROOT) output file.

Author:
Daniel Kollar

Kevin Kröninger

Version:
1.0
Date:
08.2008 This class defines an output interface for the analysis. It creates a ROOT file which can contain summary information, histograms and Markov chains.

Definition at line 39 of file BCModelOutput.h.

Constructor & Destructor Documentation

BCModelOutput::BCModelOutput (  )

The default constructor.

Definition at line 29 of file BCModelOutput.cxx.

00030 {
00031    Init();
00032 }

BCModelOutput::BCModelOutput ( BCModel *  model,
const char *  filenname
)

A constructor.

Parameters:
model The model to which this output class is assigned.
filename Name of the output file.

Definition at line 35 of file BCModelOutput.cxx.

00036 {
00037    Init();
00038    SetModel(model);
00039    SetFile(filename);
00040 }

BCModelOutput::BCModelOutput ( const BCModelOutput &  modeloutput  )

The default copy constructor.

Definition at line 52 of file BCModelOutput.cxx.

00053 {
00054    modeloutput.Copy(* this);
00055 }

BCModelOutput::~BCModelOutput (  )  [virtual]

The default destructor.

Definition at line 43 of file BCModelOutput.cxx.

00044 {
00045    if (fOutputFile) {
00046       fOutputFile -> Close();
00047       delete fOutputFile;
00048    }
00049 }

BCModelOutput::BCModelOutput (  )

The default constructor.

Definition at line 29 of file BCModelOutput.cxx.

00030 {
00031    Init();
00032 }

BCModelOutput::BCModelOutput ( BCModel *  model,
const char *  filenname
)

A constructor.

Parameters:
model The model to which this output class is assigned.
filename Name of the output file.

Definition at line 35 of file BCModelOutput.cxx.

00036 {
00037    Init();
00038    SetModel(model);
00039    SetFile(filename);
00040 }

BCModelOutput::BCModelOutput ( const BCModelOutput &  modeloutput  )

The default copy constructor.

Definition at line 52 of file BCModelOutput.cxx.

00053 {
00054    modeloutput.Copy(* this);
00055 }

BCModelOutput::~BCModelOutput (  )  [virtual]

The default destructor.

Definition at line 43 of file BCModelOutput.cxx.

00044 {
00045    if (fOutputFile) {
00046       fOutputFile -> Close();
00047       delete fOutputFile;
00048    }
00049 }

Member Function Documentation

BCModelOutput & BCModelOutput::operator= ( const BCModelOutput &  modeloutput  )

The defaut assignment operator

Definition at line 58 of file BCModelOutput.cxx.

00059 {
00060    if (this != &modeloutput)
00061       modeloutput.Copy(* this);
00062
00063    return * this;
00064 }

TTree* BCModelOutput::GetAnalysisTree (  )  [inline]

Returns the output TTree tree.

Returns:
The pointer to the output TTree

Definition at line 81 of file BCModelOutput.h.

00082          { return fAnalysisTree; };

TFile* BCModelOutput::GetFile (  )  [inline]

Returns the output TFile.

Returns:
The pointer to the output TFile

Definition at line 87 of file BCModelOutput.h.

00088          { return fOutputFile; };

void BCModelOutput::SetModel ( BCModel *  model  )

Assign a BCModel to this output class.

Parameters:
model A pointer to the BCModel

Definition at line 78 of file BCModelOutput.cxx.

00079 {
00080    fModel = model;
00081    fModel -> MCMCInitialize();
00082    fModel -> SAInitialize();
00083 }

void BCModelOutput::SetFile ( const char *  filename  )

Sets the output filename.

Parameters:
filename The filename

Definition at line 86 of file BCModelOutput.cxx.

00087 {
00088    // delete the old file
00089    if (fOutputFile)
00090    {
00091       fOutputFile -> Close();
00092       delete fOutputFile;
00093    }
00094
00095    // remember current directory
00096    TDirectory * dir = gDirectory;
00097
00098    // create a new file
00099    fFileName = const_cast<char *>(filename);
00100    fOutputFile = new TFile(fFileName, "RECREATE");
00101
00102    // initialize trees
00103    InitializeAnalysisTree();
00104    InitializeMarkovChainTrees();
00105    InitializeSATree();
00106
00107    // change back to the old directory
00108    gDirectory = dir;
00109 }

void BCModelOutput::WriteMarkovChain ( bool  flag = true  )

Flag for writing Markov chain to file

Parameters:
flag Writes (true) or does not write (false) the Markov chain

Definition at line 112 of file BCModelOutput.cxx.

00113 {
00114    if (fModel)
00115       fModel -> WriteMarkovChain(flag);
00116 }

void BCModelOutput::FillAnalysisTree (  )

Fill the output TTree with the current information.

Definition at line 119 of file BCModelOutput.cxx.

00120 {
00121    if(!fOutputFile)
00122    {
00123       BCLog::OutError("BCModelOutput::FillAnalysisTree : No file to write to.");
00124       return;
00125    }
00126
00127    // get output values from model
00128    fNParameters = fModel -> GetNParameters();
00129    fProbability_apriori   = fModel -> GetModelAPrioriProbability();
00130    fProbability_aposteriori = fModel -> GetModelAPosterioriProbability();
00131
00132    // loop over parameters
00133    int nparameters = fModel -> GetNParameters();
00134    for (int i = 0; i < nparameters; ++i)
00135    {
00136       BCParameter * parameter = fModel -> GetParameter(i);
00137       if (fModel -> GetBestFitParameters().size() > 0)
00138          fMode_global[i] = fModel -> GetBestFitParameters().at(i);
00139       if (fModel -> GetMarginalized(parameter -> GetName().data()))
00140       {
00141          fMode_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMode();
00142          fMean_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMean();
00143          fMedian_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMedian();
00144          fQuantile_05[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.05);
00145          fQuantile_10[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.10);
00146          fQuantile_16[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.16);
00147          fQuantile_84[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.84);
00148          fQuantile_90[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.90);
00149          fQuantile_95[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.95);
00150       }
00151    }
00152
00153    // fill tree
00154    fAnalysisTree -> Fill();
00155
00156    // increase index
00157    fIndex++;
00158 }

void BCModelOutput::WriteMarginalizedDistributions (  )

Writes the marginalized histograms to the TFile.

Definition at line 161 of file BCModelOutput.cxx.

00162 {
00163    if(!fOutputFile)
00164    {
00165       BCLog::OutError("BCModelOutput::WriteMarginalizedDistributions : No file to write to.");
00166       return;
00167    }
00168
00169    // remember current directory
00170    TDirectory * dir = gDirectory;
00171
00172    // change to file
00173    fOutputFile -> cd();
00174
00175    int nparameters = fModel -> GetNParameters();
00176    for (int i = 0; i < nparameters; ++i)
00177       fModel -> GetMarginalized(fModel -> GetParameter(i)) -> GetHistogram() -> Write();
00178
00179    if (nparameters > 1)
00180       for (int i = 0; i < nparameters - 1; ++i)
00181          for (int j = i + 1; j < nparameters; ++j)
00182             fModel -> GetMarginalized(fModel -> GetParameter(i),
00183                   fModel -> GetParameter(j)) -> GetHistogram() -> Write();
00184
00185    // return to old directory
00186    gDirectory = dir;
00187 }

void BCModelOutput::WriteErrorBand (  )

Writes the error band histogram into the TFile.

Definition at line 190 of file BCModelOutput.cxx.

00191 {
00192    if(!fOutputFile)
00193    {
00194       BCLog::OutError("BCModelOutput::WriteErrorBand : No file to write to.");
00195       return;
00196    }
00197
00198    // remember current directory
00199    TDirectory * dir = gDirectory;
00200
00201    // change to file
00202    fOutputFile -> cd();
00203
00204    TH2D * h0 = fModel -> GetErrorBandXY();
00205    if (h0)
00206    {
00207       TH2D * h1 = (TH2D*)h0 -> Clone("errorbandxy");
00208       h1 -> Write();
00209
00210       double levels[] = { .68, .90, .95 };
00211       int nlevels = sizeof(levels)/sizeof(double);
00212       for (int i=0;i<nlevels;i++)
00213       {
00214          TH2D * htmp = fModel -> GetErrorBandXY_yellow(levels[i]);
00215          htmp -> SetName(TString::Format("%s_sub_%f.2",h1->GetName(),levels[i]));
00216          htmp -> Write();
00217          delete htmp;
00218       }
00219
00220       delete h1;
00221    }
00222
00223    // return to old directory
00224    gDirectory = dir;
00225 }

void BCModelOutput::Write ( TObject *  o  )

Writes any object derived from TObject to TFile.

Definition at line 228 of file BCModelOutput.cxx.

00229 {
00230    if(!fOutputFile)
00231    {
00232       BCLog::OutError("BCModelOutput::Write : No file to write to.");
00233       return;
00234    }
00235
00236    // remember current directory
00237    TDirectory * dir = gDirectory;
00238
00239    // change to file
00240    fOutputFile -> cd();
00241
00242    o -> Write();
00243
00244    // return to old directory
00245    gDirectory = dir;
00246 }

void BCModelOutput::Close (  )

Closes the TFile.

Definition at line 249 of file BCModelOutput.cxx.

00250 {
00251    // remember current directory
00252    TDirectory * dir = gDirectory;
00253
00254    // change to file
00255    fOutputFile -> cd();
00256
00257    // write analysis tree to file
00258    if (fAnalysisTree -> GetEntries() > 0)
00259       fAnalysisTree -> Write();
00260
00261    // write markov chain tree to file
00262    for (int i = 0; i < fModel -> MCMCGetNChains(); ++i)
00263       if (fMarkovChainTrees[i] -> GetEntries() > 0)
00264          fMarkovChainTrees[i] -> Write();
00265
00266    // write SA tree to file
00267    if (fTreeSA -> GetEntries() > 0)
00268       fTreeSA -> Write();
00269
00270    // close file
00271    fOutputFile -> Close();
00272
00273    // return to old directory
00274    gDirectory = dir;
00275 }

void BCModelOutput::Init (  )  [private]

Initialize the variables

Definition at line 67 of file BCModelOutput.cxx.

00068 {
00069    fIndex = 0;
00070    fOutputFile = 0;
00071    fAnalysisTree = 0;
00072    fTreeSA = 0;
00073    fModel = 0;
00074    fFileName = 0;
00075 }

void BCModelOutput::Copy ( BCModelOutput &  modeloutput  )  const [private]

Definition at line 361 of file BCModelOutput.cxx.

00362 {
00363    // don't copy the content
00364    modeloutput.fModel            = this -> fModel;
00365    modeloutput.fAnalysisTree     = this -> fAnalysisTree;
00366    modeloutput.fMarkovChainTrees = this -> fMarkovChainTrees;
00367 }

void BCModelOutput::InitializeAnalysisTree (  )  [private]

Initialize the output TTree.

Definition at line 278 of file BCModelOutput.cxx.

00279 {
00280    // create new tree
00281    fAnalysisTree = new TTree("AnalysisTree", "AnalysisTree");
00282
00283    // set branch addresses
00284    fAnalysisTree -> Branch("fIndex",                   &fIndex,                   "index/I");
00285    fAnalysisTree -> Branch("fNParameters",             &fNParameters,             "parameters/I");
00286    fAnalysisTree -> Branch("fProbability_apriori" ,    &fProbability_apriori,     "apriori probability/D");
00287    fAnalysisTree -> Branch("fProbability_aposteriori", &fProbability_aposteriori, "aposteriori probability/D");
00288    fAnalysisTree -> Branch("fMode_global",              fMode_global,             "mode (global) [parameters]/D");
00289    fAnalysisTree -> Branch("fMode_marginalized",        fMode_marginalized,       "mode (marginalized) [parameters]/D");
00290    fAnalysisTree -> Branch("fMean_marginalized",        fMean_marginalized,       "mean (marginalized)[parameters]/D");
00291    fAnalysisTree -> Branch("fMedian_marginalized",      fMedian_marginalized,     "median (marginalized)[parameters]/D");
00292    fAnalysisTree -> Branch("fQuantile_05" ,             fQuantile_05,             "quantile 5% [parameters]/D");
00293    fAnalysisTree -> Branch("fQuantile_10" ,             fQuantile_10,             "quantile 10% [parameters]/D");
00294    fAnalysisTree -> Branch("fQuantile_16" ,             fQuantile_16,             "quantile 16% [parameters]/D");
00295    fAnalysisTree -> Branch("fQuantile_84" ,             fQuantile_84,             "quantile 84% [parameters]/D");
00296    fAnalysisTree -> Branch("fQuantile_90" ,             fQuantile_90,             "quantile 90% [parameters]/D");
00297    fAnalysisTree -> Branch("fQuantile_95" ,             fQuantile_95,             "quantile 95% [parameters]/D");
00298 }

void BCModelOutput::InitializeMarkovChainTrees (  )  [private]

Initialize the Markov Chain TTree.

Definition at line 301 of file BCModelOutput.cxx.

00302 {
00303    // create new tree
00304    fMarkovChainTrees.clear();
00305    for (int i = 0; i < fModel -> MCMCGetNChains(); ++i)
00306    {
00307       TTree * tree = new TTree(TString::Format("MarkovChainTree_%i", i), "MarkovChainTree");
00308       fMarkovChainTrees.push_back(tree);
00309    }
00310
00311    // connect pointer to parameter vectors
00312    fParameters    = fModel -> MCMCGetP2x();
00313    fIteration     = fModel -> MCMCGetP2NIterations();
00314    fLogLikelihood = fModel -> MCMCGetP2LogProbx();
00315    fNParameters   = fModel -> MCMCGetNParameters();
00316
00317    for (int i = 0; i < fModel -> MCMCGetNChains(); ++i)
00318    {
00319       fMarkovChainTrees[i] -> Branch("fIteration",      &(*fIteration)[i],   "iteration/I");
00320       fMarkovChainTrees[i] -> Branch("fNParameters",    &fNParameters,       "parameters/I");
00321       fMarkovChainTrees[i] -> Branch("fLogLikelihood",  &(*fLogLikelihood)[i], "log (likelihood)/D");
00322    }
00323
00324    // loop over all parameters
00325    for (int i = 0; i < fModel -> MCMCGetNChains(); ++i)
00326       for (int j = 0; j <  fModel -> MCMCGetNParameters(); ++j)
00327       {
00328          fMarkovChainTrees[i] -> Branch(TString::Format("fParameter%i", j),
00329                &(*fParameters)[i * fModel -> MCMCGetNParameters() + j],
00330                TString::Format("parameter %i/D", j));
00331       }
00332
00333    fModel -> MCMCSetMarkovChainTrees(fMarkovChainTrees);
00334 }

void BCModelOutput::InitializeSATree (  )  [private]

Initialize SA TTree.

Definition at line 337 of file BCModelOutput.cxx.

00338 {
00339    fTreeSA = new TTree("SATree", "SATree");
00340
00341    // connect pointer to parameter vectors
00342    fSAIteration     = fModel -> GetSAP2NIterations();
00343    fSATemperature   = fModel -> GetSAP2Temperature();
00344    fSALogProb       = fModel -> GetSAP2LogProb();
00345    fSAParameters    = fModel -> GetSAP2x();
00346    fSANParameters   = fModel -> GetNParameters();
00347
00348    fTreeSA -> Branch("Iteration",    fSAIteration,   "iteration/I");
00349    fTreeSA -> Branch("NParameters", &fSANParameters, "parameters/I");
00350    fTreeSA -> Branch("Temperature",  fSATemperature, "temperature/D");
00351    fTreeSA -> Branch("LogProb",      fSALogProb,     "log probability/D");
00352    for (int j = 0; j <  fModel -> MCMCGetNParameters(); ++j)
00353       fTreeSA -> Branch(TString::Format("Parameter%i", j),
00354                                  &(*fSAParameters)[j],
00355                                  TString::Format("parameter %i/D", j));
00356
00357    fModel -> SetSATree(fTreeSA);
00358 }

Member Data Documentation

TTree* BCModelOutput::fAnalysisTree [private]

Pointer to the TTree containing the summary output information.

Definition at line 162 of file BCModelOutput.h.

std::vector<TTree *> BCModelOutput::fMarkovChainTrees [private]

Definition at line 167 of file BCModelOutput.h.

TTree* BCModelOutput::fTreeSA [private]

Definition at line 171 of file BCModelOutput.h.

char* BCModelOutput::fFileName [private]

The output filename

Definition at line 175 of file BCModelOutput.h.

TFile* BCModelOutput::fOutputFile [private]

Pointer to the output TFile.

Definition at line 179 of file BCModelOutput.h.

BCModel* BCModelOutput::fModel [private]

Pointer to the model this output class is assigned to

Definition at line 183 of file BCModelOutput.h.

int BCModelOutput::fIndex [private]

The analysis tree variables

Definition at line 187 of file BCModelOutput.h.

unsigned int BCModelOutput::fNParameters [private]

Definition at line 188 of file BCModelOutput.h.

double BCModelOutput::fProbability_apriori [private]

Definition at line 189 of file BCModelOutput.h.

double BCModelOutput::fProbability_aposteriori [private]

Definition at line 190 of file BCModelOutput.h.

double BCModelOutput::fMode_global[MAXNPARAMETERS] [private]

Definition at line 191 of file BCModelOutput.h.

double BCModelOutput::fMode_marginalized[MAXNPARAMETERS] [private]

Definition at line 192 of file BCModelOutput.h.

double BCModelOutput::fMean_marginalized[MAXNPARAMETERS] [private]

Definition at line 193 of file BCModelOutput.h.

double BCModelOutput::fMedian_marginalized[MAXNPARAMETERS] [private]

Definition at line 194 of file BCModelOutput.h.

double BCModelOutput::fQuantile_05[MAXNPARAMETERS] [private]

Definition at line 195 of file BCModelOutput.h.

double BCModelOutput::fQuantile_10[MAXNPARAMETERS] [private]

Definition at line 196 of file BCModelOutput.h.

double BCModelOutput::fQuantile_16[MAXNPARAMETERS] [private]

Definition at line 197 of file BCModelOutput.h.

double BCModelOutput::fQuantile_84[MAXNPARAMETERS] [private]

Definition at line 198 of file BCModelOutput.h.

double BCModelOutput::fQuantile_90[MAXNPARAMETERS] [private]

Definition at line 199 of file BCModelOutput.h.

double BCModelOutput::fQuantile_95[MAXNPARAMETERS] [private]

Definition at line 200 of file BCModelOutput.h.

std::vector<double>* BCModelOutput::fParameters [private]

The markov chain tree variables

Definition at line 204 of file BCModelOutput.h.

std::vector<double>* BCModelOutput::fLogLikelihood [private]

Definition at line 205 of file BCModelOutput.h.

std::vector<int>* BCModelOutput::fIteration [private]

Definition at line 206 of file BCModelOutput.h.

int* BCModelOutput::fSAIteration [private]

The simulated annealing tree variables

Definition at line 210 of file BCModelOutput.h.

int BCModelOutput::fSANParameters [private]

Definition at line 211 of file BCModelOutput.h.

double* BCModelOutput::fSATemperature [private]

Definition at line 212 of file BCModelOutput.h.

double* BCModelOutput::fSALogProb [private]

Definition at line 213 of file BCModelOutput.h.

std::vector<double>* BCModelOutput::fSAParameters [private]

Definition at line 214 of file BCModelOutput.h.

The documentation for this class was generated from the following files:
Generated on Thu Feb 11 11:29:37 2010 for BayesianAnalysisToolkit by  doxygen 1.5.1
