BCHistogramFitter Class Reference

A class for fitting histograms with functions. More...

#include <BCHistogramFitter.h>

Inherits BCModel.

Inheritance diagram for BCHistogramFitter:

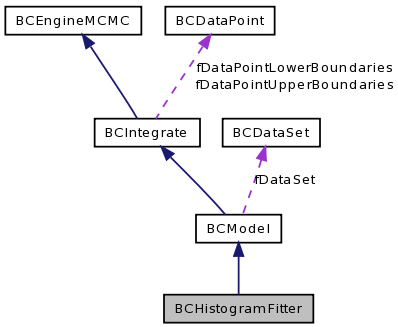

[legend]Collaboration diagram for BCHistogramFitter:

[legend]List of all members.

Public Member Functions
Member functions (get)
TH1D *	GetHistogram ()
TF1 *	GetFitFunction ()
TGraph *	GetErrorBand ()
TGraph *	GetGraphFitFunction ()
Member functions (set)
int	SetHistogram (TH1D *hist)
int	SetFitFunction (TF1 *func)
void	SetFlagIntegration (bool flag)
Member functions (miscellaneous methods)
virtual double	LogAPrioriProbability (std::vector< double > parameters)
virtual double	LogLikelihood (std::vector< double > parameters)
double	FitFunction (std::vector< double > x, std::vector< double > parameters)
int	Fit ()
int	Fit (TH1D *hist, TF1 *func)
void	DrawFit (const char *options="", bool flaglegend=false)
int	CalculatePValueFast (std::vector< double > par, double &pvalue)
int	CalculatePValueLikelihood (std::vector< double > par, double &pvalue)
int	CalculatePValueLeastSquares (std::vector< double > par, double &pvalue, bool weightExpect=true)
double	CDF (const std::vector< double > &parameters, int index, bool lower=false)
Private Attributes
TH1D *	fHistogram
TF1 *	fFitFunction
bool	fFlagIntegration
TGraph *	fErrorBand
TGraph *	fGraphFitFunction

---

Detailed Description

A class for fitting histograms with functions.

Author:

Daniel Kollar

Kevin Kröninger

Version:

1.0

Date:

11.2008 This class allows fitting of a TH1D histogram using a TF1 function.

Definition at line 34 of file BCHistogramFitter.h.

---

Constructor & Destructor Documentation

BCHistogramFitter::BCHistogramFitter

(

)

The default constructor.

Definition at line 30 of file BCHistogramFitter.cxx.

                                     :
   BCModel("HistogramFitter")
{
   fHistogram = 0;
   fFitFunction = 0;

   // set default options and values
   this -> MCMCSetNIterationsRun(2000);
   this -> SetFillErrorBand();
   fFlagIntegration = true;
   flag_discrete = true;
}

BCHistogramFitter::BCHistogramFitter	(	TH1D *	hist,
		TF1 *	func
	)

A constructor.

Parameters:

	hist	The histogram (TH1D).
	func	The fit function.

Definition at line 45 of file BCHistogramFitter.cxx.

                                                            :
   BCModel("HistogramFitter")
{
   fHistogram = 0;
   fFitFunction = 0;

   this -> SetHistogram(hist);
   this -> SetFitFunction(func);

   this -> MCMCSetNIterationsRun(2000);
   this -> SetFillErrorBand();
   fFlagIntegration = true;
   flag_discrete = true;
}

BCHistogramFitter::~BCHistogramFitter

(

)

The default destructor.

Definition at line 153 of file BCHistogramFitter.cxx.

{
}

BCHistogramFitter::BCHistogramFitter

(

)

The default constructor.

Definition at line 30 of file BCHistogramFitter.cxx.

                                     :
   BCModel("HistogramFitter")
{
   fHistogram = 0;
   fFitFunction = 0;

   // set default options and values
   this -> MCMCSetNIterationsRun(2000);
   this -> SetFillErrorBand();
   fFlagIntegration = true;
   flag_discrete = true;
}

BCHistogramFitter::BCHistogramFitter	(	TH1D *	hist,
		TF1 *	func
	)

A constructor.

Parameters:

	hist	The histogram (TH1D).
	func	The fit function.

Definition at line 45 of file BCHistogramFitter.cxx.

                                                            :
   BCModel("HistogramFitter")
{
   fHistogram = 0;
   fFitFunction = 0;

   this -> SetHistogram(hist);
   this -> SetFitFunction(func);

   this -> MCMCSetNIterationsRun(2000);
   this -> SetFillErrorBand();
   fFlagIntegration = true;
   flag_discrete = true;
}

BCHistogramFitter::~BCHistogramFitter

(

)

The default destructor.

Definition at line 153 of file BCHistogramFitter.cxx.

{
}

---

Member Function Documentation

TH1D* BCHistogramFitter::GetHistogram

(

)

[inline]

Returns:

The histogram

Definition at line 62 of file BCHistogramFitter.h.

         { return fHistogram; };

TF1* BCHistogramFitter::GetFitFunction

(

)

[inline]

Returns:

The fit function

Definition at line 67 of file BCHistogramFitter.h.

         { return fFitFunction; };

TGraph* BCHistogramFitter::GetErrorBand

(

)

[inline]

Returns:

pointer to the error band

Definition at line 72 of file BCHistogramFitter.h.

         { return fErrorBand; };

TGraph* BCHistogramFitter::GetGraphFitFunction

(

)

[inline]

Returns:

pointer to a graph for the fit function

Definition at line 77 of file BCHistogramFitter.h.

         { return fGraphFitFunction; };

int BCHistogramFitter::SetHistogram

(

TH1D *

hist

)

Parameters:

hist

The histogram @ return An error code (1:pass, 0:fail).

Definition at line 62 of file BCHistogramFitter.cxx.

{
   // check if histogram exists
   if (!hist) {
      BCLog::Out(BCLog::error, BCLog::error,
            "BCHistogramFitter::SetHistogram() : TH1D not created.");
      return 0;
   }

   // set pointer to histogram
   fHistogram = hist;

   // create a data set. this is necessary in order to calculate the
   // error band. the data set contains as many data points as there
   // are bins. for now, the data points are empty.
   BCDataSet * ds = new BCDataSet();

   // create data points and add them to the data set.
   int nbins = fHistogram -> GetNbinsX();
   for (int i = 0; i < nbins; ++i) {
      BCDataPoint* dp = new BCDataPoint(2);
      ds -> AddDataPoint(dp);
   }

   // set the new data set.
   this -> SetDataSet(ds);

   // calculate the lower and upper edge in x.
   double xmin = hist -> GetBinLowEdge(1);
   double xmax = hist -> GetBinLowEdge(nbins + 1);

   // calculate the minimum and maximum range in y.
   double histymin = hist -> GetMinimum();
   double histymax = hist -> GetMaximum();

   // calculate the minimum and maximum of the function value based on
   // the minimum and maximum value in y.
   double ymin = TMath::Max(0., histymin - 5. * sqrt(histymin));
   double ymax = histymax + 5. * sqrt(histymax);

   // set the data boundaries for x and y values.
   this -> SetDataBoundaries(0, xmin, xmax);
   this -> SetDataBoundaries(1, ymin, ymax);

   // set the indeces for fitting.
   this -> SetFitFunctionIndices(0, 1);

   // no error
   return 1;
}

int BCHistogramFitter::SetFitFunction

(

TF1 *

func

)

Parameters:

func

The fit function @ return An error code (1:pass, 0:fail).

Definition at line 115 of file BCHistogramFitter.cxx.

{
   // check if function exists
   if (!func) {
      BCLog::Out(BCLog::error, BCLog::error,
            "BCHistogramFitter::SetFitFunction() : TF1 not created.");
      return 0;
   }

   // set the function
   fFitFunction = func;

   // update the model name to contain the function name
   this -> SetName(TString::Format("HistogramFitter with %s",
         fFitFunction->GetName()));

   // reset parameters
   fParameterSet -> clear();

   // get the new number of parameters
   int n = func -> GetNpar();

   // add parameters
   for (int i = 0; i < n; ++i) {
      double xmin;
      double xmax;

      func -> GetParLimits(i, xmin, xmax);

      this -> AddParameter(func->GetParName(i), xmin, xmax);
   }

   // no error
   return 1;
}

void BCHistogramFitter::SetFlagIntegration

(

bool

flag

)

[inline]

Sets the flag for integration.
true: use ROOT's TH1D::Integrate()
false: use linear interpolation

Definition at line 101 of file BCHistogramFitter.h.

         { fFlagIntegration = flag; };

double BCHistogramFitter::LogAPrioriProbability

(

std::vector< double >

parameters

)

[virtual]

The log of the prior probability. Overloaded from BCModel.

Parameters:

parameters

A vector of doubles containing the parameter values.

Reimplemented from BCModel.

Definition at line 159 of file BCHistogramFitter.cxx.

{
   // using flat probability in all parameters
   double logprob = 0.;
   for (unsigned int i = 0; i < this -> GetNParameters(); i++)
      logprob -= log(this -> GetParameter(i) -> GetRangeWidth());

   return logprob;
}

double BCHistogramFitter::LogLikelihood

(

std::vector< double >

parameters

)

[virtual]

The log of the conditional probability. Overloaded from BCModel.

Parameters:

parameters

A vector of doubles containing the parameter values.

Reimplemented from BCModel.

Definition at line 171 of file BCHistogramFitter.cxx.

{
   // initialize probability
   double loglikelihood = 0;

   // set the parameters of the function
   fFitFunction -> SetParameters(&params[0]);

   // get the number of bins
   int nbins = fHistogram -> GetNbinsX();

   // get bin width
   double dx = fHistogram -> GetBinWidth(1);

   // get function value of lower bin edge
   double fedgelow = fFitFunction -> Eval(fHistogram -> GetBinLowEdge(1));

   // loop over all bins
   for (int ibin = 1; ibin <= nbins; ++ibin) {
      // get upper bin edge
      double xedgehi = fHistogram -> GetBinLowEdge(ibin) + dx;

      // get function value at upper bin edge
      double fedgehi = fFitFunction -> Eval(xedgehi);

      // get the number of observed events
      double y = fHistogram -> GetBinContent(ibin);

      double yexp = 0.;

      // use ROOT's TH1D::Integral method
      if (fFlagIntegration)
         yexp = fFitFunction -> Integral(xedgehi - dx, xedgehi);

      // use linear interpolation
      else {
         yexp = fedgelow * dx + (fedgehi - fedgelow) * dx / 2.;

         // make the upper edge the lower edge for the next iteration
         fedgelow = fedgehi;
      }

      // get the value of the Poisson distribution
      loglikelihood += BCMath::LogPoisson(y, yexp);
   }

   // // get bin boundaries
   // double xmin = fHistogram -> GetBinLowEdge(ibin);
   // double xmax = fHistogram -> GetBinLowEdge(ibin+1);

   // // get the number of observed events
   // double y = fHistogram -> GetBinContent(ibin);

   // // get the number of expected events
   // double yexp = fFitFunction -> Integral(xmin, xmax);

   // // get the value of the Poisson distribution
   // loglikelihood += BCMath::LogPoisson(y, yexp);

   return loglikelihood;
}

double BCHistogramFitter::FitFunction	(	std::vector< double >	x,
		std::vector< double >	parameters
	)			[virtual]

Returns the y-value of the 1-dimensional fit function at an x and for a set of parameters.

Parameters:

	x	A vector with the x-value.
	parameters	A set of parameters.

Reimplemented from BCIntegrate.

Definition at line 235 of file BCHistogramFitter.cxx.

{
   // set the parameters of the function
   fFitFunction -> SetParameters(&params[0]);

   return fFitFunction -> Eval(x[0]) * fHistogram -> GetBinWidth(
         fHistogram -> FindBin(x[0]));
}

int BCHistogramFitter::Fit

(

)

[inline]

Performs the fit.

Returns:

An error code.

Definition at line 138 of file BCHistogramFitter.h.

         { return this -> Fit(fHistogram, fFitFunction); };

int BCHistogramFitter::Fit	(	TH1D *	hist,
		TF1 *	func
	)

Performs the fit.

Parameters:

	hist	The histogram (TH1D).
	func	The fit function.

Returns:

An error code.

Definition at line 247 of file BCHistogramFitter.cxx.

{
   // set histogram
   if (hist)
      this -> SetHistogram(hist);
   else {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::Fit() : Histogram not defined.");
      return 0;
   }

   // set function
   if (func)
      this -> SetFitFunction(func);
   else {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::Fit() : Fit function not defined.");
      return 0;
   }

   // perform marginalization
   this -> MarginalizeAll();

   // maximize posterior probability, using the best-fit values close
   // to the global maximum from the MCMC
   this -> FindModeMinuit(this -> GetBestFitParameters(), -1);

   // calculate the p-value using the fast MCMC algorithm
   double pvalue;
   if (this -> CalculatePValueFast(this -> GetBestFitParameters(), pvalue))
      fPValue = pvalue;
   else
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::Fit() : Could not use the fast p-value evaluation.");

   // print summary to screen
   this -> PrintShortFitSummary();

   // no error
   return 1;
}

void BCHistogramFitter::DrawFit	(	const char *	options = "",
		bool	flaglegend = false
	)

Draw the fit in the current pad.

Definition at line 291 of file BCHistogramFitter.cxx.

{
   if (!fHistogram) {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::DrawFit() : Histogram not defined.");
      return;
   }

   if (!fFitFunction) {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::DrawFit() : Fit function not defined.");
      return;
   }

   // check wheather options contain "same"
   TString opt = options;
   opt.ToLower();

   // if not same, draw the histogram first to get the axes
   if (!opt.Contains("same"))
      fHistogram -> Draw(opt.Data());

   // draw the error band as central 68% probability interval
   fErrorBand = this -> GetErrorBandGraph(0.16, 0.84);
   fErrorBand -> Draw("f same");

   // now draw the histogram again since it was covered by the band
   fHistogram -> Draw(TString::Format("%ssame", opt.Data()));

   // draw the fit function on top
   fGraphFitFunction
         = this -> GetFitFunctionGraph(this->GetBestFitParameters());
   fGraphFitFunction -> SetLineColor(kRed);
   fGraphFitFunction -> SetLineWidth(2);
   fGraphFitFunction -> Draw("l same");

   // draw legend
   if (flaglegend) {
      TLegend * legend = new TLegend(0.25, 0.75, 0.55, 0.95);
      legend -> SetBorderSize(0);
      legend -> SetFillColor(kWhite);
      legend -> AddEntry(fHistogram, "Data", "L");
      legend -> AddEntry(fGraphFitFunction, "Best fit", "L");
      legend -> AddEntry(fErrorBand, "Error band", "F");
      legend -> Draw();
   }

   gPad -> RedrawAxis();
}

int BCHistogramFitter::CalculatePValueFast	(	std::vector< double >	par,
		double &	pvalue
	)

Calculate the p-value using fast-MCMC.

Parameters:

	par	A set of parameter values
	pvalue	The pvalue

Returns:

An error code

Definition at line 342 of file BCHistogramFitter.cxx.

{
   // check size of parameter vector
   if (par.size() != this -> GetNParameters()) {
      BCLog::Out(
            BCLog::warning,
            BCLog::warning,
            "BCHistogramFitter::CalculatePValueFast() : Number of parameters is inconsistent.");
      return 0;
   }

   // check if histogram exists
   if (!fHistogram) {
      BCLog::Out(BCLog::warning, BCLog::warning,
            "BCHistogramFitter::CalculatePValueFast() : Histogram not defined.");
      return 0;
   }

   // define temporary variables
   int nbins = fHistogram -> GetNbinsX();

   std::vector<int> histogram;
   std::vector<double> expectation;
   histogram.assign(nbins, 0);
   expectation.assign(nbins, 0);

   double logp = 0;
   double logp_start = 0;
   int counter_pvalue = 0;

   // define starting distribution
   for (int ibin = 0; ibin < nbins; ++ibin) {
      // get bin boundaries
      double xmin = fHistogram -> GetBinLowEdge(ibin + 1);
      double xmax = fHistogram -> GetBinLowEdge(ibin + 2);

      // get the number of expected events
      double yexp = fFitFunction -> Integral(xmin, xmax);

      histogram[ibin] = int(yexp);
      expectation[ibin] = yexp;

      // calculate p;
      logp += BCMath::LogPoisson(double(int(yexp)), yexp);
      logp_start += BCMath::LogPoisson(fHistogram -> GetBinContent(ibin + 1),
            yexp);
   }

   int niter = 100000;

   // loop over iterations
   for (int iiter = 0; iiter < niter; ++iiter) {
      // loop over bins
      for (int ibin = 0; ibin < nbins; ++ibin) {
         // random step up or down in statistics for this bin
         double ptest = fRandom -> Rndm() - 0.5;

         // increase statistics by 1
         if (ptest > 0) {
            // calculate factor of probability
            double r = expectation.at(ibin) / double(histogram.at(ibin) + 1);

            // walk, or don't (this is the Metropolis part)
            if (fRandom -> Rndm() < r) {
               histogram[ibin] = histogram.at(ibin) + 1;
               logp += log(r);
            }
         }

         // decrease statistics by 1
         else if (ptest <= 0 && histogram[ibin] > 0) {
            // calculate factor of probability
            double r = double(histogram.at(ibin)) / expectation.at(ibin);

            // walk, or don't (this is the Metropolis part)
            if (fRandom -> Rndm() < r) {
               histogram[ibin] = histogram.at(ibin) - 1;
               logp += log(r);
            }
         }
         // debugKK
         //   std::cout << " negative " << std::endl;

      } // end of looping over bins

      // increase counter
      if (logp < logp_start)
         counter_pvalue++;

   } // end of looping over iterations

   // calculate p-value
   pvalue = double(counter_pvalue) / double(niter);

   // no error
   return 1;
}

int BCHistogramFitter::CalculatePValueLikelihood	(	std::vector< double >	par,
		double &	pvalue
	)

Calculate the p-value using approximate chi^2 distribution of scaled likelihood. Approximation is valid for bin contents >5, see eq. (32.12), PDG: Statistics, Monte Carlo, Group Theory. Physics Letters B 667, 316-339(2008).

Parameters:

	par	The set of parameter values used in the model, usually the best fit parameters
	pvalue	The pvalue

Returns:

An error code

Definition at line 441 of file BCHistogramFitter.cxx.

{
   // initialize test statistic -2*lambda
   double logLambda = 0.0;

   // set the parameters of the function
   fFitFunction -> SetParameters(&par[0]);

   // get the number of bins
   int nbins = fHistogram -> GetNbinsX();

   // get bin width
   double dx = fHistogram -> GetBinWidth(1);

   // get function value of lower bin edge
   double fedgelow = fFitFunction -> Eval(fHistogram -> GetBinLowEdge(1));

   // loop over all bins, skip underflow
   for (int ibin = 1; ibin <= nbins; ++ibin) {
      // get upper bin edge
      double xedgehi = fHistogram -> GetBinLowEdge(ibin) + dx;

      // get function value at upper bin edge
      double fedgehi = fFitFunction -> Eval(xedgehi);

      // get the number of observed events
      double y = fHistogram -> GetBinContent(ibin);

      double yexp = 0.;

      // use ROOT's TH1D::Integral method
      if (fFlagIntegration)
         yexp = fFitFunction -> Integral(xedgehi - dx, xedgehi);

      // use linear interpolation
      else {
         yexp = fedgelow * dx + (fedgehi - fedgelow) * dx / 2.;

         // make the upper edge the lower edge for the next iteration
         fedgelow = fedgehi;
      }

      // get the contribution from this datapoint
      if (y == 0)
         logLambda += yexp;
      else
         logLambda += yexp - y + y * log(y / yexp);
   }

   // rescale
   logLambda *= 2.0;

   // compute degrees of freedom for Poisson case
   int nDoF = this->GetNDataPoints() - this->GetNParameters();

   //p value from chi^2 distribution, returns zero if logLambda < 0
   fPValueNDoF = TMath::Prob(logLambda, nDoF);
   pvalue = fPValueNDoF;

   // no error
   return 1;
}

int BCHistogramFitter::CalculatePValueLeastSquares	(	std::vector< double >	par,
		double &	pvalue,
		bool	weightExpect = true
	)

Calculate the p-value using approximate chi^2 distribution of squared difference for conventional weights. Approximation is valid for bin contents >5 and not as as good for little data as CalculatePValueLikelihood, see eq. (32.13), PDG: Statistics, Monte Carlo, Group Theory. Physics Letters B 667, 316-339(2008).

Parameters:

	par	The set of parameter values used in the model, usually the best fit parameters
	pvalue	The pvalue
	weight	use the variance from the expected counts (true) or the measured counts (false)

Returns:

An error code

Definition at line 505 of file BCHistogramFitter.cxx.

{
   // initialize test statistic chi^2
   double chi2 = 0.0;

   // set the parameters of the function
   fFitFunction -> SetParameters(&par[0]);

   // get the number of bins
   int nbins = fHistogram -> GetNbinsX();

   // get bin width
   double dx = fHistogram -> GetBinWidth(1);

   // get function value of lower bin edge
   double fedgelow = fFitFunction -> Eval(fHistogram -> GetBinLowEdge(1));

   // loop over all bins, skip underflow
   for (int ibin = 1; ibin <= nbins; ++ibin) {
      // get upper bin edge
      double xedgehi = fHistogram -> GetBinLowEdge(ibin) + dx;

      // get function value at upper bin edge
      double fedgehi = fFitFunction -> Eval(xedgehi);

      // get the number of observed events
      double y = fHistogram -> GetBinContent(ibin);

      double yexp = 0.;

      // use ROOT's TH1D::Integral method
      if (fFlagIntegration)
         yexp = fFitFunction -> Integral(xedgehi - dx, xedgehi);

      // use linear interpolation
      else {
         yexp = fedgelow * dx + (fedgehi - fedgelow) * dx / 2.;

         // make the upper edge the lower edge for the next iteration
         fedgelow = fedgehi;
      }

      //convert 1/0.0 into 1 for weighted sum
      double weight;
      if (weightExpect)
         weight = (yexp > 0) ? yexp : 1.0;
      else
         weight = (y > 0) ? y : 1.0;

      // get the contribution from this datapoint
      chi2 += (y - yexp) * (y - yexp) / weight;
   }

   // compute degrees of freedom for Poisson case
   int nDoF = this->GetNDataPoints() - this->GetNParameters();

   // p value from chi^2 distribution, returns zero if logLambda < 0
   fPValueNDoF = TMath::Prob(chi2, nDoF);
   pvalue = fPValueNDoF;

   // no error
   return 1;
}

double BCHistogramFitter::CDF	(	const std::vector< double > &	parameters,
		int	index,
		bool	lower = false
	)			[virtual]

1dim cumulative distribution function of the probability to get the data f(x|param) for a single measurement, assumed to be identical for all measurements

Parameters:

	parameters	The parameter values at which point to compute the cdf
	index	The data point index starting at 0,1...N-1
	lower	only needed for discrete distributions! Return the CDF for the count one less than actually observed, e.g. in Poisson process, if 3 actually observed, then CDF(2) is returned

Reimplemented from BCModel.

Definition at line 570 of file BCHistogramFitter.cxx.

{

   if (parameters.empty())
      BCLog::OutWarning("BCHistogramFitter::CDF: parameter vector empty!");
   //histogram stores underflow in bin 0, so datapoint 0 is in bin 1
   index++;

   // get the number of observed events (should be integer)
   double yObs = fHistogram -> GetBinContent(index);

   // if(double( (unsigned int)yObs)==yObs)
   //    BCLog::OutWarning(Form(
   //          "BCHistogramFitter::CDF: using bin count %f that  is not an integer!",yObs));

   // get function value of lower bin edge
   double edgeLow = fHistogram -> GetBinLowEdge(index);
   double edgeHigh = edgeLow + fHistogram -> GetBinWidth(index);

   // expectation value of this bin
   double yExp = 0.0;

   // use ROOT's TH1D::Integral method
   if (fFlagIntegration)
      yExp = fFitFunction -> Integral(edgeLow, edgeHigh, &parameters[0]);

   // use linear interpolation
   else {
      double dx = fHistogram -> GetBinWidth(index);
      double fEdgeLow = fFitFunction -> Eval(edgeLow);
      double fEdgeHigh = fFitFunction -> Eval(edgeHigh);
      yExp = fEdgeLow * dx + (fEdgeHigh - fEdgeLow) * dx / 2.;
   }

   // usually Poisson bins do not agree with fixed probability bins
   // so choose where it should belong

   if (lower) {
      if ((int) yObs >= 1)
         return ROOT::Math::poisson_cdf((unsigned int) (yObs - 1), yExp);
      else
         return 0.0;
   }
   // what if yObs as double doesn't reprepsent a whole number? exceptioN?
   if ((double) (unsigned int) yObs != yObs){
      BCLog::OutWarning(Form(
            "BCHistogramFitter::CDF: Histogram values should be integer!\n"
               " Bin %d = %f", index, yObs));

      //convert randomly to integer
      // ex. yObs = 9.785 =>
//      yObs --> 10 with P = 78.5%
//      yObs --> 9  with P = 21.5%
      double U = fRandom -> Rndm() ;
      double yObsLower = (unsigned int)yObs;
      if( U > (yObs - yObsLower) )
         yObs = yObsLower;
      else
         yObs = yObsLower + 1;
   }

// BCLog::OutDebug(Form("yExp= %f yObs= %f par2=%",yExp, yObs,parameters.at(2)));
// BCLog::Out(TString::Format("yExp= %f yObs= %f par2=%",yExp, yObs,parameters.at(2)));

return ROOT::Math::poisson_cdf(yObs, yExp);
}

---

Member Data Documentation

TH1D* BCHistogramFitter::fHistogram [private]

The histogram containing the data.

Definition at line 189 of file BCHistogramFitter.h.

TF1* BCHistogramFitter::fFitFunction [private]

The fit function

Definition at line 193 of file BCHistogramFitter.h.

bool BCHistogramFitter::fFlagIntegration [private]

Flag for using the ROOT TH1D::Integral method (true), or linear interpolation (false)

Definition at line 198 of file BCHistogramFitter.h.

TGraph* BCHistogramFitter::fErrorBand [private]

Pointer to the error band (for legend)

Definition at line 202 of file BCHistogramFitter.h.

TGraph* BCHistogramFitter::fGraphFitFunction [private]

Pointer to a graph for displaying the fit function

Definition at line 206 of file BCHistogramFitter.h.

---

The documentation for this class was generated from the following files:

• BCHistogramFitter.h
• BCHistogramFitter.cxx

---
