BCGraphFitter Class Reference

A class for fitting graphs with functions. More...

#include <BCGraphFitter.h>

Inherits BCModel.

Inheritance diagram for BCGraphFitter:

Inheritance graph
[legend]

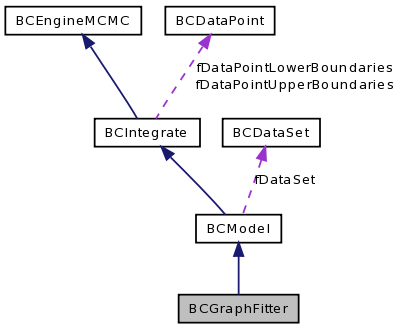

Collaboration diagram for BCGraphFitter:

Collaboration graph
[legend]
List of all members.

Public Member Functions

Member functions (get)
TGraphErrors * GetGraph ()
TF1 * GetFitFunction ()
TGraph * GetErrorBand ()
TGraph * GetGraphFitFunction ()
Member functions (set)
int SetGraph (TGraphErrors *graph)
int SetFitFunction (TF1 *func)
Member functions (miscellaneous methods)
double LogAPrioriProbability (std::vector< double > parameters)
double LogLikelihood (std::vector< double > parameters)
double FitFunction (std::vector< double > x, std::vector< double > parameters)
int Fit ()
int Fit (TGraphErrors *graph, TF1 *func)
void DrawFit (const char *options="", bool flaglegend=false)
virtual double CDF (std::vector< double > parameters, int index, bool lower=false)

Private Attributes

TGraphErrors * fGraph
TF1 * fFitFunction
TGraph * fErrorBand
TGraph * fGraphFitFunction

Detailed Description

A class for fitting graphs with functions.

Author:
Daniel Kollar

Kevin Kröninger

Version:
1.0
Date:
2008 This class allows fitting of a TGraphErrors using a TF1 function. It doeasn't take the x uncertainties into account. For that look at BCGraphXFitter (not yet implemented).

Definition at line 34 of file BCGraphFitter.h.

Constructor & Destructor Documentation

BCGraphFitter::BCGraphFitter (  )

Default constructor

Definition at line 26 of file BCGraphFitter.cxx.

00026                              : BCModel("GraphFitter")
00027 {
00028    fGraph = 0;
00029    fFitFunction = 0;
00030    fErrorBand = 0;
00031    fGraphFitFunction = 0;
00032
00033    this -> MCMCSetNIterationsRun(2000);
00034
00035    this -> SetFillErrorBand();
00036 }

BCGraphFitter::BCGraphFitter ( TGraphErrors *  graph,
TF1 *  func
)

Constructor

Parameters:
graph pointer to TGraphErrors
func pointer to TF1

Definition at line 40 of file BCGraphFitter.cxx.

00040                                                              : BCModel("GraphFitter")
00041 {
00042    fGraph = 0;
00043    fFitFunction = 0;
00044    fErrorBand = 0;
00045    fGraphFitFunction = 0;
00046
00047    this -> MCMCSetNIterationsRun(2000);
00048
00049    this -> SetGraph(graph);
00050    this -> SetFitFunction(func);
00051
00052    this -> SetFillErrorBand();
00053 }

BCGraphFitter::~BCGraphFitter (  )

The default destructor.

Definition at line 175 of file BCGraphFitter.cxx.

00176 {}

BCGraphFitter::BCGraphFitter (  )

Default constructor

Definition at line 26 of file BCGraphFitter.cxx.

00026                              : BCModel("GraphFitter")
00027 {
00028    fGraph = 0;
00029    fFitFunction = 0;
00030    fErrorBand = 0;
00031    fGraphFitFunction = 0;
00032
00033    this -> MCMCSetNIterationsRun(2000);
00034
00035    this -> SetFillErrorBand();
00036 }

BCGraphFitter::BCGraphFitter ( TGraphErrors *  graph,
TF1 *  func
)

Constructor

Parameters:
graph pointer to TGraphErrors
func pointer to TF1

Definition at line 40 of file BCGraphFitter.cxx.

00040                                                              : BCModel("GraphFitter")
00041 {
00042    fGraph = 0;
00043    fFitFunction = 0;
00044    fErrorBand = 0;
00045    fGraphFitFunction = 0;
00046
00047    this -> MCMCSetNIterationsRun(2000);
00048
00049    this -> SetGraph(graph);
00050    this -> SetFitFunction(func);
00051
00052    this -> SetFillErrorBand();
00053 }

BCGraphFitter::~BCGraphFitter (  )

The default destructor.

Definition at line 175 of file BCGraphFitter.cxx.

00176 {}

Member Function Documentation

TGraphErrors* BCGraphFitter::GetGraph (  )  [inline]

Returns:
pointer to TGraphErrors

Definition at line 62 of file BCGraphFitter.h.

00063          { return fGraph; };

TF1* BCGraphFitter::GetFitFunction (  )  [inline]

Returns:
pointer to TF1

Definition at line 67 of file BCGraphFitter.h.

00068          { return fFitFunction; };

TGraph* BCGraphFitter::GetErrorBand (  )  [inline]

Returns:
pointer to the error band

Definition at line 72 of file BCGraphFitter.h.

00073          { return fErrorBand; };

TGraph* BCGraphFitter::GetGraphFitFunction (  )  [inline]

Returns:
pointer to a graph for the fit function

Definition at line 77 of file BCGraphFitter.h.

00078          { return fGraphFitFunction; };

int BCGraphFitter::SetGraph ( TGraphErrors *  graph  )

Parameters:
graph pointer to TGraphErrors object

Definition at line 57 of file BCGraphFitter.cxx.

00058 {
00059    if(!graph)
00060    {
00061       BCLog::Out(BCLog::error,BCLog::error,"BCGraphFitter::SetGraph() : TGraphErrors not created.");
00062       return 0;
00063    }
00064
00065    int npoints = graph -> GetN();
00066    if(!npoints)
00067    {
00068       BCLog::Out(BCLog::error,BCLog::error,"BCGraphFitter::SetGraph() : TGraphErrors is empty.");
00069       return 0;
00070    }
00071    else if(npoints==1)
00072    {
00073       BCLog::Out(BCLog::error,BCLog::error,"BCGraphFitter::SetGraph() : TGraphErrors has only one point. Not able to fit.");
00074       return 0;
00075    }
00076
00077    fGraph = graph;
00078
00079    double * x = fGraph -> GetX();
00080    double * y = fGraph -> GetY();
00081    double * ex = fGraph -> GetEX();
00082    double * ey = fGraph -> GetEY();
00083
00084    if(!ey)
00085    {
00086       BCLog::Out(BCLog::error,BCLog::error,"BCGraphFitter::SetGraph() : TGraphErrors has NO errors set on Y. Not able to fit.");
00087       return 0;
00088    }
00089
00090    BCDataSet * ds = new BCDataSet();
00091
00092    // fill the dataset
00093    // find x and y boundaries for the error band calculation
00094    double xmin=x[0];
00095    double xmax=x[0];
00096    double ymin=y[0];
00097    double ymax=y[0];
00098    for (int i = 0; i < npoints; ++i)
00099    {
00100       // if x errors are not set, set them to zero
00101       double errx = ex ? ex[i] : 0.;
00102
00103       // create the data point
00104       BCDataPoint * dp = new BCDataPoint(4);
00105       dp -> SetValue(0, x[i]);
00106       dp -> SetValue(1, y[i]);
00107       dp -> SetValue(2, errx);
00108       dp -> SetValue(3, ey[i]);
00109       ds -> AddDataPoint(dp);
00110
00111       if(x[i]-errx < xmin)
00112          xmin = x[i]-errx;
00113       else if(x[i]+errx > xmax)
00114          xmax = x[i]+errx;
00115
00116       if(y[i] - 5.*ey[i] < ymin)
00117          ymin = y[i] - 5.*ey[i];
00118       else if(y[i] + 5.*ey[i] > ymax)
00119          ymax = y[i] + 5.*ey[i];
00120    }
00121
00122    this -> SetDataSet(ds);
00123
00124    // set boundaries for the error band calculation
00125    this -> SetDataBoundaries(0, xmin, xmax);
00126    this -> SetDataBoundaries(1, ymin, ymax);
00127
00128    this -> SetFitFunctionIndices(0, 1);
00129
00130    return this -> GetNDataPoints();
00131 }

int BCGraphFitter::SetFitFunction ( TF1 *  func  )

Parameters:
func pointer to TF1 object

Definition at line 135 of file BCGraphFitter.cxx.

00136 {
00137    if(!func)
00138    {
00139       BCLog::Out(BCLog::error,BCLog::error,"BCGraphFitter::SetFitFunction() : TF1 not created.");
00140       return 0;
00141    }
00142
00143    // get the new number of parameters
00144    int npar = func -> GetNpar();
00145    if(!npar)
00146    {
00147       BCLog::Out(BCLog::error,BCLog::error,"BCGraphFitter::SetFitFunction() : TF1 has zero parameters. Not able to fit.");
00148       return 0;
00149    }
00150
00151    // set the function
00152    fFitFunction = func;
00153
00154    // update the model name to contain the function name
00155    this -> SetName(TString::Format("GraphFitter with %s",fFitFunction->GetName()));
00156
00157    // reset parameters
00158    fParameterSet -> clear();
00159
00160    // add parameters
00161    for (int i = 0; i < npar; ++i)
00162    {
00163       double xmin;
00164       double xmax;
00165       fFitFunction -> GetParLimits(i, xmin, xmax);
00166
00167       this -> AddParameter(fFitFunction->GetParName(i), xmin, xmax);
00168    }
00169
00170    return this -> GetNParameters();
00171 }

double BCGraphFitter::LogAPrioriProbability ( std::vector< double >  parameters  )  [virtual]

The log of the prior probability. It is set to be flat in all parameters.

Parameters:
parameters vector containing the parameter values

Reimplemented from BCModel.

Definition at line 180 of file BCGraphFitter.cxx.

00181 {
00182    // using flat probability in all parameters
00183    double logprob = 0.;
00184    for(unsigned int i=0; i < this -> GetNParameters(); i++)
00185       logprob -= log(this -> GetParameter(i) -> GetRangeWidth());
00186
00187    return logprob;
00188 }

double BCGraphFitter::LogLikelihood ( std::vector< double >  parameters  )  [virtual]

The log of the conditional probability.

Parameters:
parameters vector containing the parameter values

Reimplemented from BCModel.

Definition at line 192 of file BCGraphFitter.cxx.

00193 {
00194    // initialize probability
00195    double logl = 0.;
00196
00197    // set the parameters of the function
00198    // passing the pointer to first element of the vector is
00199    // not completely safe as there might be an implementation where
00200    // the vector elements are not stored consecutively in memory.
00201    // however it is much faster than copying the contents, especially
00202    // for large number of parameters
00203    fFitFunction -> SetParameters(&params[0]);
00204
00205    // loop over all data points
00206    for (int i = 0; i < this -> GetNDataPoints(); i++)
00207    {
00208       std::vector <double> x = GetDataPoint(i) -> GetValues();
00209
00210       // her we ignore the errors on x even when they're available
00211       // i.e. we treat them just as the region specifiers
00212       double y = x[1];
00213       double yerr = x[3];
00214       double yexp = this -> FitFunction(x,params);
00215
00216       // calculate log of probability assuming
00217       // a Gaussian distribution for each point
00218       logl += BCMath::LogGaus(y, yexp, yerr, true);
00219    }
00220
00221    return logl;
00222 }

double BCGraphFitter::FitFunction ( std::vector< double >  x,
std::vector< double >  parameters
) [virtual]

Returns the value of the 1D fit function for a given set of parameters at a given x.

Parameters:
x point to calculate the function value at
parameters parameters of the function

Reimplemented from BCIntegrate.

Definition at line 226 of file BCGraphFitter.cxx.

00227 {
00228    // set the parameters of the function
00229    fFitFunction -> SetParameters(&params[0]);
00230
00231    return fFitFunction -> Eval(x[0]);
00232 }

int BCGraphFitter::Fit (  )  [inline]

Performs the fit. The graph and the function has to beset beforehand.

Returns:
An error code.

Definition at line 117 of file BCGraphFitter.h.

00118          { return this -> Fit(fGraph, fFitFunction); };

int BCGraphFitter::Fit ( TGraphErrors *  graph,
TF1 *  func
)

Performs the fit of the graph with the function.

Parameters:
graph pointer to TGraphErrors object
func pointer to TF1 object
Returns:
An error code.

Definition at line 236 of file BCGraphFitter.cxx.

00237 {
00238    // set graph
00239    if (!this -> SetGraph(graph))
00240       return 0;
00241
00242    // set function
00243    if (!this -> SetFitFunction(func))
00244       return 0;
00245
00246    // check setup
00247    BCLog::Out(BCLog::detail,BCLog::detail,
00248          Form("Fitting %d data points with function of %d parameters",GetNDataPoints(),GetNParameters()));
00249    if(GetNDataPoints() <= (int)GetNParameters())
00250    {
00251       BCLog::Out(BCLog::warning,BCLog::warning,
00252             Form("Number of parameters (%d) lower than or equal to number of points (%d)."
00253             , GetNParameters(), GetNDataPoints()));
00254       BCLog::Out(BCLog::warning,BCLog::warning,"Fit doesn't have much meaning.");
00255    }
00256
00257    // perform marginalization
00258    this -> MarginalizeAll();
00259
00260    // maximize posterior probability, using the best-fit values close
00261    // to the global maximum from the MCMC
00262    this -> FindModeMinuit( this -> GetBestFitParameters(), -1);
00263
00264    // calculate p-value from the chi2 probability
00265    // this is only valid for a product of gaussiang which is the case for
00266    // the BCGraphFitter
00267    this -> GetPvalueFromChi2(this -> GetBestFitParameters(), 3);
00268    this -> GetPvalueFromChi2NDoF(this -> GetBestFitParameters(), 3);
00269
00270    // print summary to screen
00271    this -> PrintShortFitSummary(1);
00272
00273    return 1;
00274 }

void BCGraphFitter::DrawFit ( const char *  options = "",
bool  flaglegend = false
)

Draw the fit in the current pad.

Definition at line 278 of file BCGraphFitter.cxx.

00279 {
00280    if (!fGraph)
00281    {
00282       BCLog::Out(BCLog::error, BCLog::error,"BCGraphFitter::DrawFit() : TGraphErrors not defined.");
00283       return;
00284    }
00285
00286    if (!fFitFunction)
00287    {
00288       BCLog::Out(BCLog::error, BCLog::error,"BCGraphFitter::DrawFit() : Fit function not defined.");
00289       return;
00290    }
00291
00292    // check wheather options contain "same"
00293    TString opt = options;
00294    opt.ToLower();
00295
00296    // if not same, draw the histogram first to get the axes
00297    if(!opt.Contains("same"))
00298       fGraph -> Draw("ap");
00299
00300    // draw the error band as central 68% probability interval
00301    fErrorBand = this -> GetErrorBandGraph(0.16, 0.84);
00302    fErrorBand -> Draw("f same");
00303
00304    // draw the fit function on top
00305    fGraphFitFunction = this -> GetFitFunctionGraph( this->GetBestFitParameters() );
00306    fGraphFitFunction -> SetLineColor(kRed);
00307    fGraphFitFunction -> SetLineWidth(2);
00308    fGraphFitFunction -> Draw("l same");
00309
00310    // now draw the histogram again since it was covered by the band and
00311    // the best fit
00312    fGraph -> Draw("p same");
00313
00314    // draw legend
00315    if (flaglegend)
00316    {
00317       TLegend * legend = new TLegend(0.25, 0.75, 0.55, 0.95);
00318       legend -> SetBorderSize(0);
00319       legend -> SetFillColor(kWhite);
00320       legend -> AddEntry(fGraph, "Data", "P");
00321       legend -> AddEntry(fGraphFitFunction, "Best fit", "L");
00322       legend -> AddEntry(fErrorBand, "Error band", "F");
00323       legend -> Draw();
00324    }
00325
00326    gPad -> RedrawAxis();
00327 }

double BCGraphFitter::CDF ( std::vector< double >  parameters,
int  index,
bool  lower = false
) [virtual]

Definition at line 329 of file BCGraphFitter.cxx.

00329                                                                               {
00330
00331    //format: x y error_x error_y
00332    std::vector<double> values = fDataSet->GetDataPoint(index)->GetValues();
00333
00334    if (values[2])
00335       BCLog::OutWarning("BCGraphFitter::CDF: Non-zero errors in x-direction are ignored!");
00336
00337    // get the observed value
00338    double yObs = values[1];
00339
00340    // expectation value
00341    double yExp = FitFunction(values, parameters);
00342
00343    return ROOT::Math::normal_cdf(yObs, values[3], yExp);
00344 }

Member Data Documentation

TGraphErrors* BCGraphFitter::fGraph [private]

The graph containing the data.

Definition at line 139 of file BCGraphFitter.h.

TF1* BCGraphFitter::fFitFunction [private]

The fit function

Definition at line 143 of file BCGraphFitter.h.

TGraph* BCGraphFitter::fErrorBand [private]

Pointer to the error band (for legend)

Definition at line 147 of file BCGraphFitter.h.

TGraph* BCGraphFitter::fGraphFitFunction [private]

Pointer to a graph for displaying the fit function

Definition at line 151 of file BCGraphFitter.h.

The documentation for this class was generated from the following files:
Generated on Thu Feb 11 11:29:34 2010 for BayesianAnalysisToolkit by  doxygen 1.5.1
