BCModelOutput Class Reference

#include <BCModelOutput.h>

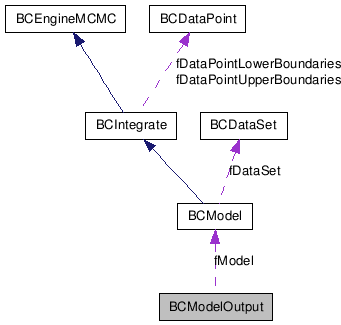

Collaboration diagram for BCModelOutput:

Collaboration graph
[legend]

List of all members.

Detailed Description

A class for creating an (ROOT) output file.

Author:
Daniel Kollar

Kevin Kröninger

Version:
1.0
Date:
08.2008 This class defines an output interface for the analysis. It creates a ROOT file which can contain summary information, histograms and Markov chains.

Definition at line 39 of file BCModelOutput.h.


Public Member Functions

Constructors and destructors


 BCModelOutput (const BCModelOutput &modeloutput)
 BCModelOutput (BCModel *model, const char *filenname)
 BCModelOutput ()
virtual ~BCModelOutput ()
Member functions (miscellaneous methods)


void Close ()
void FillAnalysisTree ()
void Write (TObject *o)
void WriteErrorBand ()
void WriteMarginalizedDistributions ()
void WriteMarkovChain (bool flag)
Getters


TTree * GetAnalysisTree ()
TFile * GetFile ()
Assignment operators


BCModelOutput & operator= (const BCModelOutput &modeloutput)
Setters


void SetFile (const char *filename)
void SetModel (BCModel *model)

Private Member Functions

void Copy (BCModelOutput &modeloutput) const
void InitializeAnalysisTree ()
void InitializeMarkovChainTrees ()

Private Attributes

TTree * fAnalysisTree
const char * fFilename
int fIndex
std::vector< int > * fIteration
std::vector< double > * fLogLikelihood
TTree * fMarkovChainTree
std::vector< TTree * > fMarkovChainTrees
double fMean_marginalized [MAXNPARAMETERS]
double fMedian_marginalized [MAXNPARAMETERS]
double fMode_global [MAXNPARAMETERS]
double fMode_marginalized [MAXNPARAMETERS]
BCModel * fModel
unsigned int fNParameters
TFile * fOutputFile
std::vector< double > * fParameters
double fProbability_aposteriori
double fProbability_apriori
double fQuantile_05 [MAXNPARAMETERS]
double fQuantile_10 [MAXNPARAMETERS]
double fQuantile_16 [MAXNPARAMETERS]
double fQuantile_84 [MAXNPARAMETERS]
double fQuantile_90 [MAXNPARAMETERS]
double fQuantile_95 [MAXNPARAMETERS]

Constructor & Destructor Documentation

BCModelOutput::BCModelOutput (  )

The default constructor.

Definition at line 27 of file BCModelOutput.cxx.

00028 {
00029    fIndex = 0;
00030
00031    fOutputFile = 0;
00032    fMarkovChainTree = 0;
00033    fAnalysisTree = 0;
00034    fModel = 0;
00035    fOutputFile = 0;
00036 }

BCModelOutput::BCModelOutput ( BCModel *  model,
const char *  filenname
)

A constructor.

Parameters:
model The model to which this output class is assigned.
filename Name of the output file.

Definition at line 40 of file BCModelOutput.cxx.

00041 {
00042    // remeber current directory
00043    TDirectory * dir = gDirectory;
00044    fFilename = filename;
00045
00046    // create a new file
00047    fOutputFile = new TFile(fFilename, "RECREATE");
00048
00049    BCModelOutput();
00050    fModel = model;
00051
00052    fModel -> MCMCInitialize();
00053
00054    // initialize trees
00055    this -> InitializeAnalysisTree();
00056    this -> InitializeMarkovChainTrees();
00057
00058    // change again to the old directory
00059    gDirectory = dir;
00060 }

BCModelOutput::BCModelOutput ( const BCModelOutput &  modeloutput  )

The default copy constructor.

Definition at line 86 of file BCModelOutput.cxx.

00087 {
00088    modeloutput.Copy(* this);
00089 }

BCModelOutput::~BCModelOutput (  )  [virtual]

The default destructor.

Definition at line 64 of file BCModelOutput.cxx.

00065 {
00066    if (fOutputFile)
00067    {
00068       fOutputFile -> Close();
00069       delete fOutputFile;
00070    }
00071
00072    if (fAnalysisTree)
00073       delete fAnalysisTree;
00074
00075    if (fMarkovChainTree)
00076       delete fMarkovChainTree;
00077
00078    if (fOutputFile)
00079       delete fOutputFile;
00080
00081    fModel = 0;
00082 }

Member Function Documentation

void BCModelOutput::Close (  )

Closes the TFile.

Definition at line 245 of file BCModelOutput.cxx.

00246 {
00247    // remember current directory
00248    TDirectory * dir = gDirectory;
00249
00250    // change to file
00251    fOutputFile -> cd();
00252
00253    // write analysis tree to file
00254    if (fAnalysisTree -> GetEntries() > 0)
00255       fAnalysisTree -> Write();
00256
00257    // write markov chain tree to file
00258    for (int i = 0; i < fModel -> MCMCGetNChains(); ++i)
00259       if (fMarkovChainTrees[i] -> GetEntries() > 0)
00260          fMarkovChainTrees[i] -> Write();
00261
00262    // write control plots to file
00263
00264    // if (fModel -> MCMCGetH1RValue())
00265    //   fModel -> MCMCGetH1RValue() -> Write();
00266
00267    // if (fModel -> MCMCGetH1Efficiency())
00268    //   fModel -> MCMCGetH1Efficiency() -> Write();
00269
00270    // close file
00271    fOutputFile -> Close();
00272
00273    // return to old directory
00274    gDirectory = dir;
00275 }

void BCModelOutput::Copy ( BCModelOutput &  modeloutput  )  const [private]

Definition at line 340 of file BCModelOutput.cxx.

00341 {
00342    // don't copy the content
00343    modeloutput.fModel           = this -> fModel;
00344    modeloutput.fAnalysisTree    = this -> fAnalysisTree;
00345    modeloutput.fMarkovChainTree = this -> fMarkovChainTree;
00346 }

void BCModelOutput::FillAnalysisTree (  )

Fill the output TTree with the current information.

Definition at line 135 of file BCModelOutput.cxx.

00136 {
00137    // get output values from model
00138    fNParameters = fModel -> GetNParameters();
00139    fProbability_apriori   = fModel -> GetModelAPrioriProbability();
00140    fProbability_aposteriori = fModel -> GetModelAPosterioriProbability();
00141
00142    // loop over parameters
00143    int nparameters = fModel -> GetNParameters();
00144    for (int i = 0; i < nparameters; ++i)
00145    {
00146       BCParameter * parameter = fModel -> GetParameter(i);
00147       if (fModel -> GetBestFitParameters().size() > 0)
00148          fMode_global[i] = fModel -> GetBestFitParameters().at(i);
00149       if (fModel -> GetMarginalized(parameter -> GetName().data()))
00150       {
00151          fMode_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMode();
00152          fMean_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMean();
00153          fMedian_marginalized[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetMedian();
00154          fQuantile_05[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.05);
00155          fQuantile_10[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.10);
00156          fQuantile_16[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.16);
00157          fQuantile_84[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.84);
00158          fQuantile_90[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.90);
00159          fQuantile_95[i] = fModel -> GetMarginalized(parameter -> GetName().data()) -> GetQuantile(0.95);
00160       }
00161    }
00162
00163    // fill tree
00164    fAnalysisTree -> Fill();
00165
00166    // increase index
00167    fIndex++;
00168 }

TTree* BCModelOutput::GetAnalysisTree (  )  [inline]

Returns the output TTree tree.

Returns:
The pointer to the output TTree

Definition at line 81 of file BCModelOutput.h.

00082          { return fAnalysisTree; };

TFile* BCModelOutput::GetFile (  )  [inline]

Returns the output TFile.

Returns:
The pointer to the output TFile

Definition at line 87 of file BCModelOutput.h.

00088          { return fOutputFile; };

void BCModelOutput::InitializeAnalysisTree (  )  [private]

Initialize the output TTree.

Definition at line 279 of file BCModelOutput.cxx.

00280 {
00281    // create new tree
00282    fAnalysisTree = new TTree("AnalysisTree", "AnalysisTree");
00283
00284    // set branch addresses
00285    fAnalysisTree -> Branch("fIndex",                   &fIndex,                   "index/I");
00286    fAnalysisTree -> Branch("fNParameters",             &fNParameters,             "parameters/I");
00287    fAnalysisTree -> Branch("fProbability_apriori" ,    &fProbability_apriori,     "apriori probability/D");
00288    fAnalysisTree -> Branch("fProbability_aposteriori", &fProbability_aposteriori, "aposteriori probability/D");
00289    fAnalysisTree -> Branch("fMode_global",              fMode_global,             "mode (global) [parameters]/D");
00290    fAnalysisTree -> Branch("fMode_marginalized",        fMode_marginalized,       "mode (marginalized) [parameters]/D");
00291    fAnalysisTree -> Branch("fMean_marginalized",        fMean_marginalized,       "mean (marginalized)[parameters]/D");
00292    fAnalysisTree -> Branch("fMedian_marginalized",      fMedian_marginalized,     "median (marginalized)[parameters]/D");
00293    fAnalysisTree -> Branch("fQuantile_05" ,             fQuantile_05,             "quantile 5% [parameters]/D");
00294    fAnalysisTree -> Branch("fQuantile_10" ,             fQuantile_10,             "quantile 10% [parameters]/D");
00295    fAnalysisTree -> Branch("fQuantile_16" ,             fQuantile_16,             "quantile 16% [parameters]/D");
00296    fAnalysisTree -> Branch("fQuantile_84" ,             fQuantile_84,             "quantile 84% [parameters]/D");
00297    fAnalysisTree -> Branch("fQuantile_90" ,             fQuantile_90,             "quantile 90% [parameters]/D");
00298    fAnalysisTree -> Branch("fQuantile_95" ,             fQuantile_95,             "quantile 95% [parameters]/D");
00299 }

void BCModelOutput::InitializeMarkovChainTrees (  )  [private]

Initialize the Markov Chain TTree.

Definition at line 303 of file BCModelOutput.cxx.

00304 {
00305    // create new tree
00306    fMarkovChainTrees.clear();
00307    for (int i = 0; i < fModel -> MCMCGetNChains(); ++i)
00308    {
00309       TTree * tree = new TTree(TString::Format("MarkovChainTree_%i", i), "MarkovChainTree");
00310       fMarkovChainTrees.push_back(tree);
00311    }
00312
00313    // connect pointer to parameter vectors
00314    fParameters    = fModel -> MCMCGetP2x();
00315    fIteration     = fModel -> MCMCGetP2NIterations();
00316    fLogLikelihood = fModel -> MCMCGetP2LogProbx();
00317    fNParameters   = fModel -> MCMCGetNParameters();
00318
00319    for (int i = 0; i < fModel -> MCMCGetNChains(); ++i)
00320    {
00321       fMarkovChainTrees[i] -> Branch("fIteration",      &(*fIteration)[i],   "iteration/I");
00322       fMarkovChainTrees[i] -> Branch("fNParameters",    &fNParameters,       "parameters/I");
00323       fMarkovChainTrees[i] -> Branch("fLogLikelihood",  &(*fLogLikelihood)[i], "log (likelihood)/D");
00324    }
00325
00326    // loop over all parameters
00327    for (int i = 0; i < fModel -> MCMCGetNChains(); ++i)
00328       for (int j = 0; j <  fModel -> MCMCGetNParameters(); ++j)
00329       {
00330          fMarkovChainTrees[i] -> Branch(TString::Format("fParameter%i", j),
00331                &(*fParameters)[i * fModel -> MCMCGetNParameters() + j],
00332                TString::Format("parameter %i/D", j));
00333       }
00334
00335    fModel -> MCMCSetMarkovChainTrees(fMarkovChainTrees);
00336 }

BCModelOutput & BCModelOutput::operator= ( const BCModelOutput &  modeloutput  )

The defaut assignment operator

Definition at line 93 of file BCModelOutput.cxx.

00094 {
00095    if (this != &modeloutput)
00096       modeloutput.Copy(* this);
00097
00098    return * this;
00099 }

void BCModelOutput::SetFile ( const char *  filename  )

Sets the output filename.

Parameters:
filename The filename

Definition at line 103 of file BCModelOutput.cxx.

00104 {
00105    // delete the old file
00106    if (fOutputFile)
00107    {
00108       fOutputFile -> Close();
00109       delete fOutputFile;
00110    }
00111
00112    // remember current directory
00113    TDirectory * dir = gDirectory;
00114
00115    // create a new file
00116    fOutputFile = new TFile(fFilename, "RECREATE");
00117
00118    // change back to the old directory
00119    gDirectory = dir;
00120
00121    // initialize tree
00122    this -> InitializeAnalysisTree();
00123 }

void BCModelOutput::SetModel ( BCModel *  model  )  [inline]

Assign a BCModel to this output class.

Parameters:
model A pointer to the BCModel

Definition at line 98 of file BCModelOutput.h.

00099          { fModel = model; };

void BCModelOutput::Write ( TObject *  o  )

Writes any object derived from TObject to TFile.

Definition at line 229 of file BCModelOutput.cxx.

00230 {
00231    // remember current directory
00232    TDirectory * dir = gDirectory;
00233
00234    // change to file
00235    fOutputFile -> cd();
00236
00237    o -> Write();
00238
00239    // return to old directory
00240    gDirectory = dir;
00241 }

void BCModelOutput::WriteErrorBand (  )

Writes the error band histogram into the TFile.

Definition at line 196 of file BCModelOutput.cxx.

00197 {
00198    // remember current directory
00199    TDirectory * dir = gDirectory;
00200
00201    // change to file
00202    fOutputFile -> cd();
00203
00204    TH2D * h0 = fModel -> GetErrorBandXY();
00205    if (h0)
00206    {
00207       TH2D * h1 = (TH2D*)h0 -> Clone("errorbandxy");
00208       h1 -> Write();
00209
00210       double levels[] = { .68, .90, .95 };
00211       int nlevels = sizeof(levels)/sizeof(double);
00212       for (int i=0;i<nlevels;i++)
00213       {
00214          TH2D * htmp = fModel -> GetErrorBandXY_yellow(levels[i]);
00215          htmp -> SetName(TString::Format("%s_sub_%f.2",h1->GetName(),levels[i]));
00216          htmp -> Write();
00217          delete htmp;
00218       }
00219
00220       delete h1;
00221    }
00222
00223    // return to old directory
00224    gDirectory = dir;
00225 }

void BCModelOutput::WriteMarginalizedDistributions (  )

Writes the marginalized histograms to the TFile.

Definition at line 172 of file BCModelOutput.cxx.

00173 {
00174    // remember current directory
00175    TDirectory * dir = gDirectory;
00176
00177    // change to file
00178    fOutputFile -> cd();
00179
00180    int nparameters = fModel -> GetNParameters();
00181    for (int i = 0; i < nparameters; ++i)
00182       fModel -> GetMarginalized(fModel -> GetParameter(i)) -> GetHistogram() -> Write();
00183
00184    if (nparameters > 1)
00185       for (int i = 0; i < nparameters - 1; ++i)
00186          for (int j = i + 1; j < nparameters; ++j)
00187             fModel -> GetMarginalized(fModel -> GetParameter(i),
00188                   fModel -> GetParameter(j)) -> GetHistogram() -> Write();
00189
00190    // return to old directory
00191    gDirectory = dir;
00192 }

void BCModelOutput::WriteMarkovChain ( bool  flag  )

Flag for writing Markov chain to file

Parameters:
flag Writes (true) or does not write (false) the Markov chain

Definition at line 127 of file BCModelOutput.cxx.

00128 {
00129    if (fModel)
00130       fModel -> WriteMarkovChain(flag);
00131 }

Member Data Documentation

TTree* BCModelOutput::fAnalysisTree [private]

Pointer to the TTree containing the summary output information.

Definition at line 154 of file BCModelOutput.h.

const char* BCModelOutput::fFilename [private]

The output filename

Definition at line 167 of file BCModelOutput.h.

int BCModelOutput::fIndex [private]

The analysis tree variables

Definition at line 179 of file BCModelOutput.h.

std::vector<int>* BCModelOutput::fIteration [private]

Definition at line 198 of file BCModelOutput.h.

std::vector<double>* BCModelOutput::fLogLikelihood [private]

Definition at line 197 of file BCModelOutput.h.

TTree* BCModelOutput::fMarkovChainTree [private]

Pointer to the TTree containing the Markov chain.

Definition at line 158 of file BCModelOutput.h.

std::vector<TTree *> BCModelOutput::fMarkovChainTrees [private]

Definition at line 163 of file BCModelOutput.h.

double BCModelOutput::fMean_marginalized[MAXNPARAMETERS] [private]

Definition at line 185 of file BCModelOutput.h.

double BCModelOutput::fMedian_marginalized[MAXNPARAMETERS] [private]

Definition at line 186 of file BCModelOutput.h.

double BCModelOutput::fMode_global[MAXNPARAMETERS] [private]

Definition at line 183 of file BCModelOutput.h.

double BCModelOutput::fMode_marginalized[MAXNPARAMETERS] [private]

Definition at line 184 of file BCModelOutput.h.

BCModel* BCModelOutput::fModel [private]

Pointer to the model this output class is assigned to

Definition at line 175 of file BCModelOutput.h.

unsigned int BCModelOutput::fNParameters [private]

Definition at line 180 of file BCModelOutput.h.

TFile* BCModelOutput::fOutputFile [private]

Pointer to the output TFile.

Definition at line 171 of file BCModelOutput.h.

std::vector<double>* BCModelOutput::fParameters [private]

The markov chain tree variables

Definition at line 196 of file BCModelOutput.h.

double BCModelOutput::fProbability_aposteriori [private]

Definition at line 182 of file BCModelOutput.h.

double BCModelOutput::fProbability_apriori [private]

Definition at line 181 of file BCModelOutput.h.

double BCModelOutput::fQuantile_05[MAXNPARAMETERS] [private]

Definition at line 187 of file BCModelOutput.h.

double BCModelOutput::fQuantile_10[MAXNPARAMETERS] [private]

Definition at line 188 of file BCModelOutput.h.

double BCModelOutput::fQuantile_16[MAXNPARAMETERS] [private]

Definition at line 189 of file BCModelOutput.h.

double BCModelOutput::fQuantile_84[MAXNPARAMETERS] [private]

Definition at line 190 of file BCModelOutput.h.

double BCModelOutput::fQuantile_90[MAXNPARAMETERS] [private]

Definition at line 191 of file BCModelOutput.h.

double BCModelOutput::fQuantile_95[MAXNPARAMETERS] [private]

Definition at line 192 of file BCModelOutput.h.

Generated on Fri Jan 16 10:24:11 2009 for BAT - Bayesian Analysis Toolkit by  doxygen 1.5.6
