BCModelOutput Class Reference

#include <BCModelOutput.h>

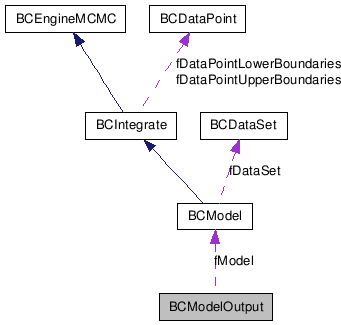

Collaboration diagram for BCModelOutput:

[legend]

List of all members.

---

Detailed Description

A class for creating an (ROOT) output file.

Author:

Daniel Kollar

Kevin Kröninger

Version:

1.0

Date:

08.2008 This class defines an output interface for the analysis. It creates a ROOT file which can contain summary information, histograms and Markov chains.

Definition at line 34 of file BCModelOutput.h.

Public Member Functions
Constructors and destructors
	BCModelOutput (const BCModelOutput &modeloutput)
	BCModelOutput (BCModel *model, const char *filenname)
	BCModelOutput ()
virtual	~BCModelOutput ()
Member functions (miscellaneous methods)
void	Close ()
void	FillAnalysisTree ()
void	WriteMarginalizedDistributions ()
void	WriteMarkovChain (bool flag)
Getters
TTree *	GetAnalysisTree ()
TFile *	GetFile ()
Assignment operators
BCModelOutput &	operator= (const BCModelOutput &modeloutput)
Setters
void	SetFile (const char *filename)
void	SetModel (BCModel *model)
Private Member Functions
void	Copy (BCModelOutput &modeloutput) const
void	InitializeAnalysisTree ()
void	InitializeMarkovChainTrees ()
Private Attributes
TTree *	fAnalysisTree
const char *	fFilename
int	fIndex
std::vector< int > *	fIteration
std::vector< double > *	fLogLikelihood
TTree *	fMarkovChainTree
std::vector< TTree * >	fMarkovChainTrees
double	fMean_marginalized [MAXNPARAMETERS]
double	fMedian_marginalized [MAXNPARAMETERS]
double	fMode_global [MAXNPARAMETERS]
double	fMode_marginalized [MAXNPARAMETERS]
BCModel *	fModel
int	fNParameters
TFile *	fOutputFile
std::vector< double > *	fParameters
double	fProbability_aposteriori
double	fProbability_apriori
double	fQuantile_05 [MAXNPARAMETERS]
double	fQuantile_10 [MAXNPARAMETERS]
double	fQuantile_16 [MAXNPARAMETERS]
double	fQuantile_84 [MAXNPARAMETERS]
double	fQuantile_90 [MAXNPARAMETERS]
double	fQuantile_95 [MAXNPARAMETERS]

---

Constructor & Destructor Documentation

BCModelOutput::BCModelOutput

(

)

The default constructor.

Definition at line 16 of file BCModelOutput.cxx.

BCModelOutput::BCModelOutput	(	BCModel *	model,
		const char *	filenname
	)

A constructor.

Parameters:

	model	The model to which this output class is assigned.
	filename	Name of the output file.

Definition at line 31 of file BCModelOutput.cxx.

BCModelOutput::BCModelOutput

(

const BCModelOutput &

modeloutput

)

The default copy constructor.

Definition at line 87 of file BCModelOutput.cxx.

BCModelOutput::~BCModelOutput

(

)

[virtual]

The default destructor.

Definition at line 62 of file BCModelOutput.cxx.

---

Member Function Documentation

void BCModelOutput::Close

(

)

Closes the TFile.

Definition at line 224 of file BCModelOutput.cxx.

void BCModelOutput::Copy

(

BCModelOutput &

modeloutput

)

const [private]

Definition at line 338 of file BCModelOutput.cxx.

void BCModelOutput::FillAnalysisTree

(

)

Fill the output TTree with the current information.

Definition at line 150 of file BCModelOutput.cxx.

TTree* BCModelOutput::GetAnalysisTree

(

)

[inline]

Returns the output TTree tree.

Returns:

The pointer to the output TTree.

Definition at line 83 of file BCModelOutput.h.

TFile* BCModelOutput::GetFile

(

)

[inline]

Returns the output TFile.

Returns:

The pointer to the output TFile.

Definition at line 90 of file BCModelOutput.h.

void BCModelOutput::InitializeAnalysisTree

(

)

[private]

Initialize the output TTree.

Definition at line 266 of file BCModelOutput.cxx.

void BCModelOutput::InitializeMarkovChainTrees

(

)

[private]

Initialize the Markov Chain TTree.

Definition at line 294 of file BCModelOutput.cxx.

BCModelOutput & BCModelOutput::operator=

(

const BCModelOutput &

modeloutput

)

The defaut assignment operator

Definition at line 96 of file BCModelOutput.cxx.

void BCModelOutput::SetFile

(

const char *

filename

)

Sets the output filename.

Parameters:

filename

The filename.

Definition at line 108 of file BCModelOutput.cxx.

void BCModelOutput::SetModel

(

BCModel *

model

)

[inline]

Assign a BCModel to this output class.

Parameters:

model

A pointer to the BCModel.

Definition at line 102 of file BCModelOutput.h.

void BCModelOutput::WriteMarginalizedDistributions

(

)

Writes the marginalized histograms to the TFile.

Definition at line 196 of file BCModelOutput.cxx.

void BCModelOutput::WriteMarkovChain

(

bool

flag

)

Flag for writing Markov chain to file

Parameters:

flag

Writes (true) or does not write (false) the Markov chain

Definition at line 140 of file BCModelOutput.cxx.

---

Member Data Documentation

TTree* BCModelOutput::fAnalysisTree [private]

Pointer to the TTree containing the summary output information.

Definition at line 159 of file BCModelOutput.h.

const char* BCModelOutput::fFilename [private]

The output filename

Definition at line 175 of file BCModelOutput.h.

int BCModelOutput::fIndex [private]

The analysis tree variables

Definition at line 190 of file BCModelOutput.h.

std::vector<int>* BCModelOutput::fIteration [private]

Definition at line 210 of file BCModelOutput.h.

std::vector<double>* BCModelOutput::fLogLikelihood [private]

Definition at line 209 of file BCModelOutput.h.

TTree* BCModelOutput::fMarkovChainTree [private]

Pointer to the TTree containing the Markov chain.

Definition at line 164 of file BCModelOutput.h.

std::vector<TTree *> BCModelOutput::fMarkovChainTrees [private]

Definition at line 170 of file BCModelOutput.h.

double BCModelOutput::fMean_marginalized[MAXNPARAMETERS] [private]

Definition at line 196 of file BCModelOutput.h.

double BCModelOutput::fMedian_marginalized[MAXNPARAMETERS] [private]

Definition at line 197 of file BCModelOutput.h.

double BCModelOutput::fMode_global[MAXNPARAMETERS] [private]

Definition at line 194 of file BCModelOutput.h.

double BCModelOutput::fMode_marginalized[MAXNPARAMETERS] [private]

Definition at line 195 of file BCModelOutput.h.

BCModel* BCModelOutput::fModel [private]

Pointer to the model this output class is assigned to

Definition at line 185 of file BCModelOutput.h.

int BCModelOutput::fNParameters [private]

Definition at line 191 of file BCModelOutput.h.

TFile* BCModelOutput::fOutputFile [private]

Pointer to the output TFile.

Definition at line 180 of file BCModelOutput.h.

std::vector<double>* BCModelOutput::fParameters [private]

The markov chain tree variables

Definition at line 208 of file BCModelOutput.h.

double BCModelOutput::fProbability_aposteriori [private]

Definition at line 193 of file BCModelOutput.h.

double BCModelOutput::fProbability_apriori [private]

Definition at line 192 of file BCModelOutput.h.

double BCModelOutput::fQuantile_05[MAXNPARAMETERS] [private]

Definition at line 198 of file BCModelOutput.h.

double BCModelOutput::fQuantile_10[MAXNPARAMETERS] [private]

Definition at line 199 of file BCModelOutput.h.

double BCModelOutput::fQuantile_16[MAXNPARAMETERS] [private]

Definition at line 200 of file BCModelOutput.h.

double BCModelOutput::fQuantile_84[MAXNPARAMETERS] [private]

Definition at line 201 of file BCModelOutput.h.

double BCModelOutput::fQuantile_90[MAXNPARAMETERS] [private]

Definition at line 202 of file BCModelOutput.h.

double BCModelOutput::fQuantile_95[MAXNPARAMETERS] [private]

Definition at line 203 of file BCModelOutput.h.
